Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 User Manual

480

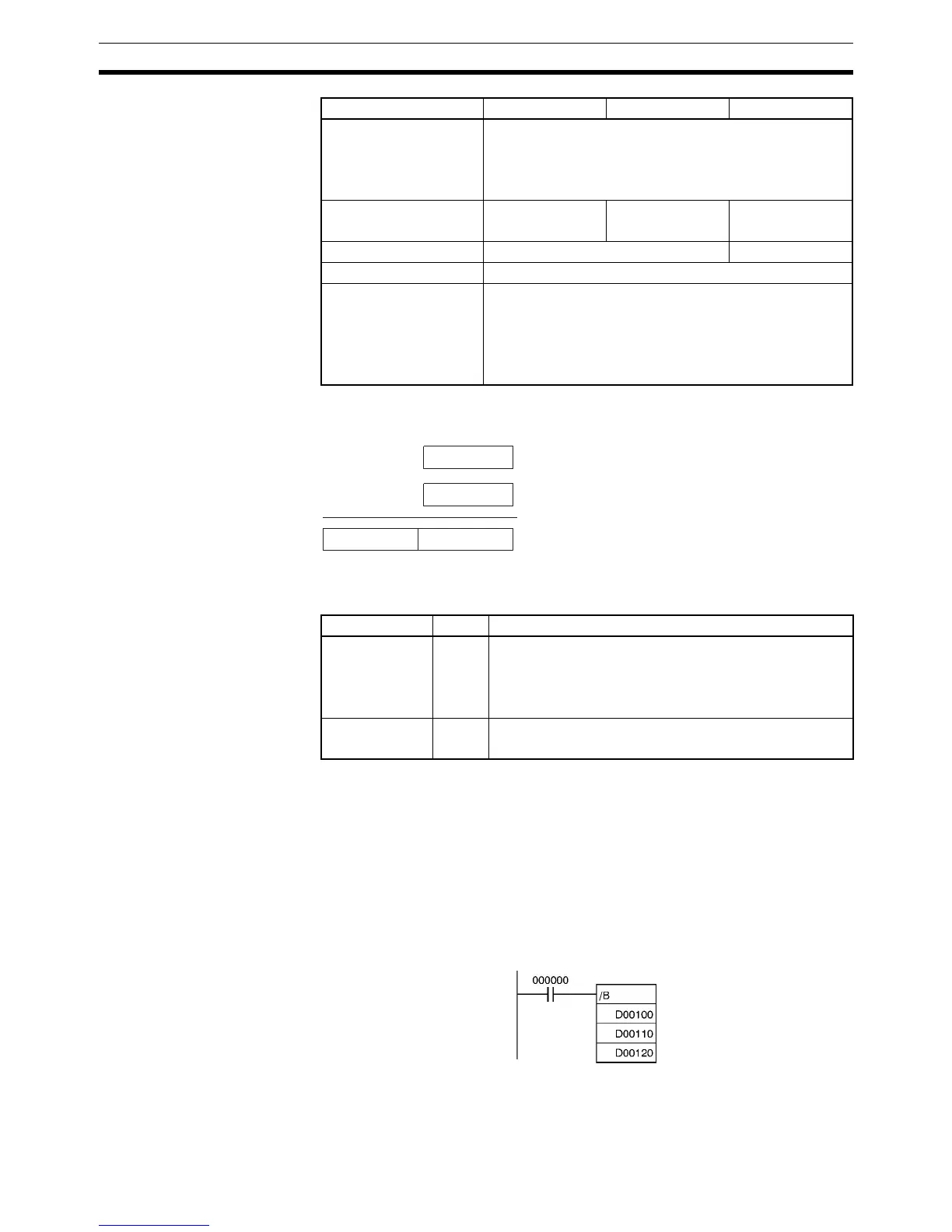

Symbol Math Instructions Section 3-11
Description /B(434) divides the BCD content of Dd by those of Dr and outputs the quotient
to R and the remainder to R+1.
Flags
Precautions If Dd or Dr are not BCD or if the remainder (R+1) is 0, an error will be gener-
ated and the Error Flag will turn ON.
If as a result of the division, the content of R is 0000 hex, the Equals Flag will
turn ON.
If as a result of the division, the leftmost bit of R is 1, the Negative Flag will
turn ON.
Examples When CIO 000000 is ON in the following example, D00100 will be divided by
D00110 as 4-digit BCD values and the quotient will be output to D00120 and
the remainder to D00120.
Example in Function Block Definition
In the following example, an array variable is used to get the quotient and
remainder from the function block.
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants #0000 to #9999
(BCD)
#0001 to #9999
(BCD)
---
Data Registers DR0 to DR15 ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area Dd Dr R
R +1 R
(BCD)
(BCD)
(BCD)
÷
Dd
Dr
Remainder Quotient
Name Label Operation
Error Flag ER ON when Dd is not BCD.
ON when Dr is not BCD.
ON when the remainder is 0.
OFF in all other cases.
Equals Flag = ON when R is 0.
OFF in all other cases.
