Conversion Instructions Section 3-12

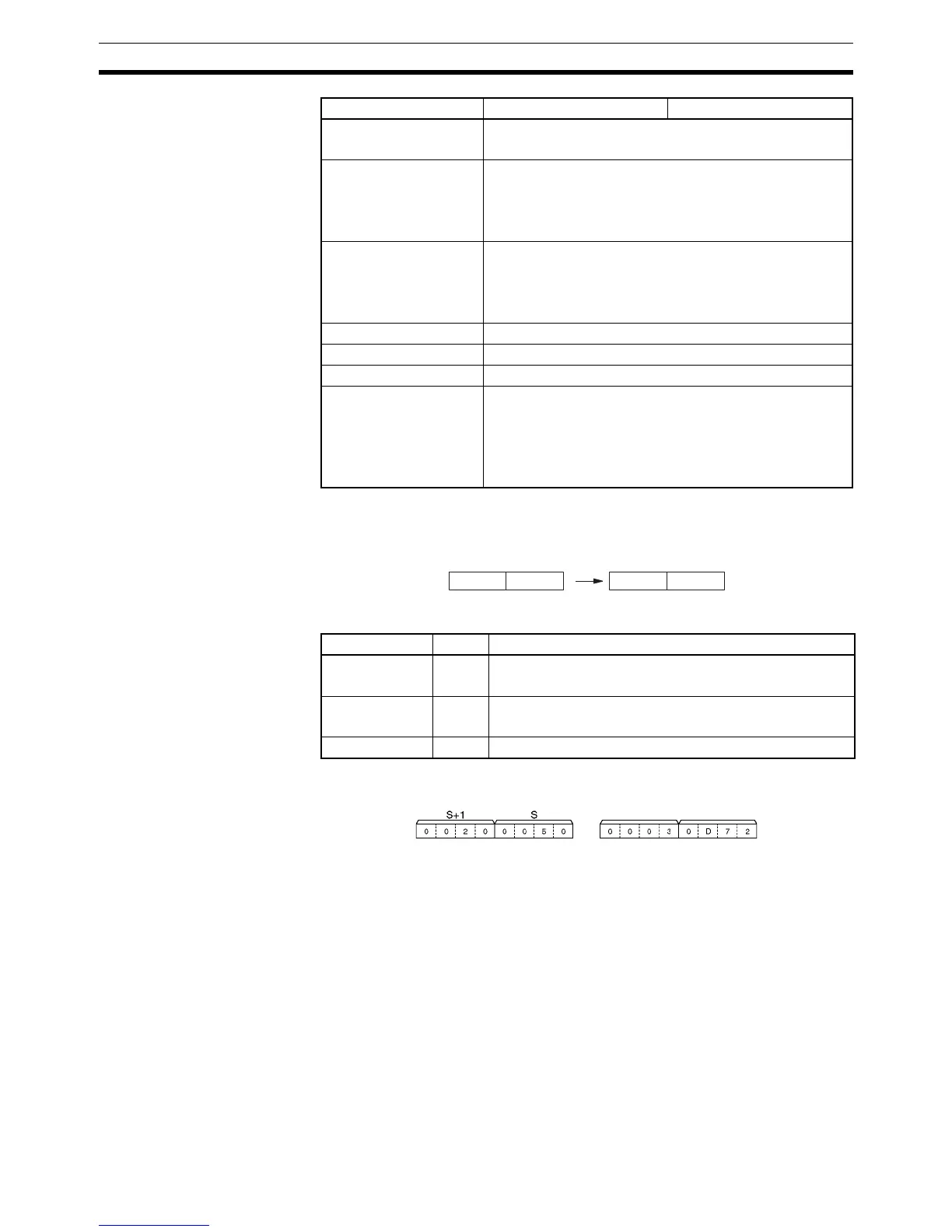

Description BINL(058) converts the 8-digit BCD data in S and S+1 to 8-digit hexadecimal
(32-bit binary) data and writes the result to R and R+1.
Flags
Examples The following diagram shows an example of 8-digit BCD-to-binary conversion.
When CIO 000000 is ON in the following example, the 8-digit BCD value in
CIO 0010 and CIO 0011 is converted to hexadecimal and stored in D00200
and D00201.
EM Area with bank En_00000 to En_32766
(n = 0 to C)
Indirect DM/EM
addresses in binary
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area S R
RR+1
(BCD)
(BCD)
S+1
S
(BIN) (BIN)
Name Label Operation
Error Flag ER ON if the contents of S+1, S are not BCD.
OFF in all other cases.
Equals Flag = ON if the result is 0.
OFF in all other cases.
Negative Flag N OFF
×10
3
×10
2
×10
1
×10
0
×16
3
×16
2
×16
1
×16
0
×10
7
×10
6
×10
5
×10
4
×16
7
×16
6
×16
5
×
16
4
R+1 R
