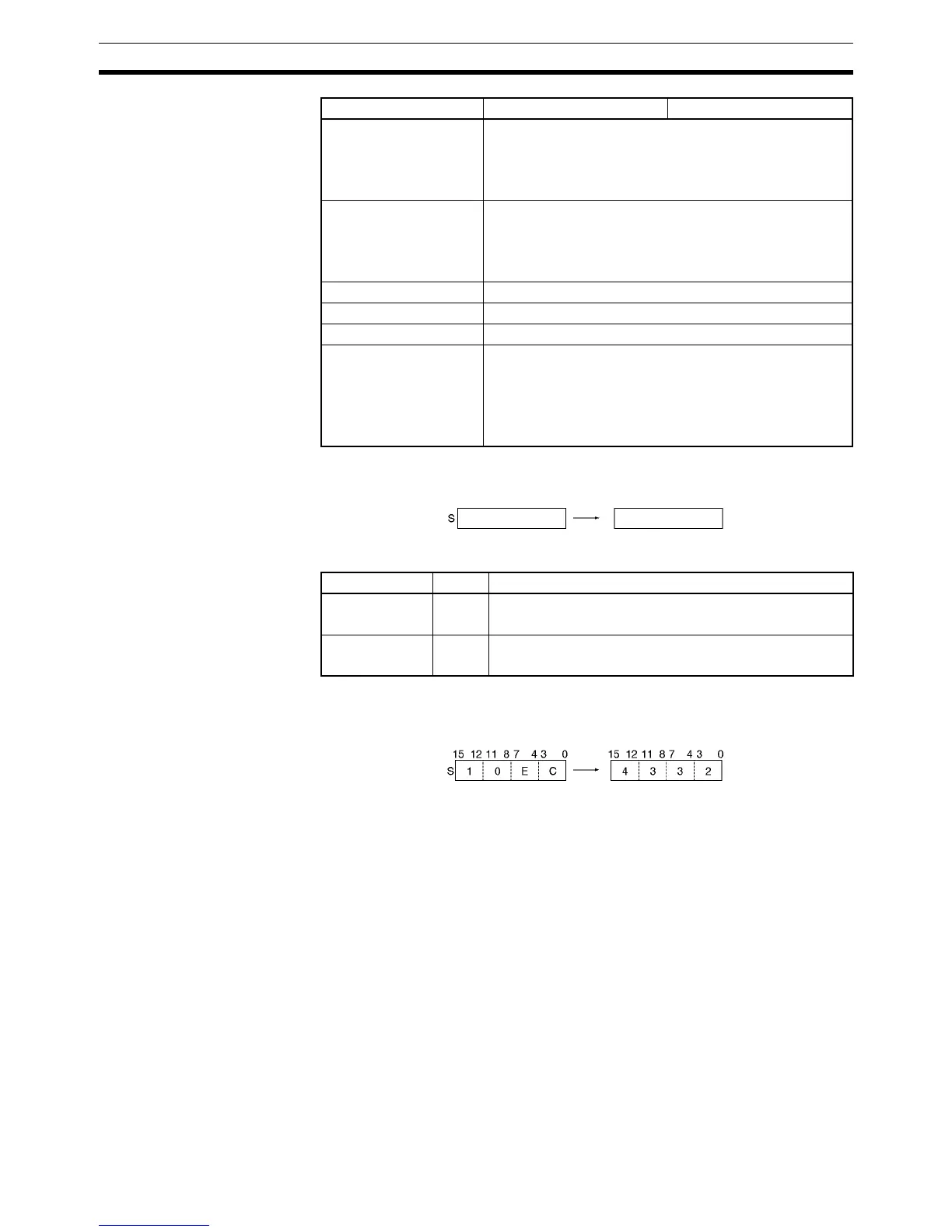

Omron SYSMAC CJ - REFERENCE MANUAL 08-2008

488
Conversion Instructions Section 3-12
Description BCD(024) converts the binary data in S to BCD data and writes the result to
R.
Flags
Precautions The content of S must not exceed 270F (9999 decimal).
Example The following diagram shows an example BCD-to-binary conversion.
In this example, N words of binary data is converted to BCD data.
If N = 3, the three words of binary starting from D00010 will be converted to
binary data one word at a time when CIO 00000 turns ON. The resulting BCD
data will be stored starting from D00100.
Indirect DM/EM
addresses in binary
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Indirect DM/EM
addresses in BCD
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Constants ---
Data Registers DR0 to DR15
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area S R
(BCD)(BIN)
R
Name Label Operation
Error Flag ER ON if the content of S exceeds 270F (9999 decimal).
OFF in all other cases.
Equals Flag = ON if the result is 0000.
OFF in all other cases.
R
×16
3
×16
2
×16
1
×16
0
×10
3
×10
2
×10
1
×10
0
