Omron SYSMAC CJ - REFERENCE MANUAL 08-2008

499
Conversion Instructions Section 3-12

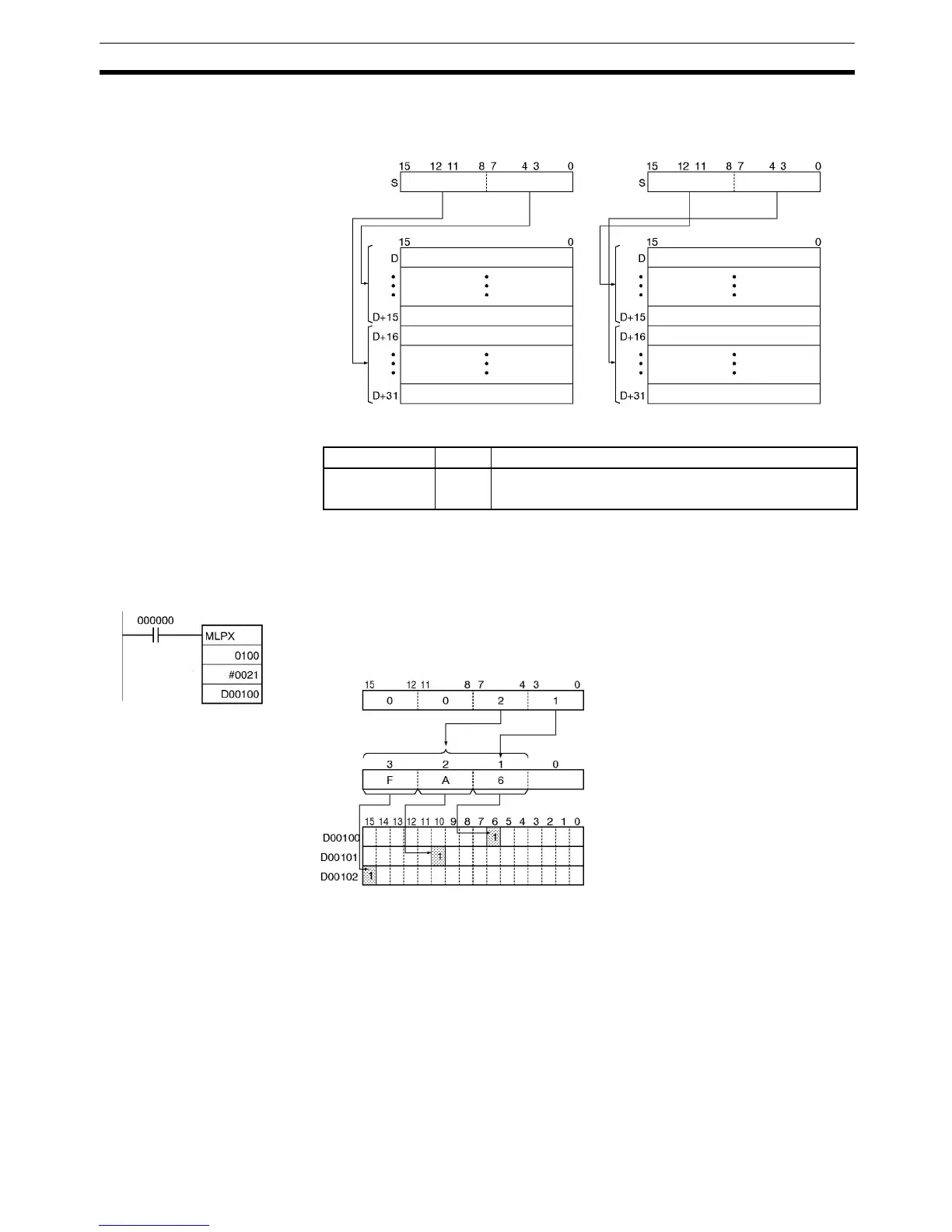

The following diagram shows some example values for C and the 8-to-256 bit
conversions that they produce.
Flags
Examples 4-to-16 bit Conversion
When CIO 000000 is ON in the following example, MLPX(076) will convert 3
digits in S beginning with digit 1 (the second digit), as indicated by C (#0021).
The corresponding bits in D00100, D00101, and D00102 will be turned ON.
8-to-256 bit Conversion
When CIO 000000 is ON in the following example, MLPX(076) will convert the
2 bytes in S beginning with byte 1 (the leftmost byte), as indicated by C
(#1011). The corresponding bits in D00100 to D00115 and D00116 to D00131
will be turned ON.
C: #1011C: #1010
Digit 1 Digit 0 Digit 1 Digit 0
Name Label Operation
Error Flag ER ON if C is not within the specified ranges.
OFF in all other cases.
C: #
S: 0100
R:
S
C
R
Digits
Bits 0 to 3: Starting digit (Digit 1)
Bits 4 to 7: Number of digits (3 digits)
Digit 1 contains 6, so bit 6 is turned ON.
Digit 2 contains A, so bit 10 is turned ON.
Digit 3 contains F, so bit 15 is turned ON.
