Special Math Instructions Section 3-14

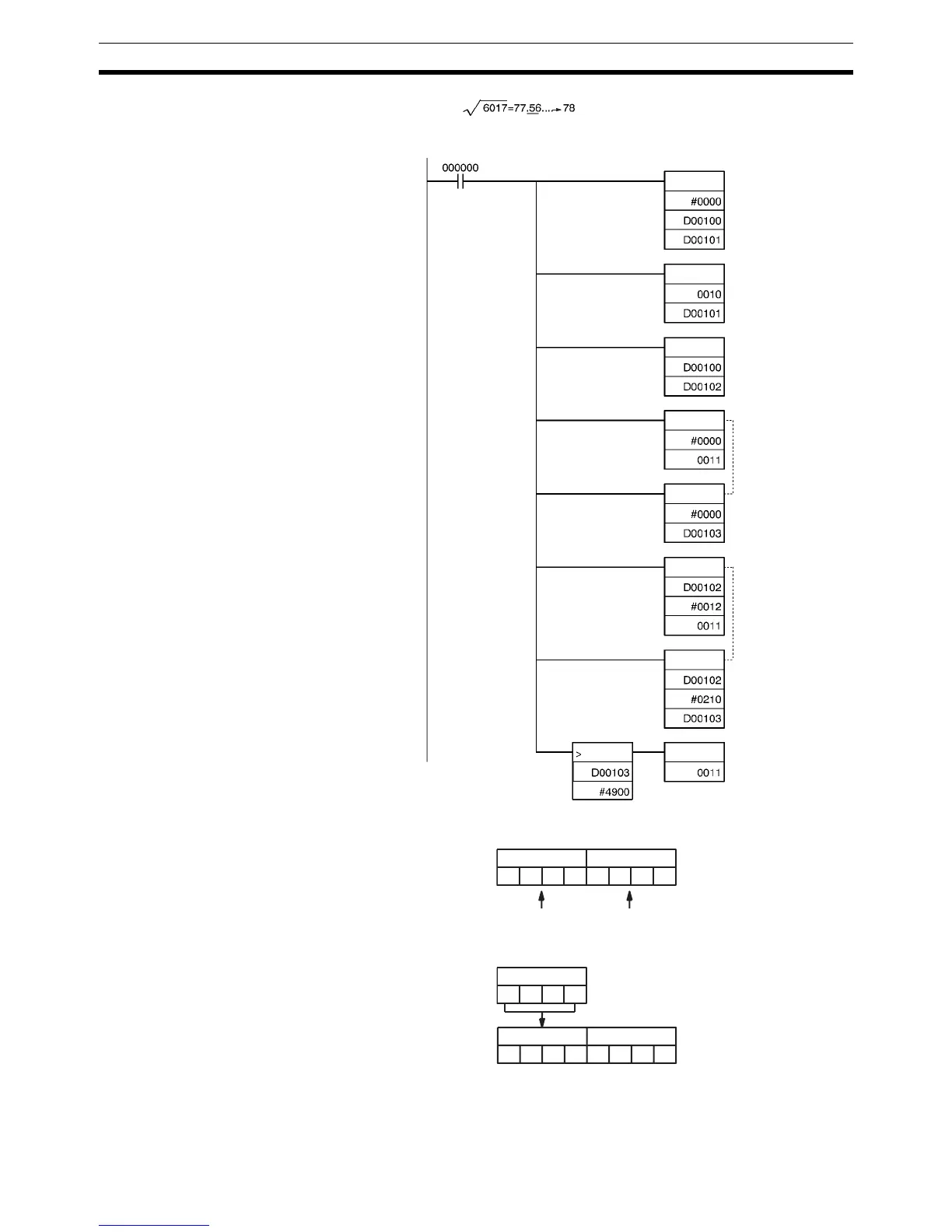

1,2,3... 1. The source words (D00101 and D00100) to be are cleared to 0000 0000.
2. The 4-digit number is moved to D00101.
3. ROOT(072) calculates the square root of D00101 and D00100 and writes
the result to D00102.
1
2
3
4
5
@BSET
@MOV
@ROOT
@MOV
@MOV
@MOVD
@MOVD
@INC
The values after the decimal point
should be rounded.
D00101 D00100
0 0 0 0 0 0 0 0
00000000
010
6 0 1 7
D00101 D00100
6 0 1 7 0 0 0 0
