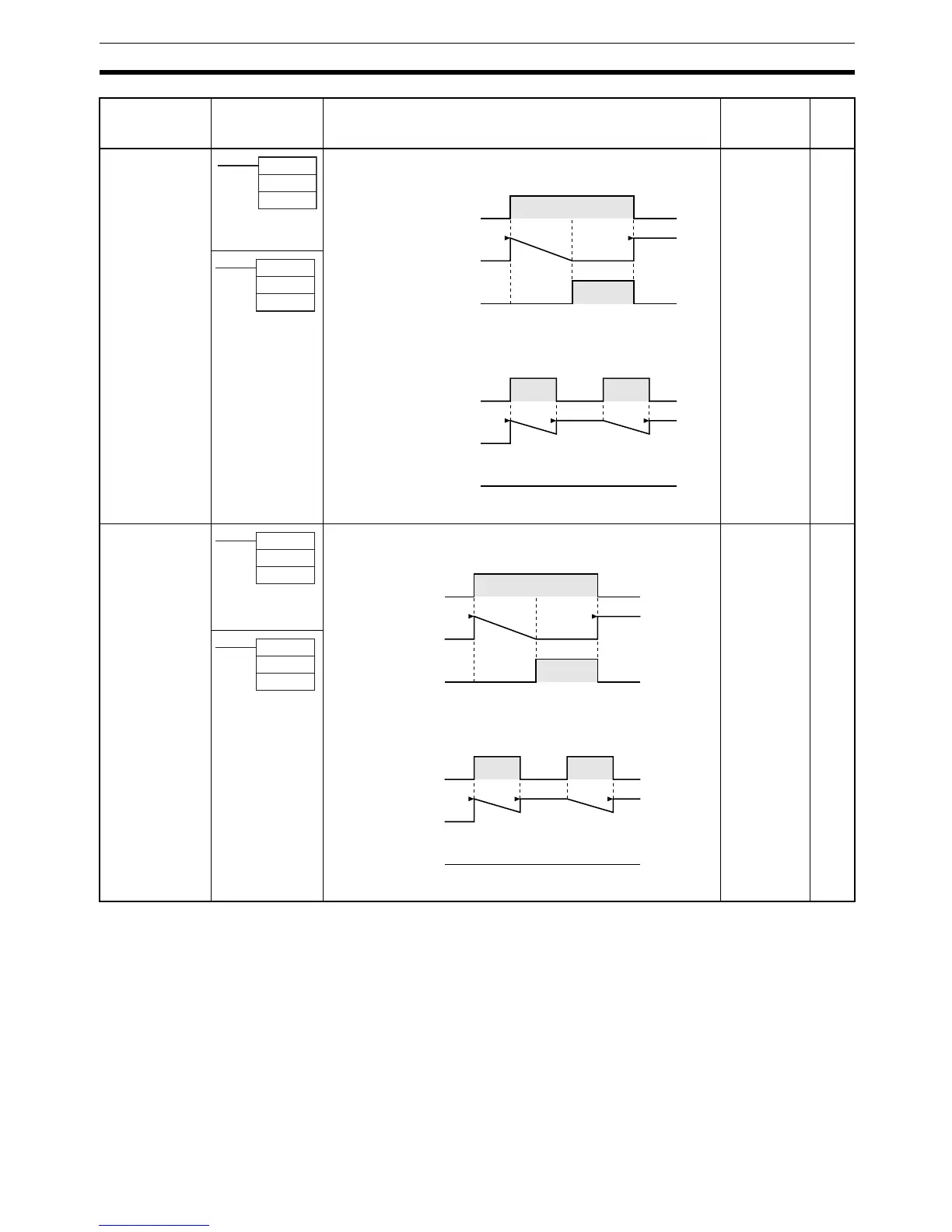

Instruction Functions Section 2-2
TENTH-MS
TIMER (CJ1-H-R
only)
TIMU
541
(BCD)
TIMU(541)/TIMUX(556) operates an decrementing timer with units of
0.1-s. The setting range for the set value (SV) is 0 to 0.999 s for BCD
and 0 to 6,553.5 s for binary (decimal or hexadecimal).
Note: The timer’s present value cannot be accessed for a TENTH-MS
TIMER instruction.
Output
Required
256
TIMUX
556
(BCD)
HUNDREDTH-MS
TIMER (CJ1-H-R
only)
TMUH
554
(BCD)
TMUH(554)/TMUHX(557) operates an decrementing timer with units of
0.01-s. The setting range for the set value (SV) is 0 to 0.0999 s for BCD
and 0 to 0.65535 s for binary (decimal or hexadecimal).
Note: The timer’s present value cannot be accessed for a HUN-
DREDTH-MS TIMER instruction.
Output
Required
259
TMUHX
557
(BCD)
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution
condition
Page
N: Timer number
S: Set value
TIMU(541)
N
S
ON
OFF
0
ON
OFF
Timer Input Turns OFF before Completion Flag Turns ON
SV
ON
OFF
0
ON
OFF
Timer input
Timer PV
Completion
Flag
Timer input
Timer PV
Completion
Flag
SV
N: Timer number
S: Set value
TIMUX(556)
N
S
N: Timer number
S: Set value
TMUH(554)
N
S
ON
OFF
0
ON
OFF
Timer Input Turns OFF before Completion Flag Turns ON
ON
OFF
0
ON
OFF
SV
Timer input
Timer PV
Completion
Flag
SV
Timer input
Timer PV
Completion
Flag
N: Timer number
S: Set value
TMUHX(557)
N
S
