Step Instructions Section 3-22

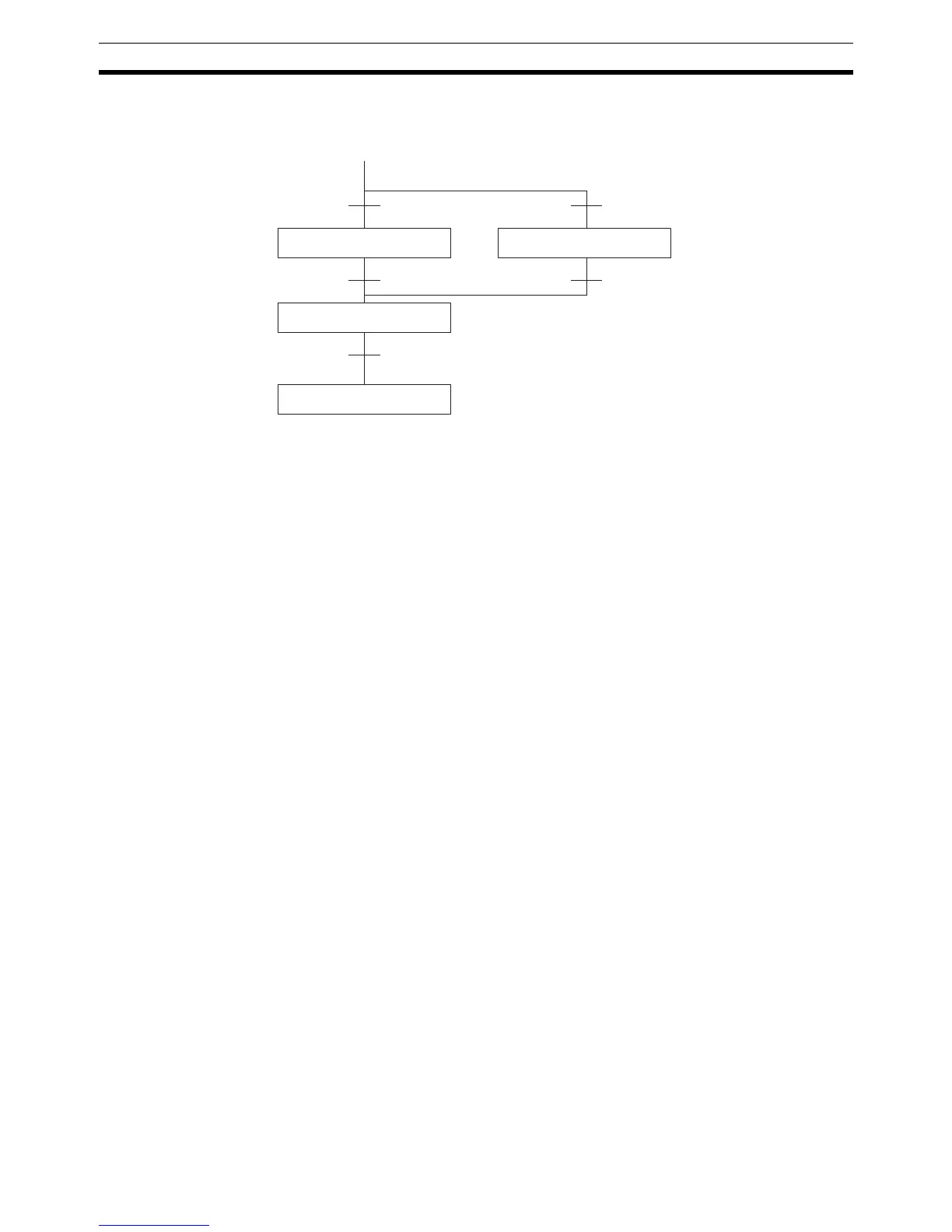

The following diagram demonstrates the flow of processing and the switches
that are used for execution control. Here, either process A or process B is
used depending on the status of SW A1 and SW B1.
SW A1
SW B1
SW A2
SW B2
SW D
Process A
Process C
End
Process B
