Basic I/O Unit Instructions Section 3-23
D: First Register Word
Specifies the leading word address where the hexadecimal keypad’s numeric
input (up to 8 digits) will be stored. (In addition, each time that a key is
pressed, the corresponding bit in D+2 (0 to F) will be turned ON and remains
ON until another key is pressed.)
C: System Word
Specifies a work word used by the instruction. This word cannot be used in
any other application.

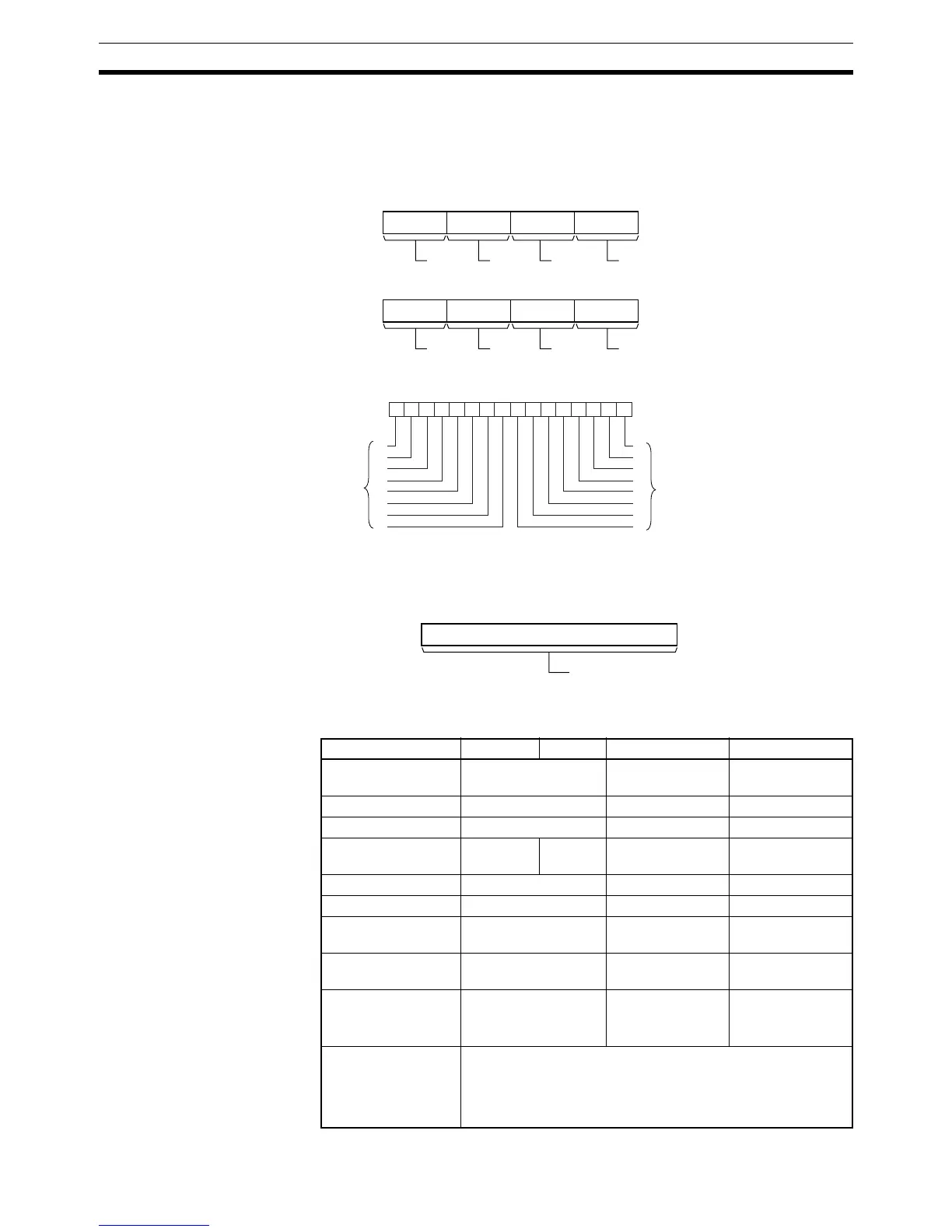

Operand Specifications
D
815 1211 0347
D+1
815 1211 0347
0123456789101112131415
D+2
0
1
2
3
4
5
6
7
15
14
13
12
11
10
9
8
Digit 1
Digit 2
Digit 3
Digit 4
Digit 5
Digit 6
Digit 7
Digit 8
ON when the corresponding key
is pressed. (Remains on until
another key is pressed.)
C
15 0
System word
(Cannot be accessed by the user.)
Area I O D C
CIO Area CIO 0000 to
CIO 6143
CIO 0000 to CIO
6141
CIO 0000 to
CIO 6143
Work Area W000 to W511 W000 to W509 W000 to W511
Holding Bit Area H000 to H511 H000 to H509 H000 to H511
Auxiliary Bit Area A000 to
A957
A448 to
A959
A448 to A957 A448 to A959
Timer Area T0000 to T4095 T0000 to T4093 T0000 to T4095
Counter Area C0000 to C4095 C0000 to C4093 C0000 to C4095
DM Area D00000 to D32767 D00000 to
D32765
D00000 to
D32767
EM Area without
bank
E00000 to E32767 E00000 to
E32765
E00000 to
E32767
EM Area with bank En_00000 to
En_32767
(n = 0 to C)
En_00000 to
En_32765
(n = 0 to C)
En_00000 to
En_32767
(n = 0 to C)
Indirect DM/EM
addresses in binary
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
