No. Item Description
3 Sensor name and IP
address
Displays the sensor name and IP address.
When the sensor is of
fline, Offline is displayed instead of the IP address.
4 Line name Displays the line for which information is currently being displayed.
5 Scene group name Displays the current scene group number and scene group name.
6 Scene name Displays the current scene number and scene name.
l

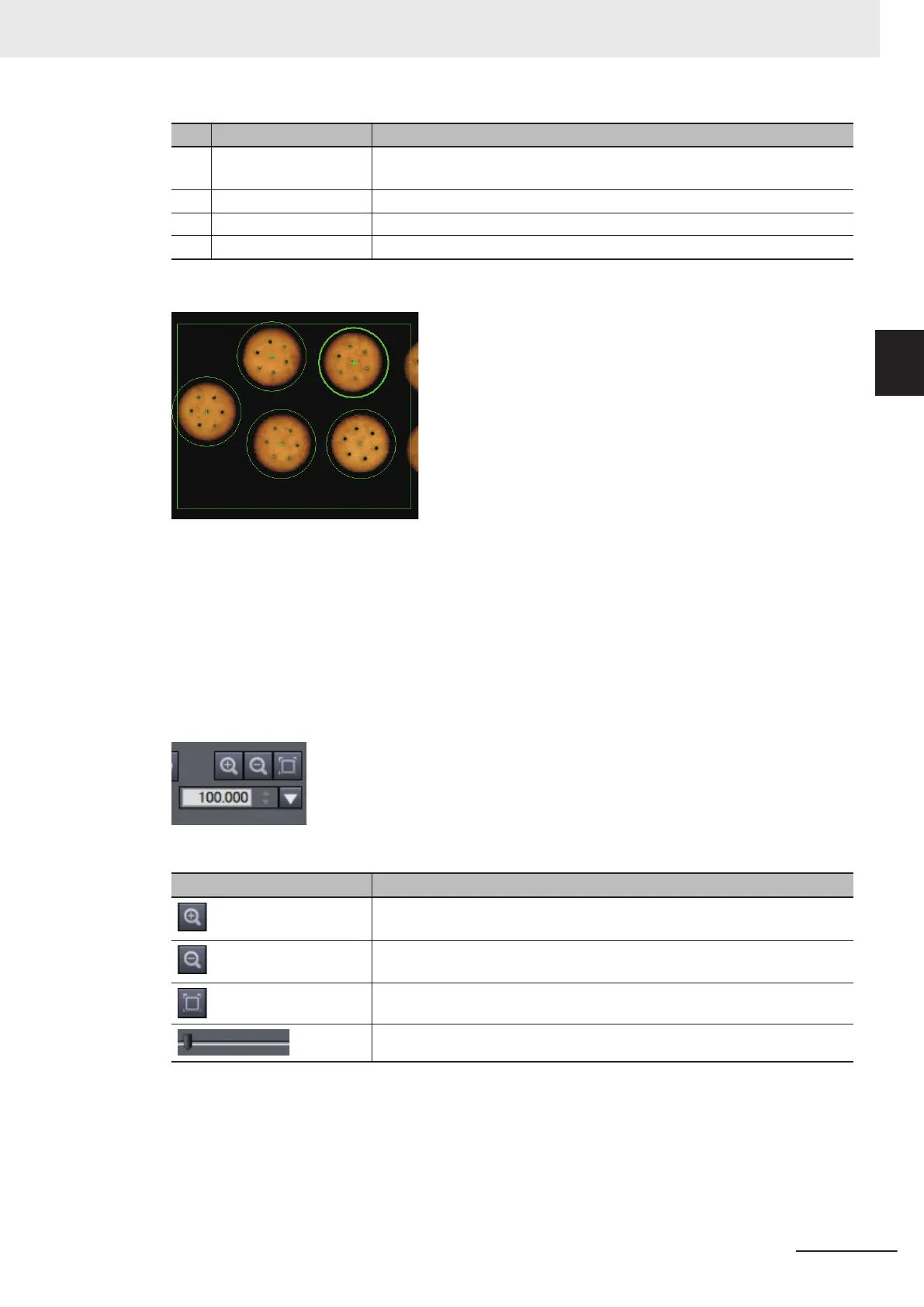

Image display area
This displays the image and measurement result (graphic) for the processing unit selected in the
flow display
.
The settings for image display in the image display area can be changed in the Image display
settings menu.
For details on the Image display settings menu, refer to Image display settings on page 2 - 19.
While an image is displayed enlarged, you can change the display area by left-clicking and drag-
ging the displayed image.
l
Image size control section
This allows you to enlarge or reduce the selected image.
Button Description
Enlarges the image. Image display is enlarged in 20% steps. (Upper limit:
1600%)
Reduces the image. Image display is reduced in 20% steps. (Lower limit:
1%)
Makes the image fit the display frame
Enlarges or reduces the image.
2 Basic Operations
2 - 17
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
2-4 Description of Screen Components
2
2-4-5 Edit Pane
To Next Page
