Omron SYSMAC FH Series Operation Manual

Item Description
Sub image Selects the sub image number for the image with the focus on it.
A
vailable sub-image numbers vary depending on the processing item.
Select items: Image0, Image1,..., image31
This sets the displays settings for images displayed in the image display area.
l

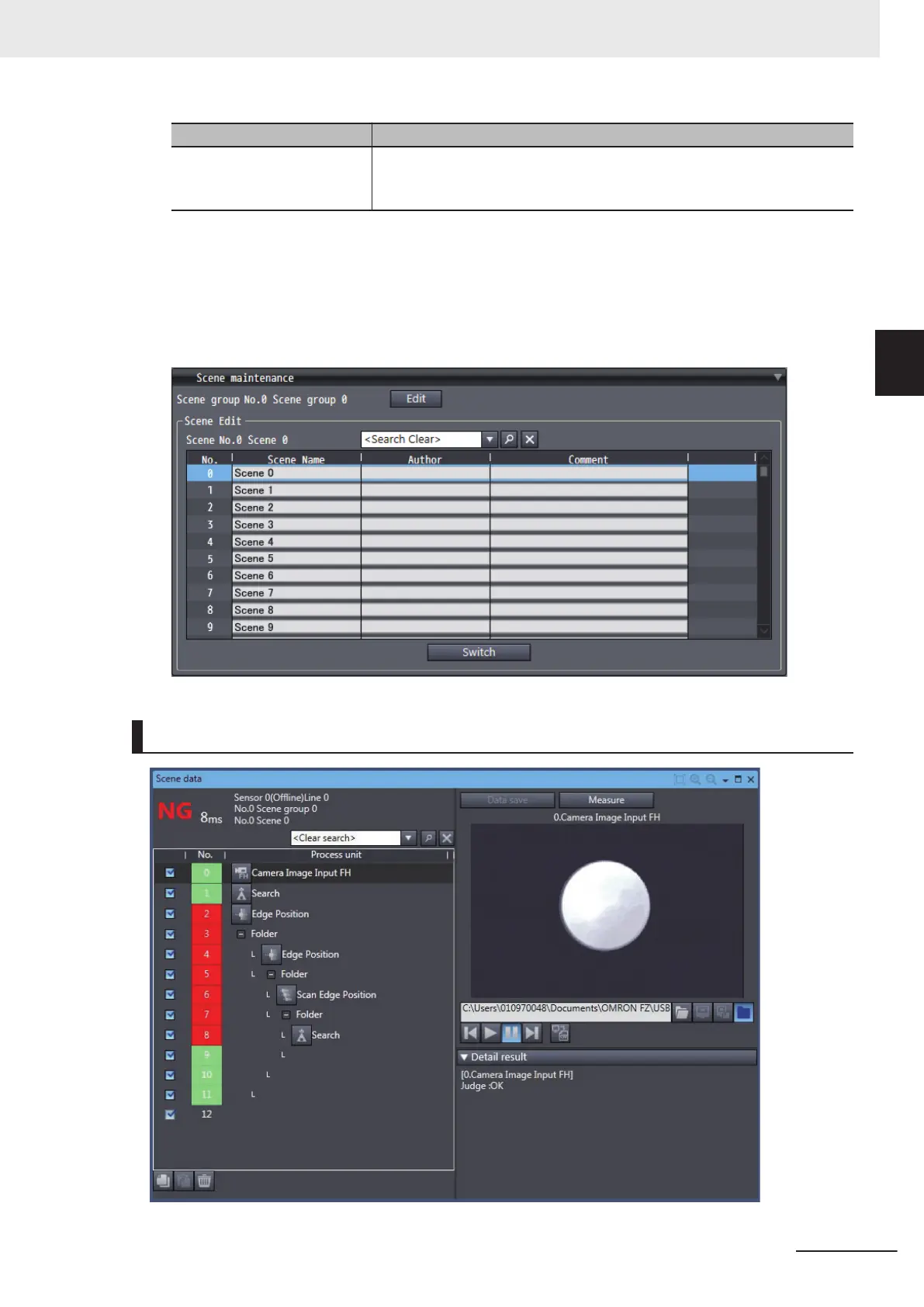

Scene maintenance area
Clicking the scene maintenance item bar opens the scene maintenance window.
This screen allows you to manage and switch the scene group data and scene data.
For details on the specifications, refer to 2-5 Basic Operations of Scene Data on page
2 - 31.
Scene data editing screen
This editing screen allows you to build the processing unit flow.
2 Basic Operations
2 - 25
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
2-4 Description of Screen Components
2
2-4-5 Edit Pane
