Workstation 5A Setup Guide - Fourth Edition 3-3
What’s Inside?
Disassembling the Workstation 5A
4. Remove the screw that fastens the LCD/Touchscreen assembly to the base
as shown at the top of Figure 3-2.
5. Lift up the front of the LCD/Touchscreen assembly and place it to the right
of the base. If you encounter resistance, check for a cable snagged under
the Mini-PCI connector.

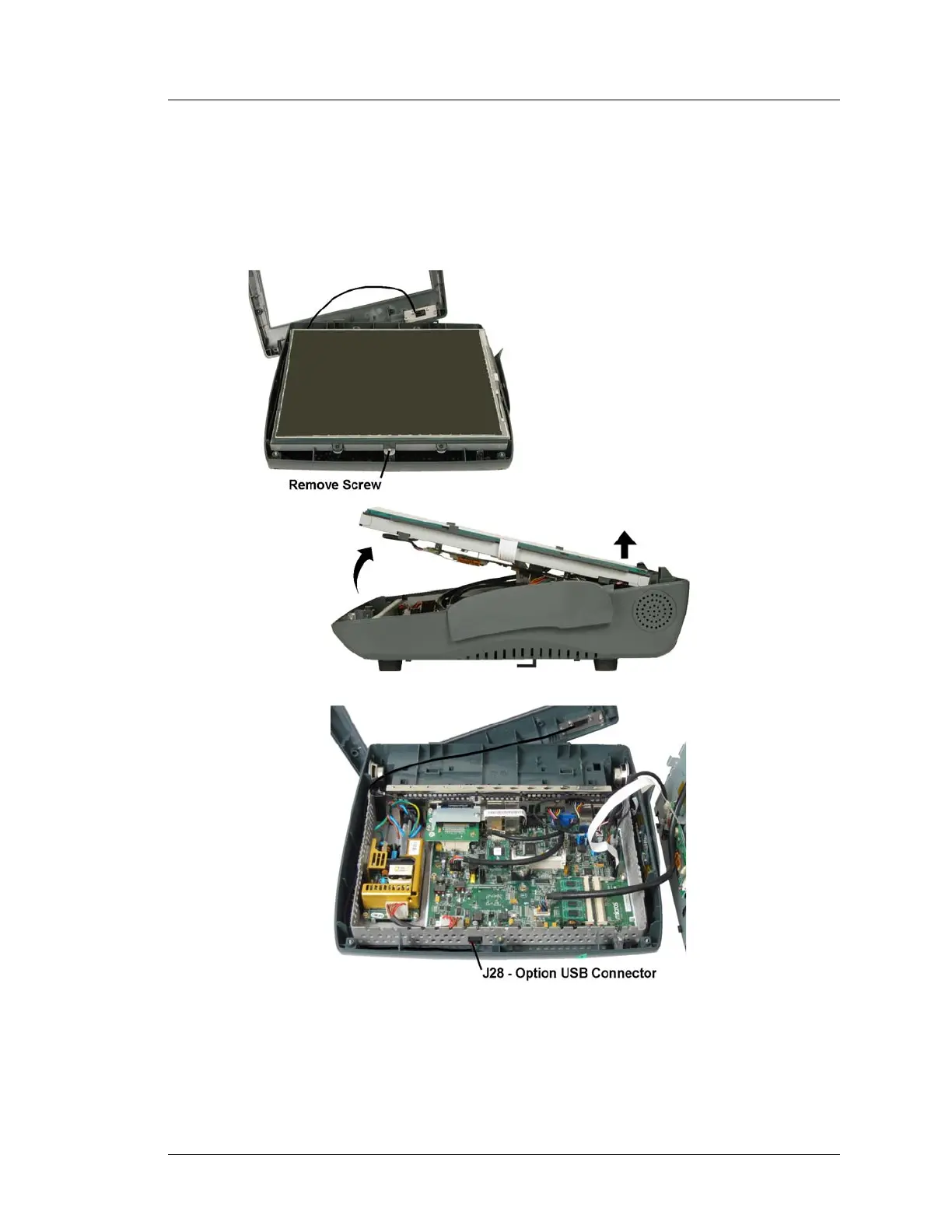

Figure 3-2: Removing the LCD/Touchscreen Assembly
6. If a Finger Print reader or other option is attached to the top cover
, remove
the interface cable from J28 located at the front of the chassis.
To Next Page
