Remove the Main Module

100 SPARC T5-4 Server Service Manual • July 2016

See “Front Panel Components” on page 14.

5.

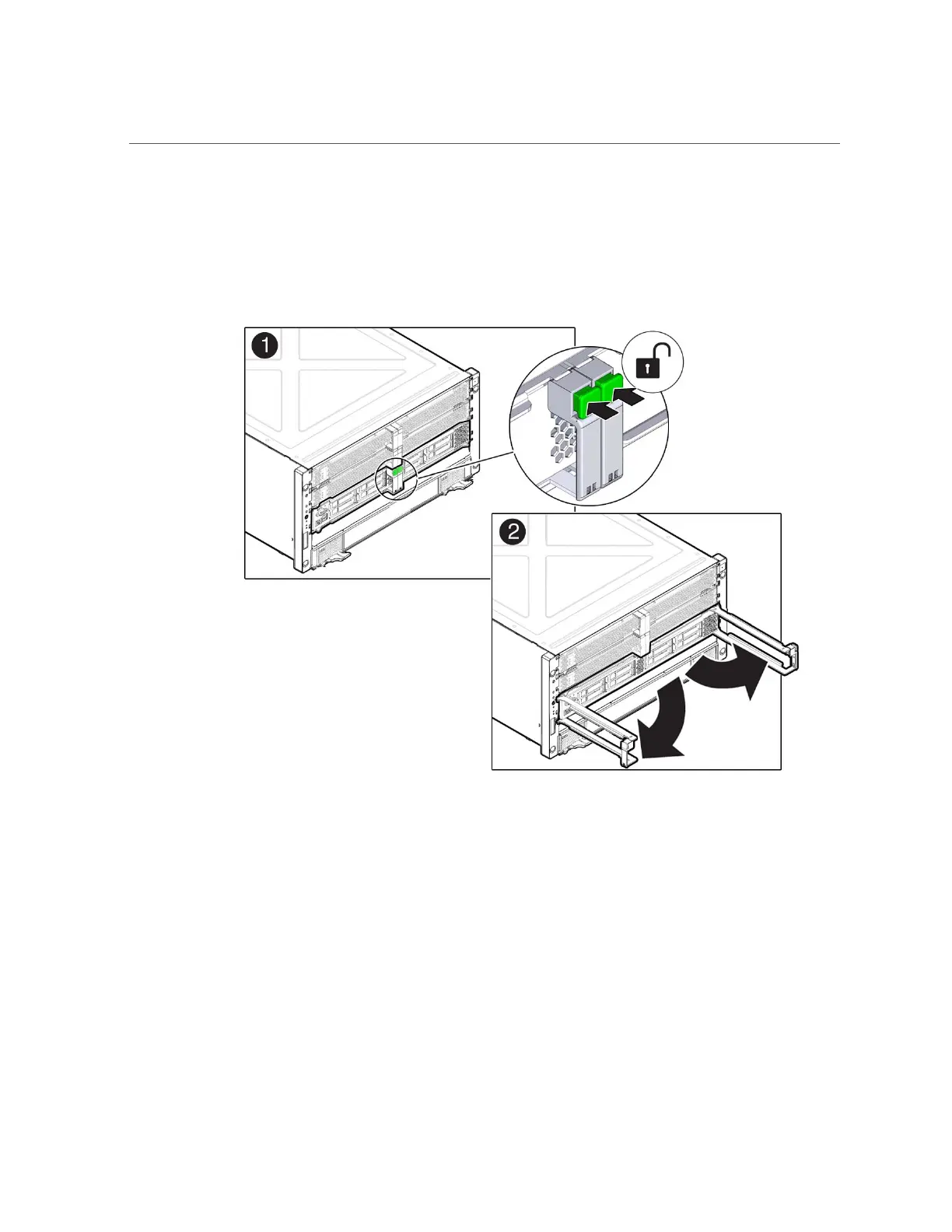

Squeeze the release latches together on the two extraction levers, and pull the

extraction levers out to disengage the main module from the server.
