Remove a Storage Backplane

Servicing the Storage Backplanes 109

b.

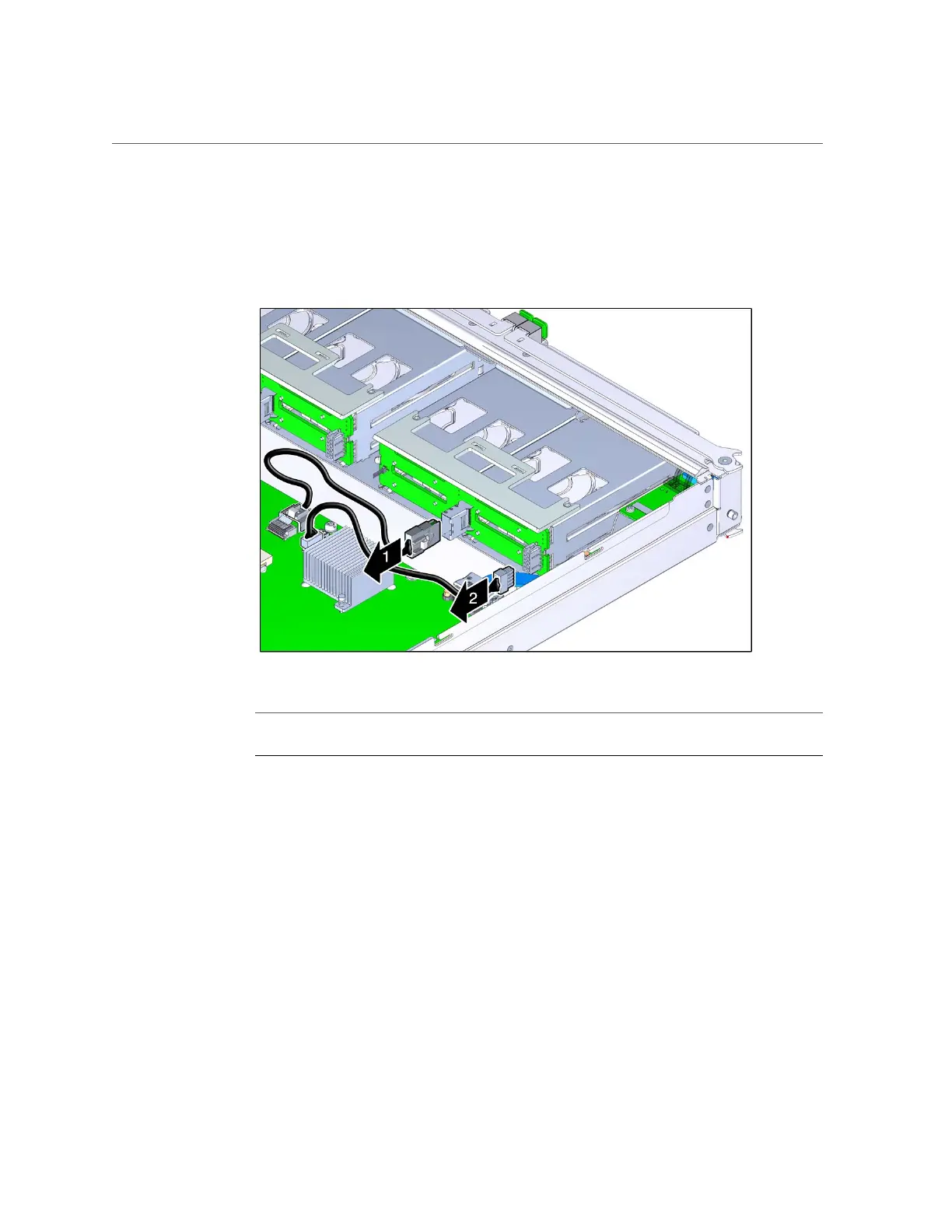

Lift up on the connectors that secure the power cable to the storage

backplane and the motherboard, and remove the power cable from the main

module.

1 Data cable, storage backplane connection

2 Power cable, storage backplane connection
