Install a Power Supply

Servicing Power Supplies 141

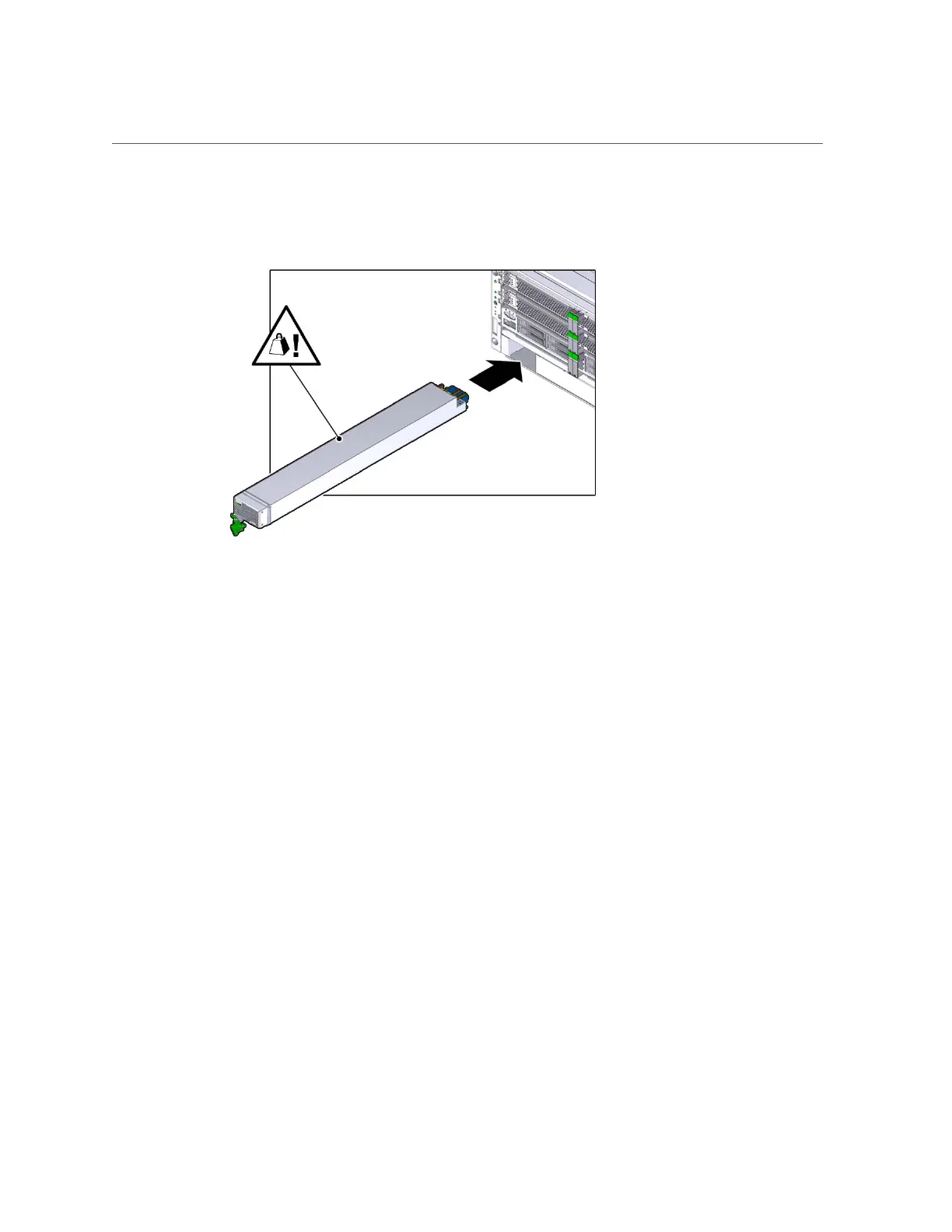

Verify that the power supply is oriented as shown in the following figure.

2.

Slide the power supply into the chassis.
