Install a PCIe Card
164 SPARC T5-4 Server Service Manual • July 2016
b.
If you are replacing a faulty PCIe card and have already removed its carrier
from the server, go to Step 2.
c.
If you are installing a PCIe card that requires a PCIe carrier extension, see
“Install a PCIe Carrier Extension” on page 167.
2.
Remove the PCIe card from its packaging.
3.

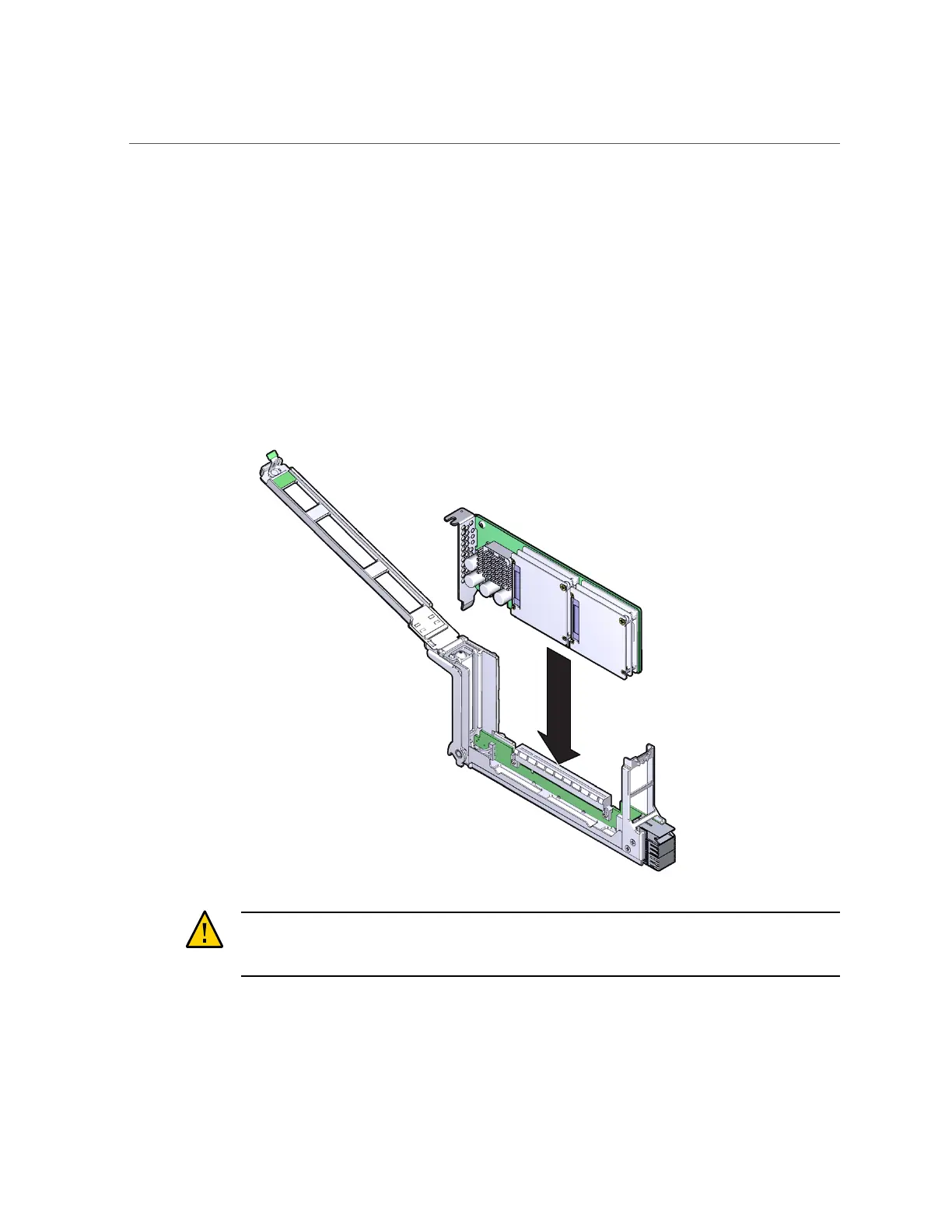

Insert the PCIe card into the PCIe card carrier until the bottom connector is
firmly seated in the PCIe card carrier's connector.
Caution - Do not twist or turn the PCIe card as you insert it into the PCIe card carrier. Ensure
that the PCIe card's connector is fully seated in the PCIe card carrier's slot, and that the notch in
the PCIe card's rear bulkhead is seated around the PCIe carrier's alignment tab.
