Remove a PCIe Carrier Extension
166 SPARC T5-4 Server Service Manual • July 2016
The PCIe carrier and extension are removed as a single unit. See “Remove a PCIe Card
Carrier” on page 158.
2.

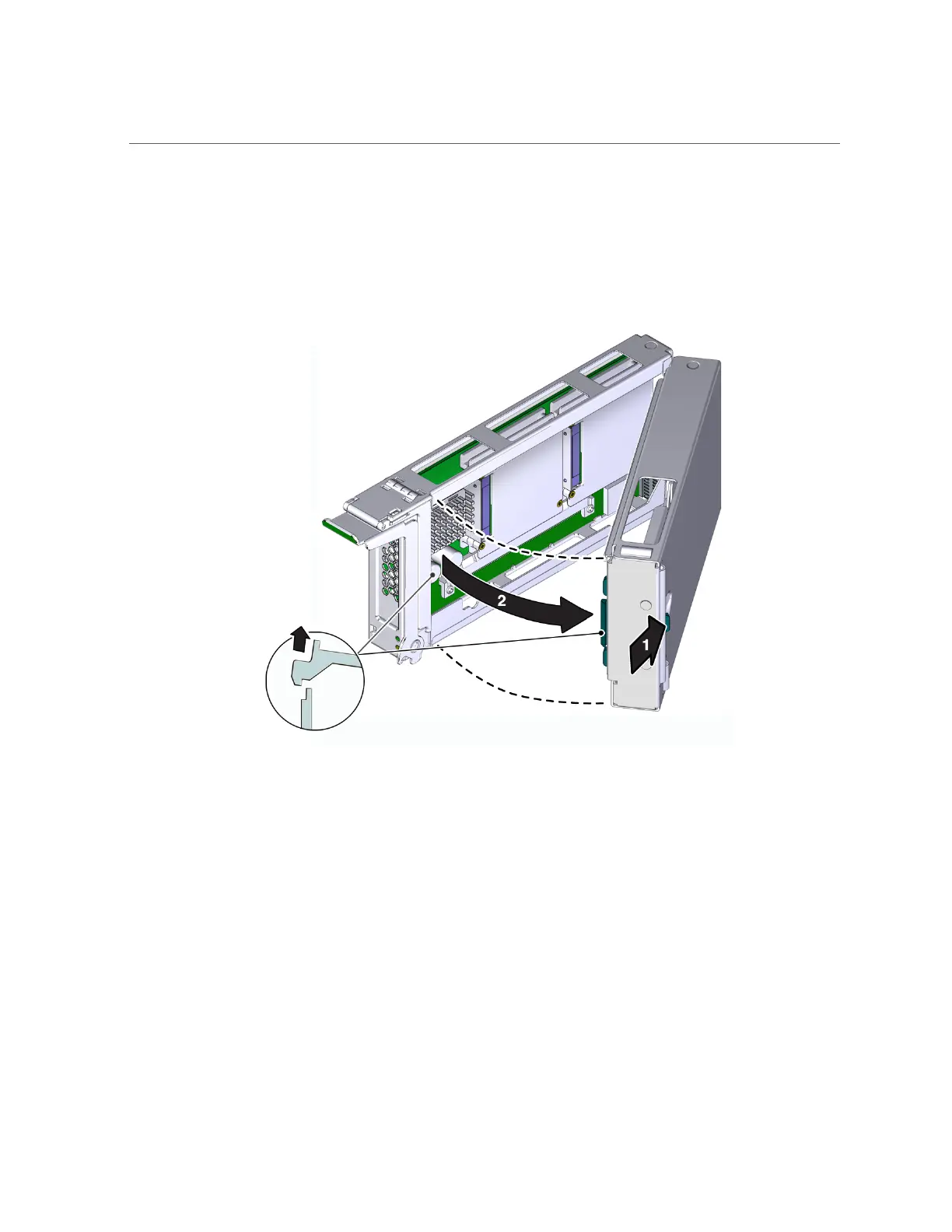

Unlock the carrier extension at the front panel.
3.
Hold the latch open, and swing the carrier extension away from the main carrier.
4.
Remove the PCIe card from the main carrier.
See “Remove a PCIe Card” on page 161.
5.
Determine your next step:
If you are installing a new PCIe card, see “Install a PCIe Card” on page 163.
If you are not installing a PCIe card, proceed to Step 6.
6.
Set the carrier extension aside, and install two PCIe card carriers in the slots that
were occupied by the PCIe card carrier and the carrier extension.
