Remove the Rear Chassis Subassembly

186 SPARC T5-4 Server Service Manual • July 2016

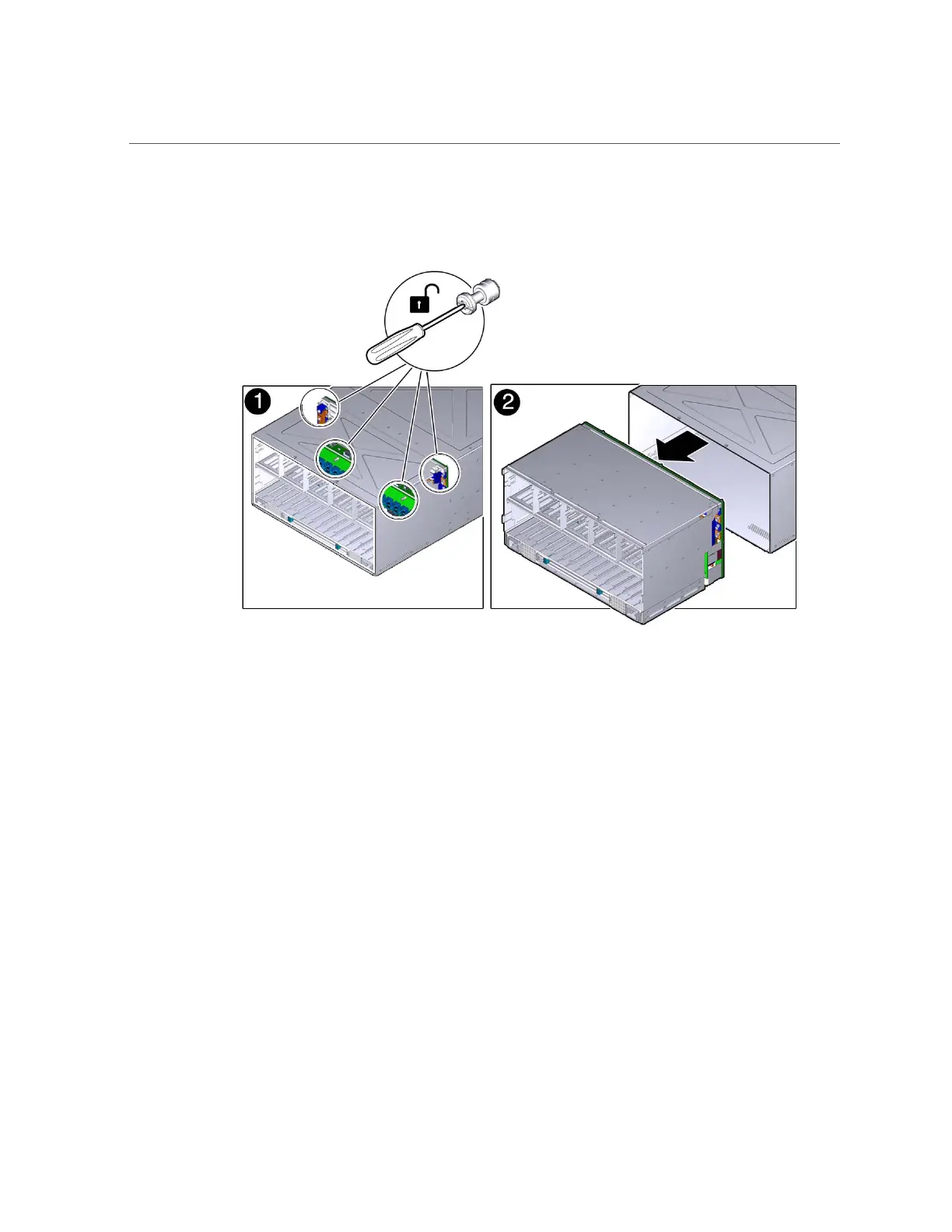

Locate the four green mounting screws for the rear chassis subassembly.

Using a Phillips screwdriver, loosen the five screws that secure the rear chassis

subassembly to the system.

Slide the rear chassis subassembly out and away from the server.

Related Information

■

“Install the Rear Chassis Subassembly” on page 187
