Chapter 2 Getting Started — Connecting
ENGLISH - 61
f The <HDMI IN 1>/<HDMI IN 2> terminals can be connected to the external device with a DVI-D terminal by using the HDMI/DVI conversion
cable. However, this may not function properly for some external devices, and image may not be projected.
f The projector does not support VIERA Link (HDMI) and HDMI CEC (Consumer Electronics Control).

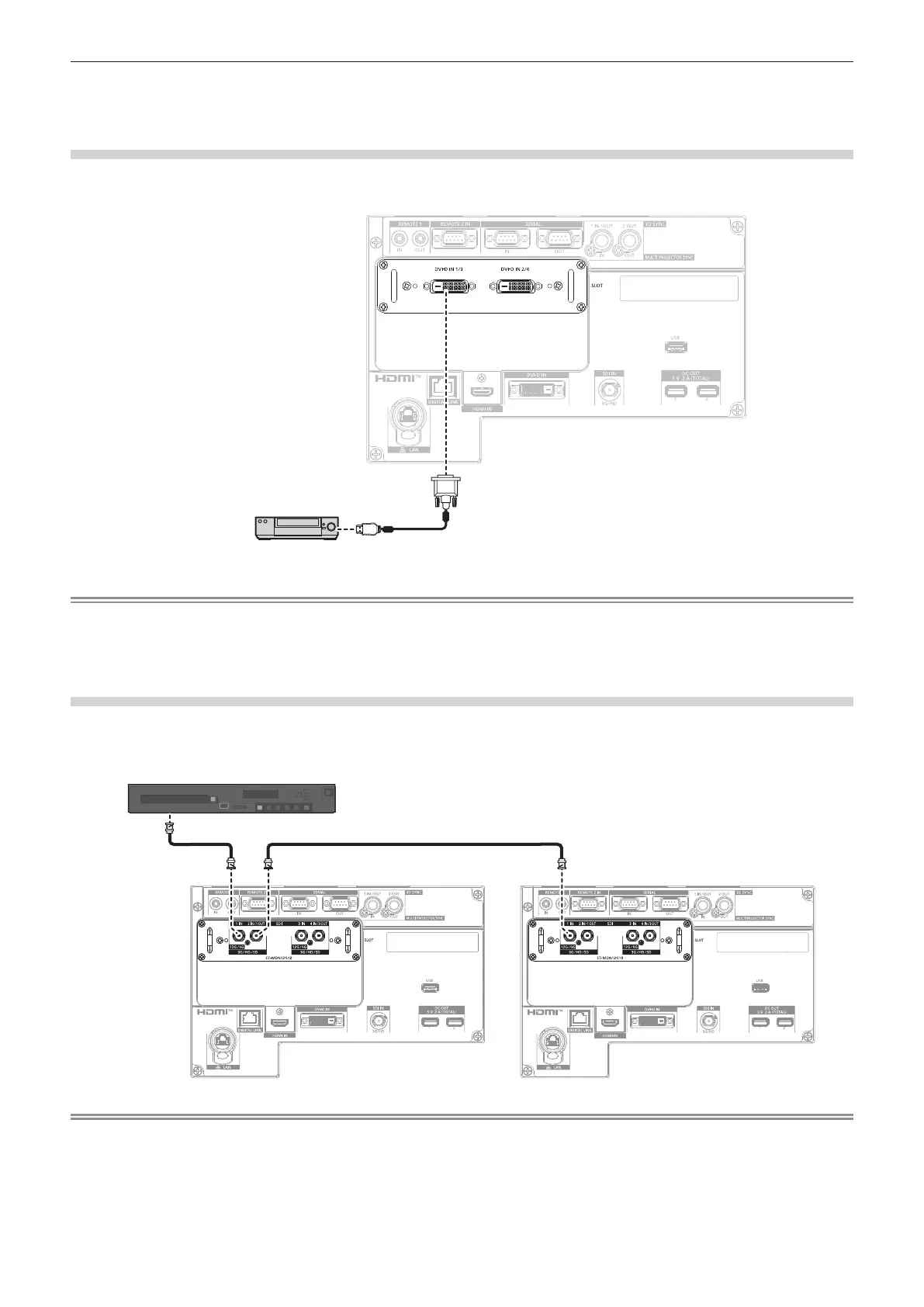

For <DVI-D IN 1>/<DVI-D IN 2> terminals of the Interface Board
This is an example when the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed in
<SLOT>.
DVD player with HDMI terminal (HDCP)
Note
f Setting the [DISPLAY OPTION] menu → [SLOT IN] is required depending on the connected external device or the input signal.
f The <DVI-D IN 1>/<DVI-D IN 2> terminals can be connected with the HDMI and DVI-D compatible device. However, some external devices
may not be able to project images properly, such as the image not displaying.
f The <DVI-D IN 1>/<DVI-D IN 2> terminals support the single link for DVI 1.0. They do not support the dual link for DVI 1.0.
For <SDI 1 IN>/<SDI 2 IN/1 OUT>/<SDI 3 IN>/<SDI 4 IN/3 OUT> terminals of the Interface Board
This is an example when the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed in
<SLOT>.
HD-SDI signal, 3G-SDI signal, 6G-SDI signal, or 12G-SDI signal
12G-SDI signal output compatible device
Note
f Use a connection cable of 5C-FB or higher (such as 5C-FB, or 7C-FB), Belden 1694A or higher, or L-5.5CUHD manufactured by Canare
Electric Co., Ltd. to properly transmit images. The maximum cable length that can be used is as follows. However, this maximum cable
length is a rough guideline, and does not guarantee the transmission distance.
g HD-SDI signal, 3G-SDI signal: 150 m (492'2")
g 6G-SDI signal: 80 m (262'6") (When L-5.5CUHD is used, the cable length should be 110 m (360'11").)
g For 12G-SDI signal, the cable length will differ depending on the setting in the [DISPLAY OPTION] menu → [SLOT IN] → [SDI MODE].
When [SDI MODE] is set to [INPUT]: 50 m (164'1") (When L-5.5CUHD is used, the cable length should be 100 m (328'1").)
To Next Page
