Setting up Compax3
74 I11 T11 192-120101 N6 - March 2004

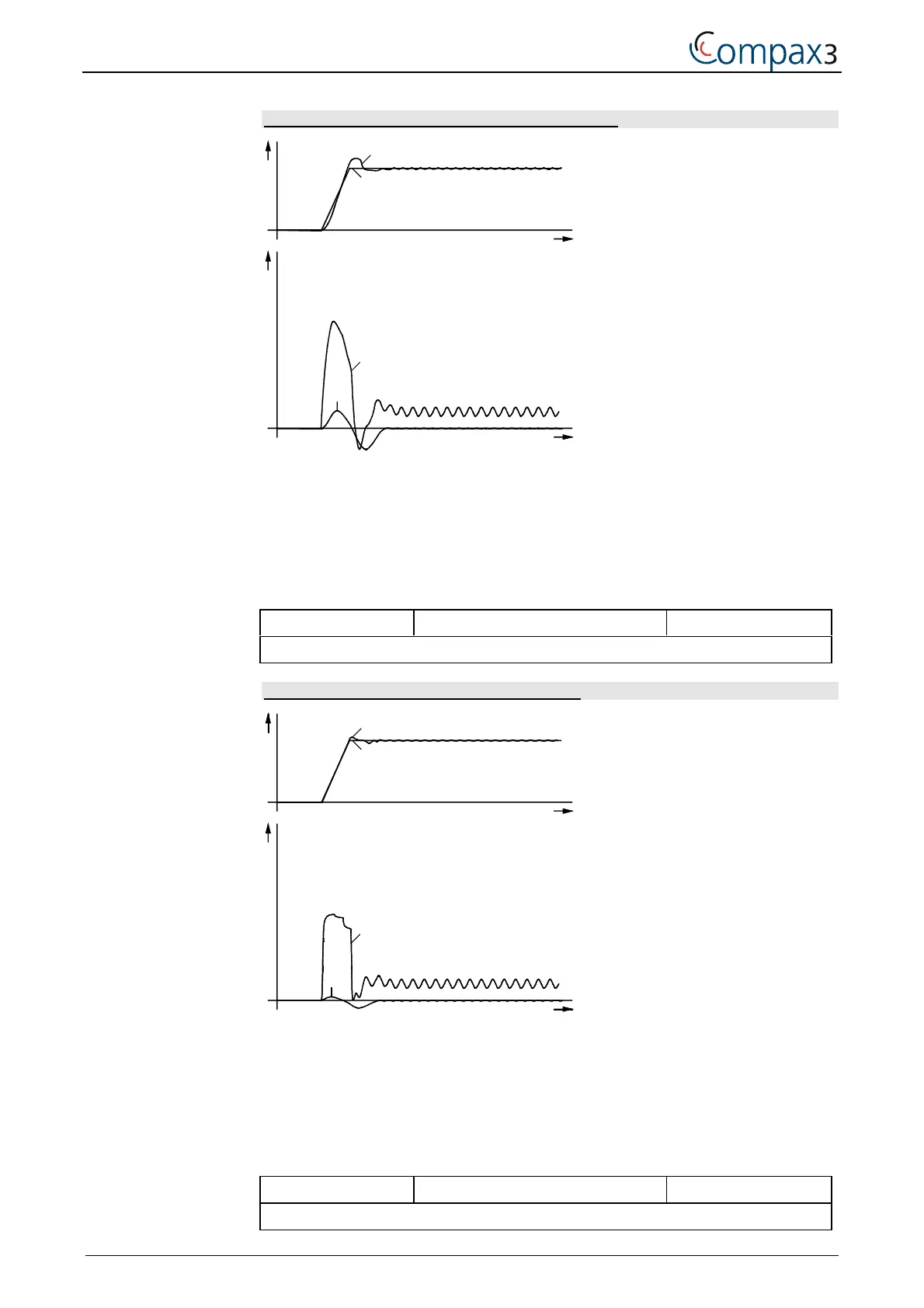

Additional effect of forward acceleration control
t
t
2
1
3
4
1: target speed value
2: actual speed value
3: motor current
4: tracking error
2010.4: Current forwards control
Unit: % Range: 0 ... 500 Standard value: 0%
Additional effect of forward current control
t
t
2
1
3
4
1: target speed value
2: actual speed value
3: motor current
4: tracking error
2010.5: Jerk forward control
Unit: % Range: 0 ... 500 Standard value: 0%

Parker Compax3 S150 V4 Specifications

General

Output Current	150 A
Control Type	Digital
Series	Compax3
Model	S150 V4
Enclosure Rating	IP20
Communication Interfaces	CANopen, RS-232, RS-485
Feedback Options	Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Relative Humidity	5 to 95% non-condensing
Operating Temperature	0 to +45 °C (32 to 113 °F)
