Parker Compax3 User Manual

Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010
37

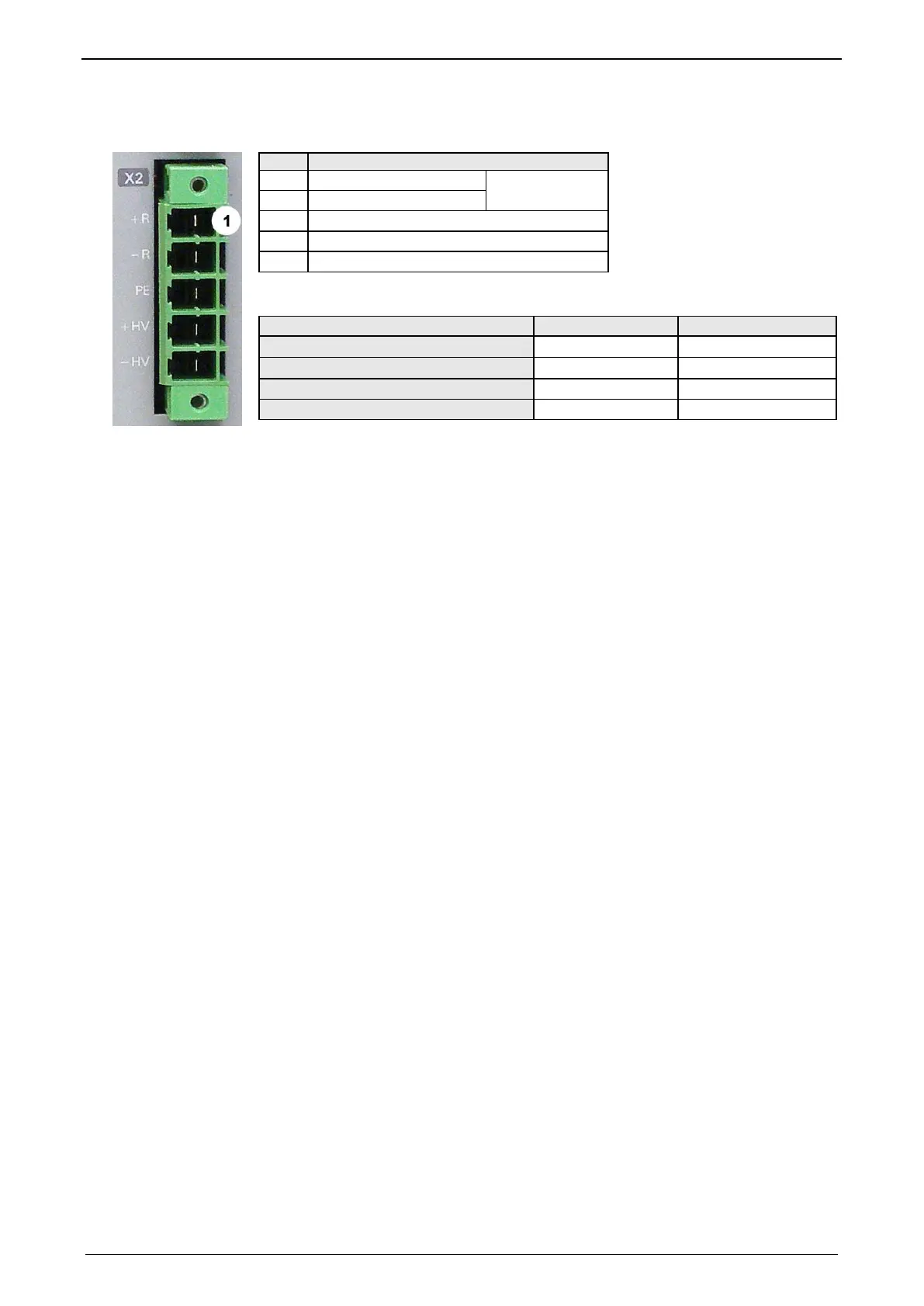

Braking resistor / high voltage supply plug X2 for 3AC
230VAC/240VAC devices
PIN
Description
1 + Braking resistor no short-circuit
protection!
2 - Braking resistor
3 PE
4
+ DC high voltage supply
5 - DC high voltage supply
Braking operation Compax3S1xxV2 3AC
Controller type
S100V2
S150V2
Capacitance / storable energy
780µF / 21Ws 1170µF / 31Ws
Minimum braking- resistance
22Ω 15Ω
Recommended nominal power rating
60 ... 450W 60 ... 600W
Maximum continuous current
20A 20A
Connection of a braking resistor
Minimum line cross section: 1.5mm
2
Maximum line length: 2m
Maximum output voltage: 400VDC

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
