Parker Compax3 User Manual

Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010
47
PSUP30D6 Mains connection
Device type PSUP30
230V
400V
480V
Supply voltage
230VAC ±10%
50-60Hz
400VAC ±10%
50-60Hz
480VAC ±10%
50-60Hz
Rated voltage
3AC 230V 3AC 400V 3AC 480V
Input current
50Arms 50Arms 42Arms
Output voltage
325VDC ±10% 565VDC ±10% 680VDC ±10%
Output power
17kW 30kW 30kW
Pulse power (<5s)
34kW 60kW 60kW
Power dissipation
140W 140W 140W
Maximum fuse rating per
device (=short circuit rating)
2 circuit breakers in line are
required
Cable protection measure:
MCB (K characteristic) with a rating of 63A / 4xxVAC
(depending on the input voltage)
Recommendation: (ABB) S203U-K63 (440VAC)
Device protection measure:
Circuit breakers 125A / 700VAC per supply leg in
accordance with UL category JFHR2
Requirement: Bussmann 170M1368 or 170M1568D
Only three-phase operation of the PSUP devices is permitted!
The PSUP30 mains module may only be operated with mains filter (see on
page 338)
Required mains filter for the PSUP30: 0.45 mH / 55 A
We offer the following mains filters:
 LCG-0055-0.45 mH (WxDxH: 180 mm x 140 mm x 157 mm; 10 kg)
 LCG-0055-0.45 mH-UL (with UL approval) (WxDxH: 180 mm x 170 mm x
157 mm; 15 kg)

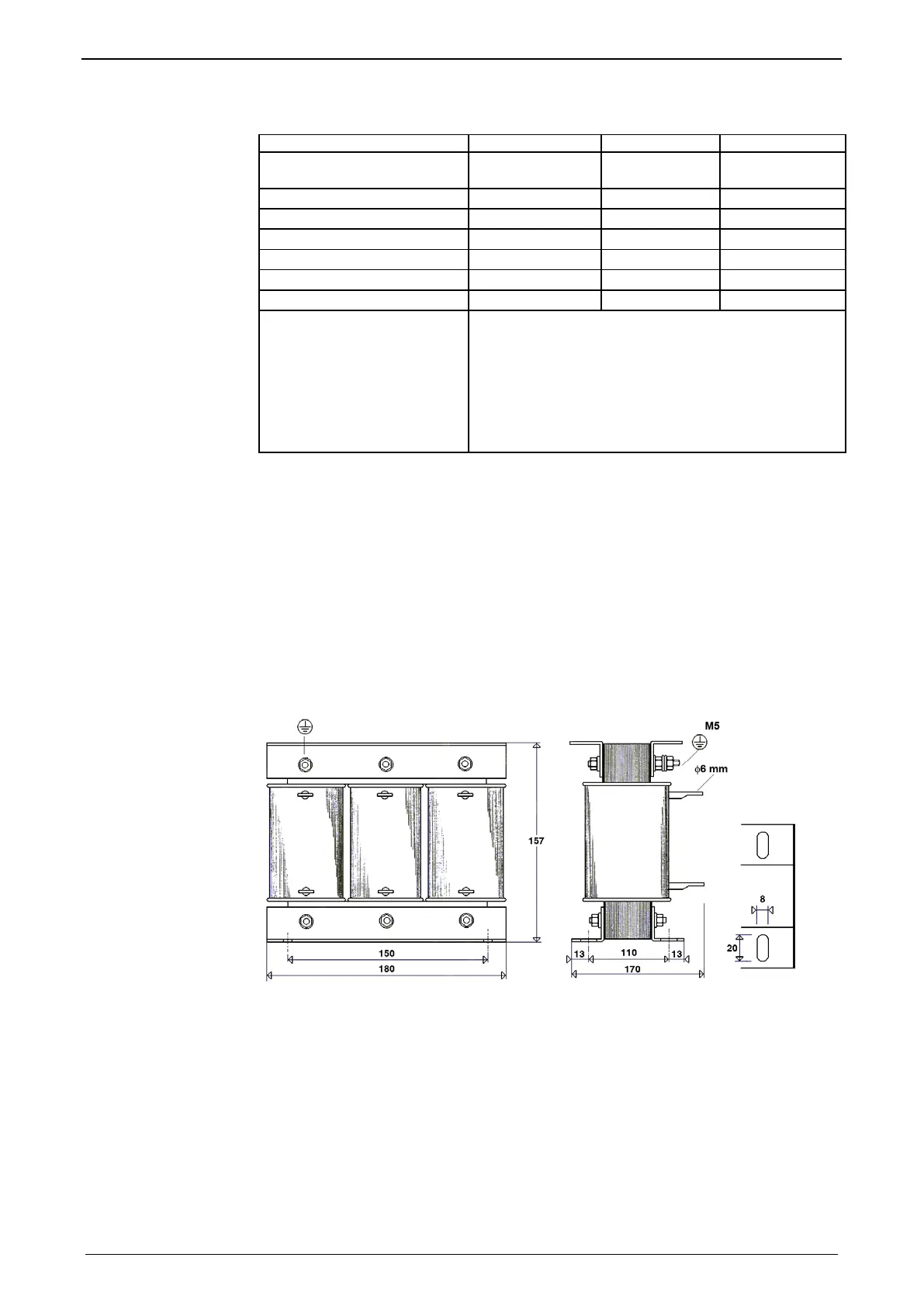

Dimensional drawing: LCG-0055-0.45 mH
Caution!

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
