Compax3 device description
C3I12T11
192-120113 N08 C3I12T11 - December 2010
C3H050V4
2.5 / 16mm
2
Massive Multiwire
C3H090V4
16 / 50mm
2
25 / 50mm
2
C3H1xxV4
25 / 95mm
2
35 / 95mm
2
The standard connection clamps of Compax3H090V4 and Compax3H1xxV4
are not suitable for flat line bars.
Cover plate for cable feed through
The cable feed through holes have the following dimensions:
28.6mm for M20, PG16 and ½” NPT (America).
37.3mm for M32, PG29 and 1” NPT (America).
22.8mm for M20, PG16 und ½” NPT (America).
28.6mm for M25, PG21 and ¾” NPT (America).
47.3mm for M40, PG36 and 1¼” NPT (America).
54.3mm for M50, PG42and 1½” NPT (America).
22.8mm for M20, PG16 and ½” NPT (America)
28.6mm for M25, PG21 and ¾” NPT (America)
Recommended tightening torques
C3H050V4
4Nm / 35lb-in 4Nm / 35lb-in 4.5Nm / 40lb-in
C3H090V4
6-8Nm / 53-70lb-in 6-8Nm / 53-70lb-in 6-8Nm / 53-70lb-in
C3H1xxV4
15-20Nm / 132-177lb-in 0.7Nm / 6.1lb-in 42Nm / 375lb-in

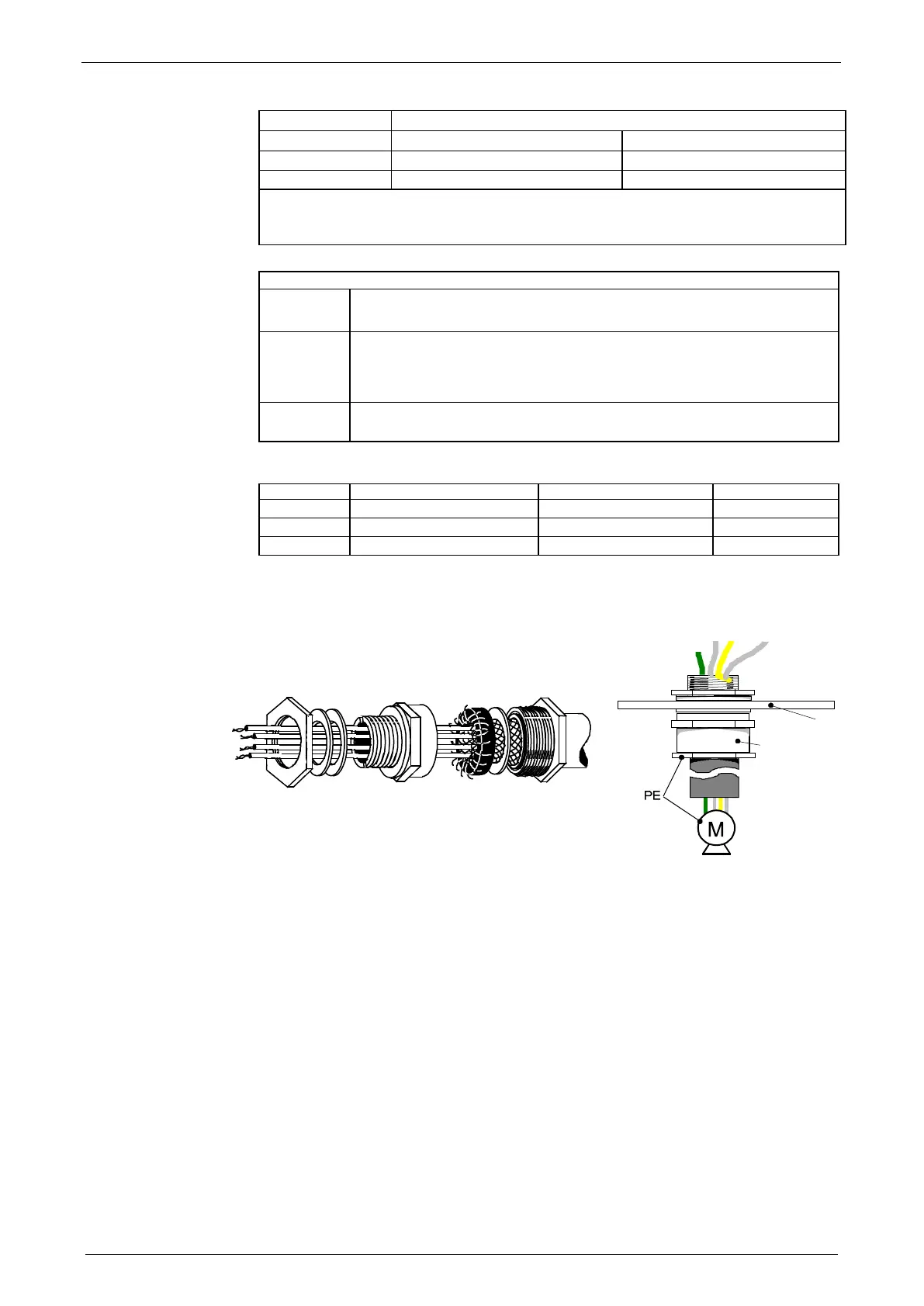

Cable joints
Use metallic cable joints permitting a 360° shielding in order to comply with the
EMC directive.
2
1
1: Cable feed through plate
2: metallic joint with 360° shielding for EMC compliant design
The device must be grounded without interruption according to EN 61800-5-1. The
mains supply lines must be protected with a suitable fuse or a circuit breaker (FI
switches or earth fault fuses are not recommended).
For installation in accordance with EN 61800-5-1 mm Europe:
For grounding without interruption, two separate protective leads (
²
cross-section)
or one lead (>10mm
²
cross-section) are required. Each protective lead must meet
the requirements according to EN 60204.
