IntelliTouch

Control System User’s Guide

The Main Outdoor Control Panel

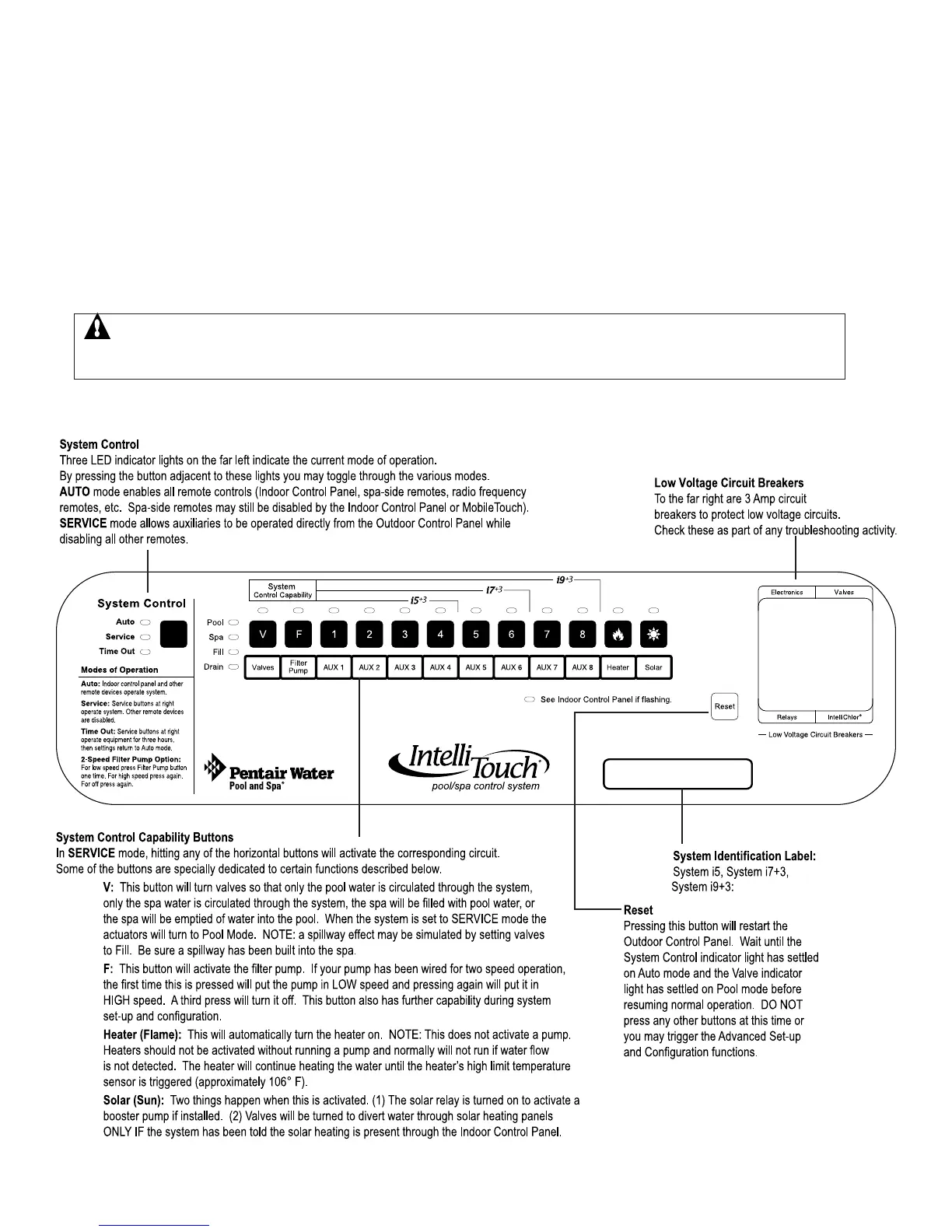

The main Outdoor Control Panel consists of the Personality board mounted onto a motherboard which

is housed inside a Load Center or Power Center. The Outdoor Control Panel includes, control buttons

for pumps, lters, and heater, red status lights, and a Reset button. The IntelliTouch Personality board

denes the type of equipment installed. The Outdoor Control Panel can be used to override the Indoor

Control Panel functions for pool service and for equipment set up. The Outdoor Control Panel is hinged

to allow access the rear Personality board.

Note:Pressing System Control buttons at any of the Outdoor Control Panels, will affect the entire

system.

CAUTION: Be sure the High Voltage Cover Panel is in place over the bottom edge of the outdoor control

panel. DO NOT OPERATE ANY CONTROLS BEFORE READING THE FOLLOWING INFORMATION.

Shared Equipment Systems i5+3, i7+3, i9+3

Main System
