IntelliTouch
®
Control System User’s Guide
79
Feature Circuits
Feature Circuits provide a way to control equipment which is not controlled by an AUX circuit.
Typically AUX circuits are used for high voltage equipment such as pumps and lights, whereas Feature
Circuits are used for valve actuators. However, Feature Circuits can go beyond this denition, and be
used in other creative ways. For example, Feature Circuits may be used to create a Macro circuit in
which several other circuits can be switched on or off with the same button. This is accomplished by
rst choosing a name for your Macro and assigning that name to a Feature Circuit. There is a limit of 10
Feature Circuits in the system.
• ValveActuators - Feature Circuits may be assigned for controlling up to ve valve actuators per
Load Center, which requires the installation of the optional Valve Module P/N 520285 that include
three actuators outputs (C, D, and E) per Load Center. For more information about conguring valve
actuators, refer to
page 70.
• 2-SpeedPump- A Feature Circuit may be assigned as a way to turn a 2-speed Filter Pump to high
speed.

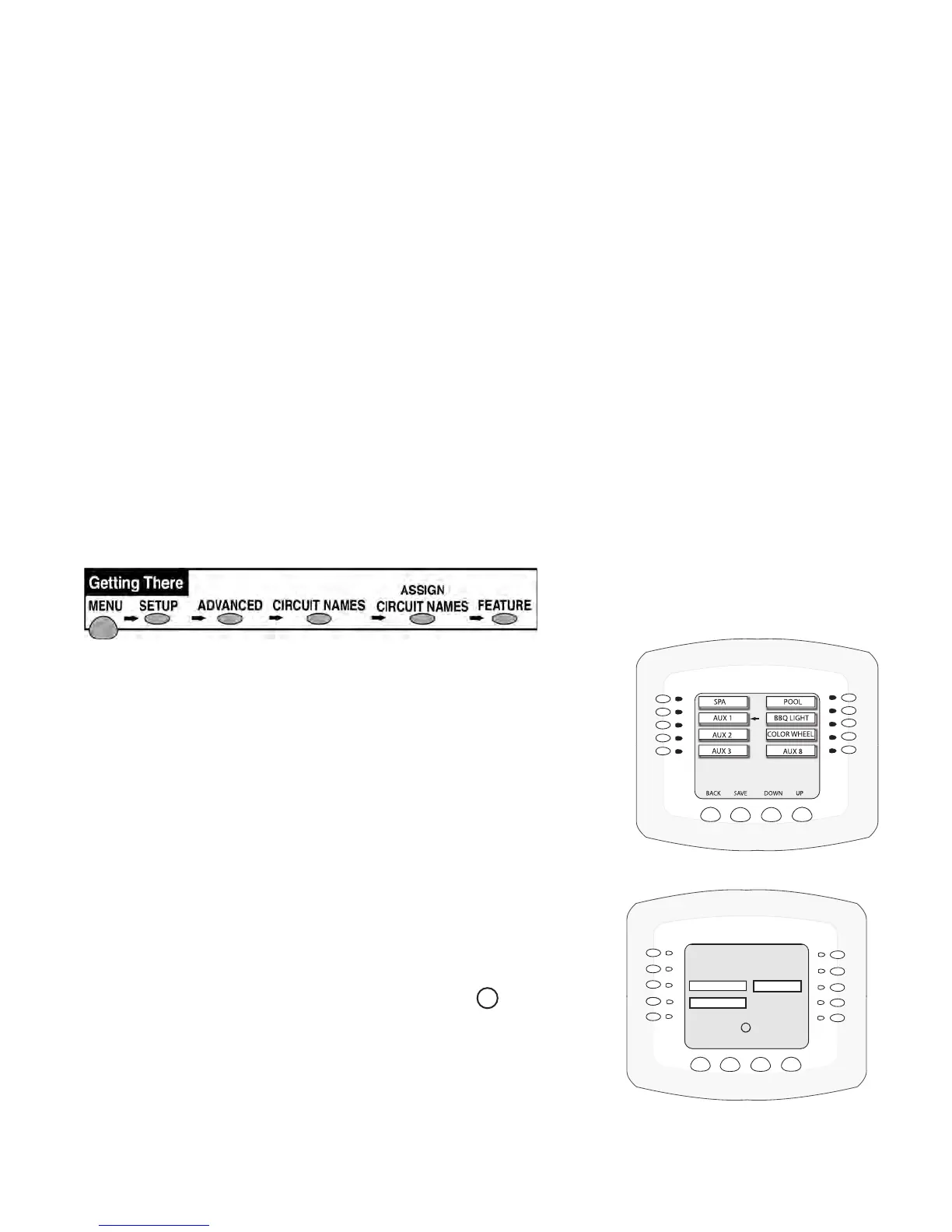

Assign a Circuit Name to a Feature Circuit
Note:When assigning circuit names in the Indoor Control Panel, use the written list of circuit names
and assigned buttons for the Outdoor Control Panel to make sure that they match.
1. Press the button next to the circuit that you wish to assign a name
to. A small arrow pointing to the name is displayed.
2. Use the Up and Down buttons to scroll through the list of preset
circuit names (see page 37). If the preset circuit names are not
suitable, you can create a custom name (see page 38). Press the
Back button twice and select “Create Custom Names” to create a
custom circuit name.
3. Press the Savebutton to save the Feature circuit name and return
to the Feature screen.
4. To add another Feature circuit, press the button next to
FEATURE to add another Feature circuit and repeat step 1, 2
and 3.
5. Press the Exitbutton to return to the main screen.
ToviewFeaturecircuitsfromthemainscreen:Press the DISPLAY
button until the Feature circuit screen is displayed. The F icon
located in the middle lower part of the screen indicates that Feature
circuits screen is selected.
MENU/SETUP/ADV/AUX/NAME/FEATURE
MENU
HEAT
LIGHTS
DISPLAY
EDGE PUMP
CLEANERS
F
MON 4:32AM
AIR TEMP 92˚
ALL LIGHTS
WATER FALL
CLEANERS
Feature circuits screen
