iS10 circuit/button setup
Configuring Remote Control Button Circuits
(iS4, iS10, SpaCommand Spa Side Remote, Quick-
Touch (QT4) and phone remote)
From the spa side remote screen you can congure the iS4, iS10 and
SpaCommand
®
buttons to control different pool/spa functions, including
IntelliFlo VF 3050, VS 3050 and VSF+SVRS pump speeds. Up to two iS4
remotes, and four iS10 and SpaCommand remotes can be connected to an
IntelliTouch system. To assign a circuits to spa-side remote buttons:
1. Press the button next to CONFIGURE iS4’S or
CONFIGURE 10 BUTTON SS’s or CONFIGURE QUICKTOUCH
to select the remote.
• ForiS4: Press the top button to access the setup screen for iS4#1
and iS4#2 . See note below if multiple iS4 remotes are installed.
• ForiS10andSpaCommand: Press top button to select 10
BUTTONSPASIDE#1 for the rst iS10 or SpaCommand remote.
Choose which one of the four remotes you are conguring, 10
BUTTONSPASIDE#1#2,#3or#4. See note below if multiple
iS10 or SpaCommand remotes are installed.
• ForQuickTouch: Press the button next “CONFIGURE QUICKTOUCH”
to access the setup screen.
2. Onthenextscreen:Press the button next to the circuit you wish
to assign. A small arrow is displayed pointing to the name of that
circuit. Use the Up and Down buttons at the bottom of the screen
to scroll through the iS10 or iS4 circuit names (SPA, POOL, AUX
1-8, HEAT BOOST, HEAT ENABLE, INCREASEPMPSPD,
DECREASEPMPSPD, NONE). ForQuickTouch: (SPA, POOL,
AUX 1-4, POOL). Note:Whenassigningbuttonsto“Increase”and
“Decrease”theIntelliFloVF(GPM),VS(RPM)andVSF+SVRS
(RPM/GPM).Eachpressoftheassignedbuttonincreasesor
decreasesthepump’s“step”owrateorspeeduntiltheGPMor
RPMisreachedasspeciedinthe“SPASIDEINFLOCONTROL”screen
(onthe10ButtonSSscreen).Besuretosetthe
pumpaddressnumber(intheIntelliFloscreen)forthepumpyou
wishtocontrol.

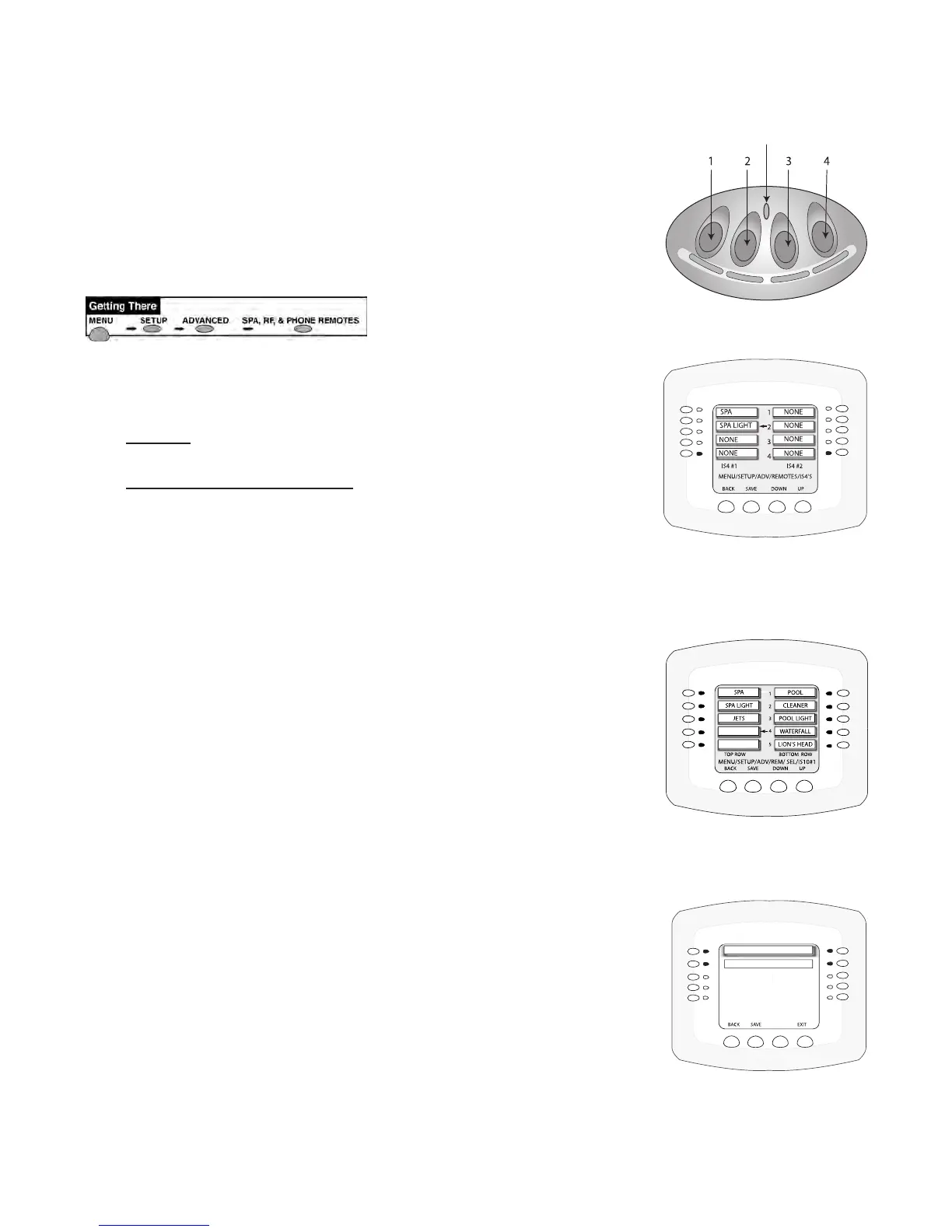

iS4 circuit/button setup
DEC PMP SPD
INC PMP SPD
iS4 spa side remote
LED
Note: For systems with four iS10/SpaCommand remotes, adding one or two
iS4 remotes will affect button function assignments as follows: Assigned button
functions 1 - 4 on iS4 #1 are linked with the same functions to buttons 1 - 4 (top row) of
iS10 #4. Also, buttons 1 - 4 on iS4 #2 are linked to buttons 6 - 10 (bottom row) of iS10
#4. For example, button 6 on the bottom row of iS10 #4 is linked to button 1 of iS4 #2,
button 7 on iS10 #4 is linked to button 2 of iS4 #2, etc.
INTELLIFLO PUMP # 1
STEP SIZE 10 GPM
SPA SIDE IFLO CONTROL
screen
