IntelliTouch
®
Control System User’s Guide
26
Manually Enabling Expansion Centers
The following describes how to manually enable an additional Expansion Center containing the Outdoor
Control Panel).
Note: For information about how the IntelliTouch automatically enables wired controllers, refer to the
“Automatically Enabled Wired Controllers,’’ page 25.
Up to three (3) additional Expansion Centers can be installed in the IntelliTouch system. The
IntelliTouch system automatically assigns the “main” Load Center or Power Center as number 1, and
other additional Expansion Centers as number 2, 3, or 4.
An Expansion Center (Load Center or Power
Center) includes an Outdoor Control Panel (model i5x or i10x) which is connected to the main Load
Center or Power Center.
Note:If the rst Expansion Center was installed at the same time as the main Load Center or Power
Center, it will automatically be assigned as number 2. Other additional Expansion Centers need to be
manually assigned.
To manually enable additional Expansion Centers:
1. On the Outdoor Control Panel, press the Resetbutton.
2. The three (3) red SystemControlLEDs will be lit (solid). Wait a few seconds then press auxiliary
Button1. The three red SystemControlLEDs will begin ashing. The system is ready to enable
additional Expansion Centers.
3. On the Expansion Center, press the Resetbutton and wait a few seconds, and press Button1. The
System Control LEDs on the Expansion Center will begin ashing.

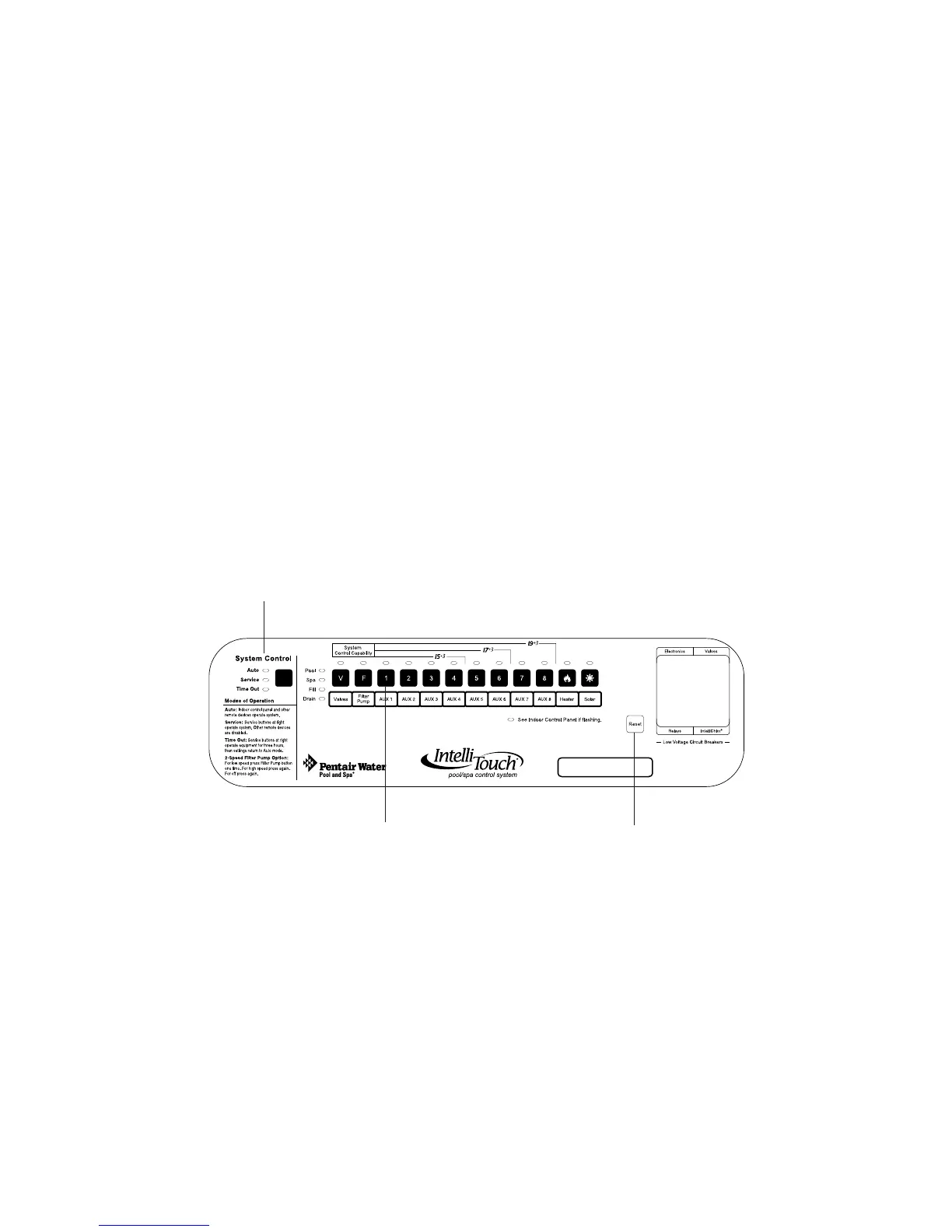

Main Outdoor Control Panel (Located in the Load Center or Power Center)
Reset button
Button #1
Three System
Control LEDs
To Next Page
