Using the MagicStream Laminar Features
The MagicStream laminar features are displayed on the MagicStream screen. Each time the
MagicStream laminar is switched on using the Light screen circuit buttons, it resumes with the same
features in operation as when last switched off. The MagicStream features are as follows:
Thumper - Pressing this button creates a “wrinkle” in the laminar stream, producing a brilliant spot of light in
the laminar arc.
Reset - Pressing this button reverts to the Random color changing mode with the Thumper ON.
Toggle Mode - Pressing this button (each successive OFF/ON combination) will cycle through Sync,
Random and Party. Color changing mode - The color of the light changes automatically, according to one the
following three programs:
Sync - Colors will change at ten second intervals. In this mode, multiple laminars will synchronize
colors together. Note: To sync multiple laminars (two or more AUX circuits), be sure to define the
“MagicStream” circuits in the Circuit Functions screen and also define the AUX circuits in the Lights
screen (CONFIGURE, 0-6 or 7-12).
Random - Colors will change at ten second intervals in a random sequence. In this mode, multiple
laminars will NOT synchronize colors together.
Party - Colors will change randomly and slowly at first, then speed up, until the sequence ends with
quick flashes and strobes. The sequence then repeats, beginning with the slow changes. In this
mode, multiple Laminars will NOT synchronize colors together.
Hold/Stop - Select Hold/Stop to capture the current color effect while colors are changing. The colors will stop
changing. Selecting Hold/Stop again will resume the color changing mode.

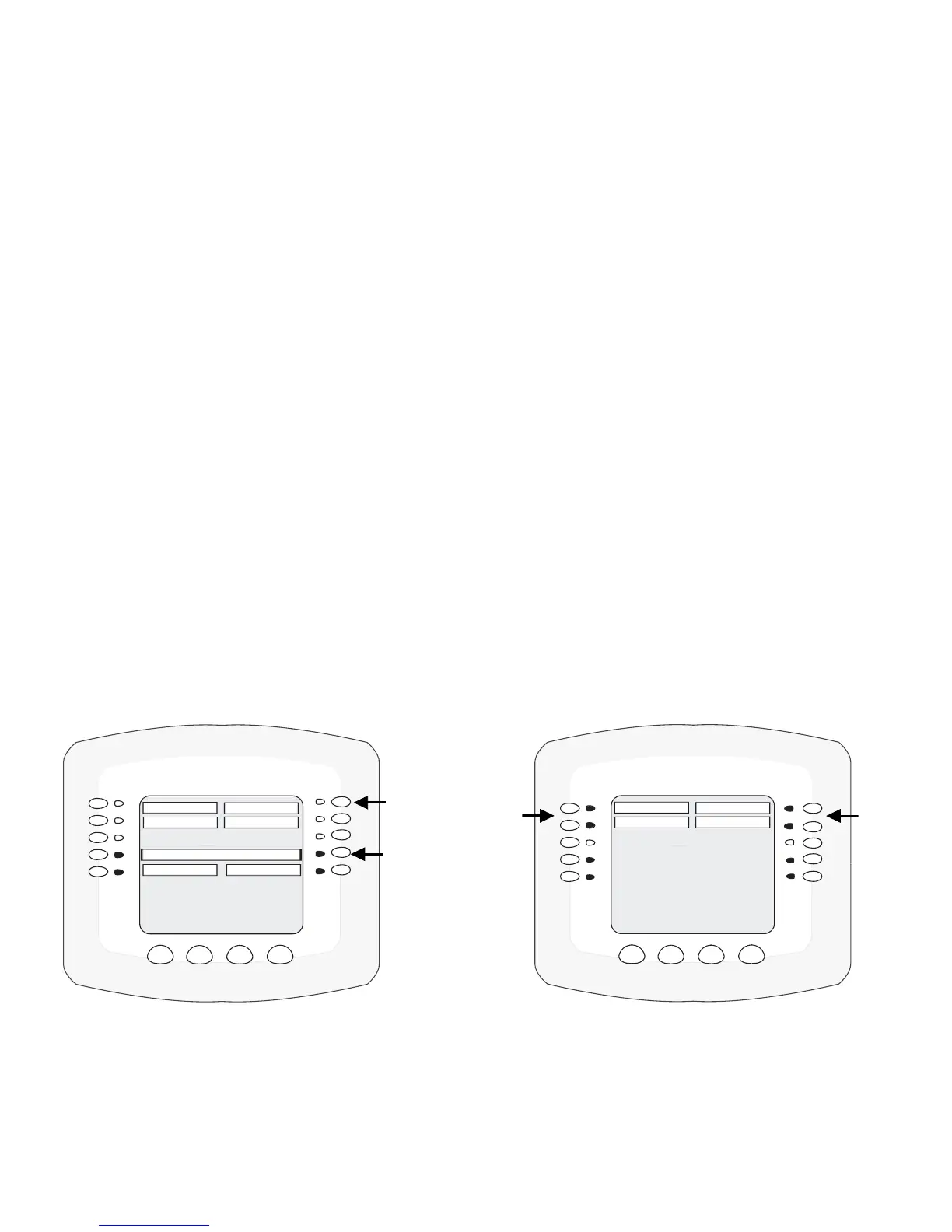

To access the MagicStream laminar features screen:
1. From the main screen, press the Lightsbuttonon the bottom of the screen.
2. Press the button next to MAGICSTREAM to access the laminar features screen.
3. To activate a laminar feature, press the button next to the desired feature.
MagicStream
circuit buttons
LIGHTS
ALL OFF
SYNC
SAVE ALL ON
CONFIGURE
POOL LIGHT
NEXT GROUP
INTELLIBRITE MAGICSTREAM
SPA LIGHT
POOL LAMINAR 1
POOL LAMINAR 2
LIGHTS/MAGICSTREAM
EXIT
BACK
RESET
THUMPER
TOGGLE MODE
HOLD / STOP
