IntelliTouch
®
Control System User’s Guide
57
IntelliFlo menu options
To access the following IntelliFlo screens, press
MENU > SETUP >EQUIPMENT > INTELLIFLO:
IntelliFlo main pump screens: Two status screens (pumps 1-4, pumps 5-8), each displaying the IntelliFlo
pump number assignments and assigned circuit name for each pump
• IntelliFlo VF 3050 Set Parameters screen (page 58-65): From these screens you can set up the pump
parameters (filtering, priming, backwash, vacuum), assign a circuit name, assign up eight pump flows
(GPM), or view the current pump status

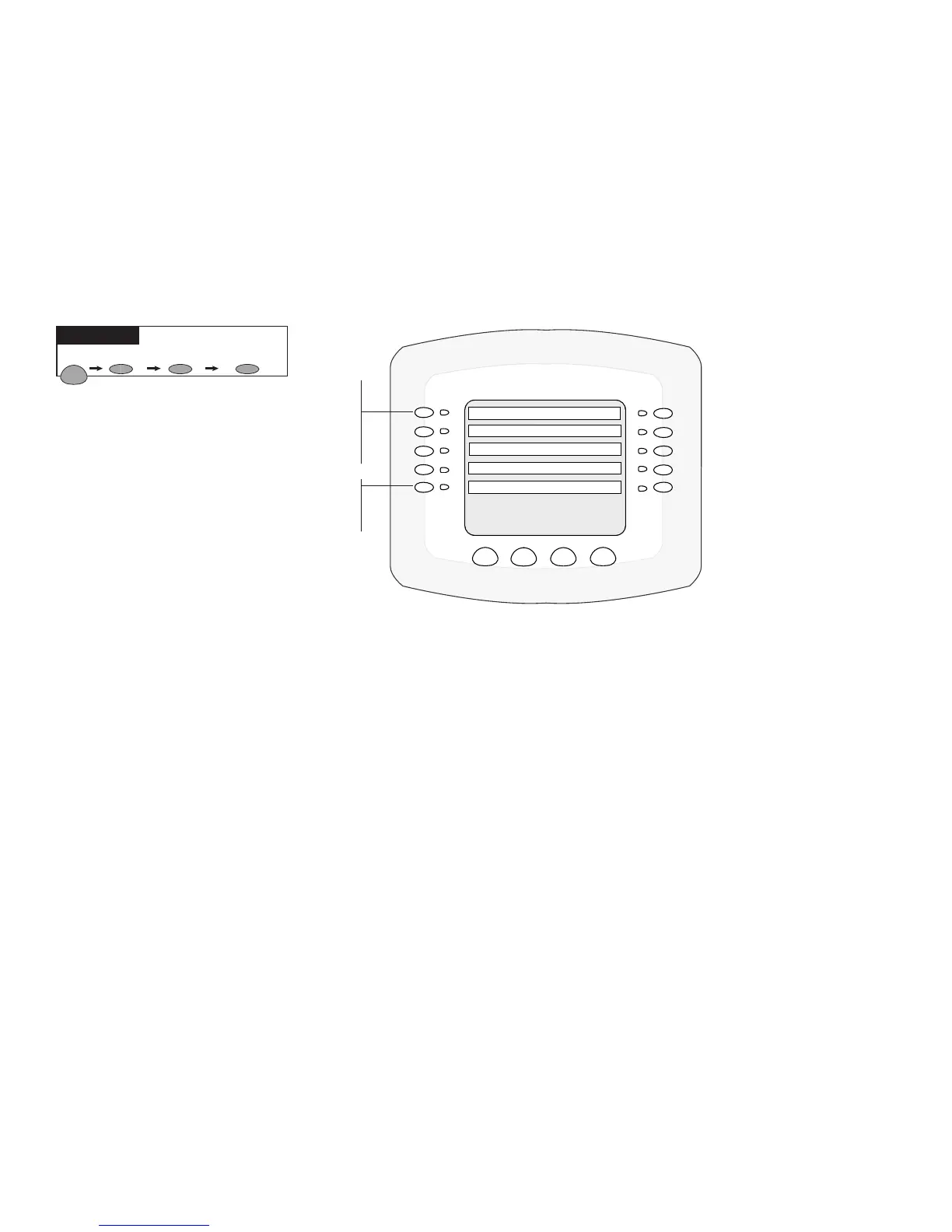

IntelliFlo main pump screen (assign pump type, circuit, address)
From these screens you can assign the pump type, circuit name and address for each pump.
MENU SETUP EQUIPMENT INTELLIFLO
Getting There
MENU/SETP/EQUIP/IFLO/SELECT
BACK EXIT
IFLO VS 3050 #2 SPA
NEXT GROUP OF PUMPS
IFLO VF 3050 #1 POOL
IFLO VS 3050 #4 AUX 3
IFLO VSF+SVRS #3
Press this
button to view
pumps 5-8
To access the pump
parameters, press
selected pump
button (1-4)
NOTE: INTELLIFLO “FREEZE” PROTECTION - If the IntelliFlo pump is on due to a freeze condition (not
switch on from a relay circuit state), and if a freeze speed/flow is set in IntelliTouch, this setting takes priority
even if the previous setting is lower than the default circuit speed. If no “freeze” protection is set, the pump will
be forced on at the default circuit speed/flow. Any programmed or manual operation that actually switches on a
circuit, will cause the pump to run at that speed if it is higher.
NOTE: INTELLIFLO IN “SERVICE MODE” - The IntelliFlo pump will STOP
when IntelliTouch is in ‘Service” mode. The pump will not stop if the communication cable is not connected or
due to the pump’s firmware.
NOTE: INTELLIFLO VF PUMPS - If the IntelliFlo VF pump is just starting (requiring a prime) and SOLAR is
available, solar will be delayed for five (5) minutes to allow the pump to prime. This only applies for IntelliFlo
pump(s) assigned as to a “pool” pump.
NOTE: INTELLIFLO AND CLEANER INTERLOCK: In order to safguard the IntelliFlo pump and other
equipment such as a pressure side cleaner booster pump, IntelliTouch monitors the main pump (if it is
an IntelliFlo). If the pump stops, IntelliTouch will delay the cleaner function. This may take as much as 30
seconds. IntelliTouch will hold the cleaner off until the pump is running again. When the pump is running again
IntelliTouch will restart the cleaner delay, as if it was just starting to insure water in the plumbing.
IntelliTouch requires a bit more delay since the circulation pump may be on any address, e.g. #5, if there are
four IntelliFlo VS pumps at 1 -4, and a VF at #5. So by default no pump is assigned. When you go into the menu
“Circuit Functions” (see page 39, Menu>Setup>Advanced>Circuit Functions), if you assign a circuit as “Master
Cleaner” an extra line will appear at the bottom of the screen. You can then select NONE if you don’t have or
want an IntelliFlo interlocked, or numbers 1 - 8 to identify the main circulation pump.
