IntelliTouch
®
Control System User’s Guide
12
Switching on Lights Manually
Up to 12 individual lights (IntelliBrite
®
LED light, MagicStream
®
laminars, SAm
®
or SAL color lights)
can be switched on or off from the Lights screen. There are two light screens which can display up to
six light circuits. Use the “Next Group” button to access each group of six lights. You can also use the
“ALL ON” or “ALL OFF” buttons to switch all lights on or off. The “SYNC” button will also switch
on then sync all color changing lights to synchronize their colors when using the “Color Swim” feature.
You can also congure IntelliBrite
®
lights, MagicStream laminar lights, and setup the Color Swim, and
Color Set special lighting features from the Lights screen. Lights that have dimming functionality can
be also dimmed from the Lights screen. SAm, SAL, ber optic, Halogen lights, and IntelliBrite cannot be
dimmed. For more information, refer to “Setting up Lighting Options,” page 42.
To switch on lights, press the Lightsbutton on the bottom of the Lights screen.
1. To switch a light on, press the button next to the
name of the light. Up to six (6) light circuits can be
displayed in the upper part of the Light screen.
2. If there are more than six (6) light circuits assigned,
press the NEXTGROUP to see these circuits.
• Press the AllON button at the bottom of the screen
to switch all the lights on.
• Press the All OFF button at the bottom of the screen
to switch off the lights when you are done.
Note: Use the SYNC button to switch ON all IntelliBrite,
MagicStream laminar lights, SAm, SAL, or FIBERworks
®
color changing lights to synchronize their colors when using
the “Color Swim” lighting feature.
View and
configure
next six light
circuits
LIGHTS
ALL OFF
SYNC
SAVE ALL ON
CONFIGURE
POOL SAM 1
POOL LIGHT
NEXT GROUP
SPA LIGHT
SPA SAL
COLOR SET
COLOR SWIM
Switch all
lights ON
Switches all
lights OFF
LIGHTS
ALL OFF
SYNC
SAVE ALL ON
CONFIGURE
POOL SAM 1
POOL LIGHT
NEXT GROUP
SPA LIGHT
SPA SAL
COLOR SET
COLOR SWIM

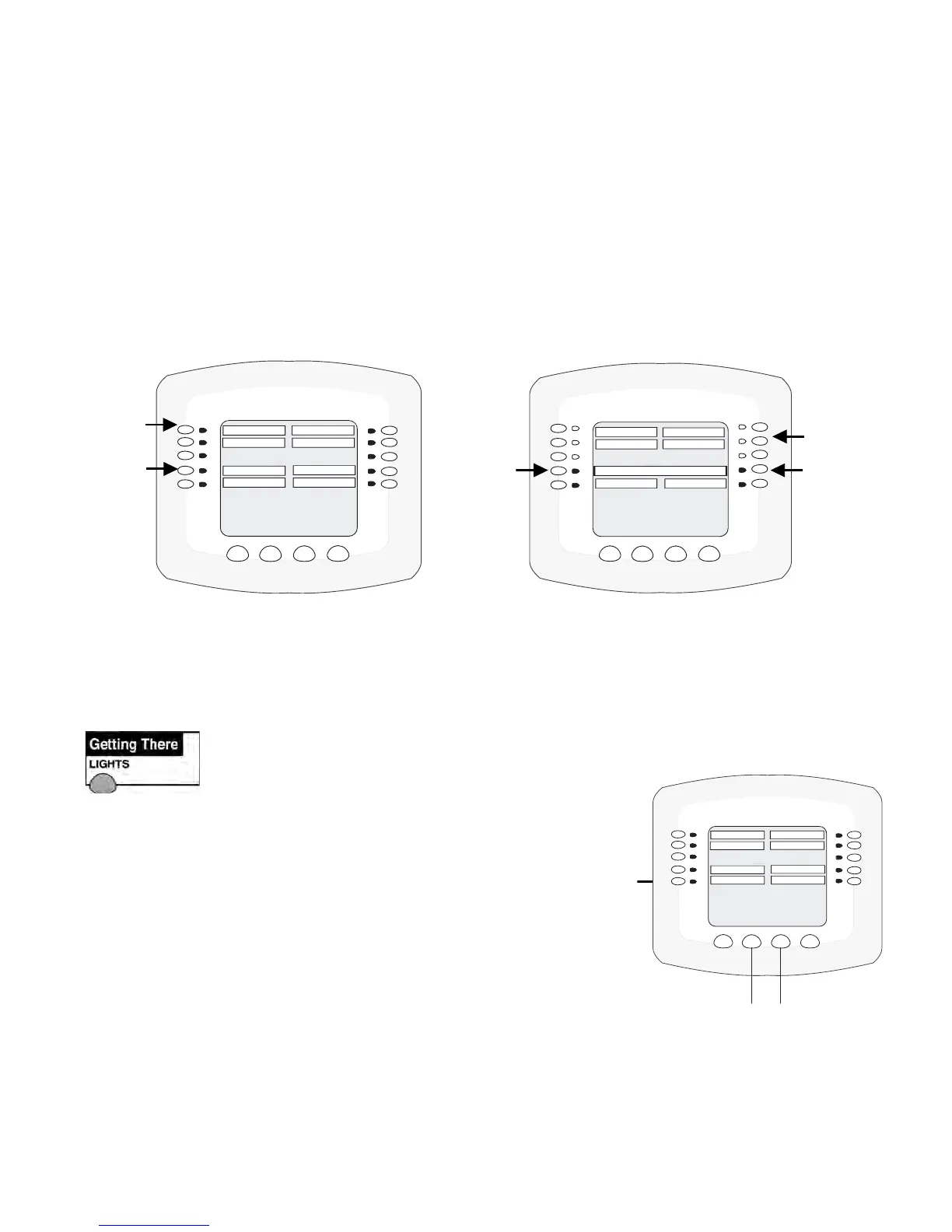

Lights screen (SAm/SAL Color Swim and Color Set)
ON/OFF
Light button
assigned to
a circuit
Color Swim
and Color
set buttons
Lights screen with IntelliBrite lights
and MagicStream laminars
IntelliBrite
button for
Color and
Mode Light
show
LIGHTS
ALL OFF
SYNC
SAVE ALL ON
CONFIGURE
POOL LIGHT
NEXT GROUP
INTELLIBRITE MAGICSTREAM
SPA LIGHT
POOL LAMINAR 1
POOL LAMINAR 2
