IntelliTouch
®
Control System User’s Guide
96
Single Body Systems Model i5+3S, i9+3S
Operates the same as i5+3, i9+3, except no valve controls.
Dual Body Dual Equipment System Model i10+3D
The i10+3D is designed to operate two sets of pool equipment. Each set of a equipment (Pool or Spa) can
control one temperature setting. Operation same as i9+3 except S and P buttons operate independent filter
pumps and the Heater and Solar buttons operate independent heating systems and no valve controls.
Expansion Centers Model i5x, i10x
Expansion Centers provide additional valve and auxiliary circuits. They are designed to operate with base
systems: i9+3, i9+3S, i10+3D. The “Auxiliary circuit control capability” buttons operate the same way as on the
main base Outdoor Control Panel.

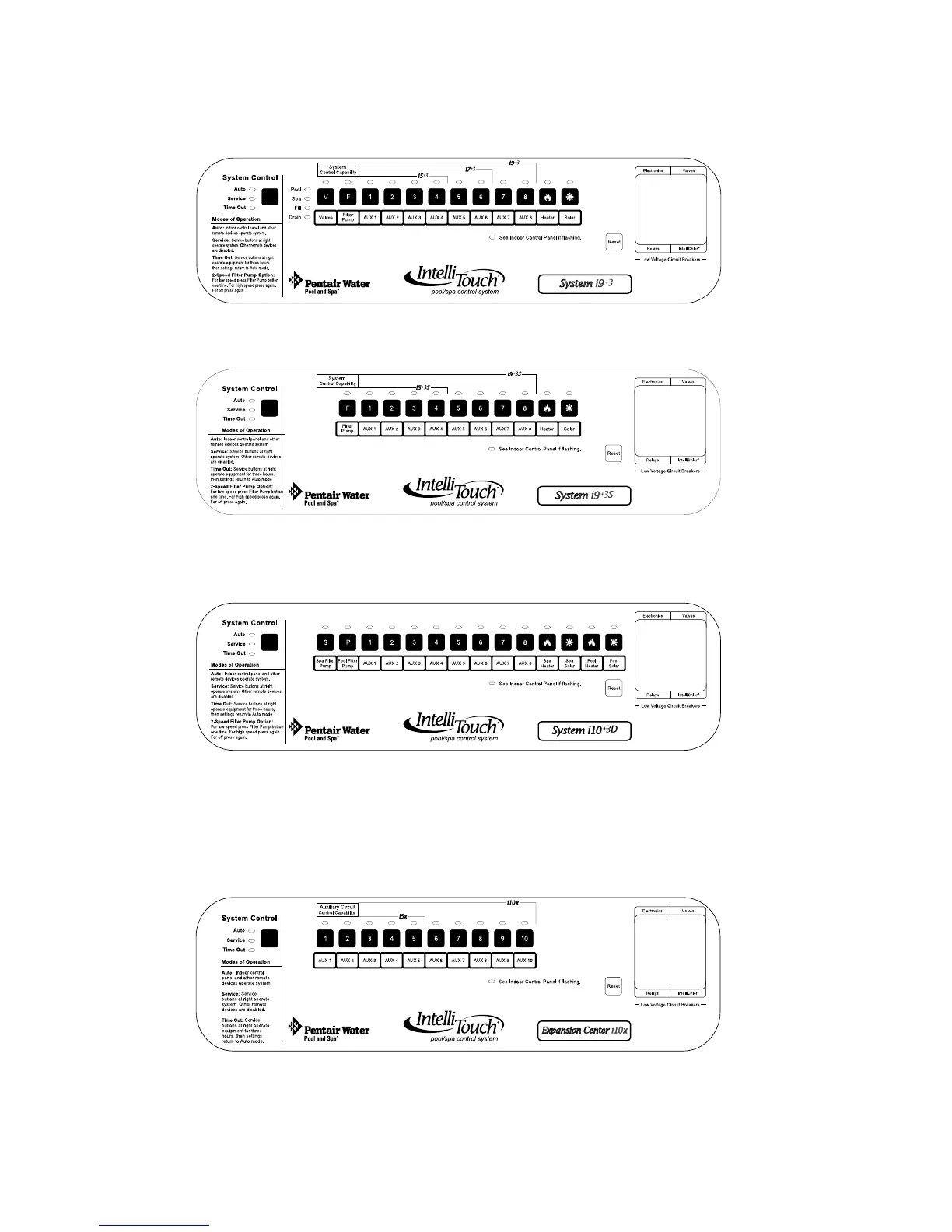

IntelliTouch Outdoor Control Panels
For IntelliTouch system wiring diagrams, see pages 41-43.
Shared Equipment Systems Model i5+3, i7+3, i9+3
