Manually Updating Between Indoor and Outdoor Control Panels
When the IntelliTouch system conguration settings are changed, or a new component is added,
the updated information is automatically communicated to all of the control panels. Conguration
settings reside in all the controllers and the outdoor control panel. This feature provides system
backup information in the event one of the controllers or control panels is not operational. To update
IntelliTouch system conguration information between the indoor and outdoor controllers:
Go to the Advanced screen.
1. From the Advanced screen, press the 2nd.and4th.buttonsatthesametime. The Service Personnel
screen is displayed.
2. Press the button next to GetImagefromOutdoor to download system conguration data residing in
the outdoor control panel memory to the Indoor or MobileTouch controller.
3. Press the button next to SendImagetoOutdoorto upload system conguration data residing in the
Indoor or MobileTouch controller to the outdoor control panel. A “stopwatch ” icon ashing indicates
data is being transferred.
4. When the transfer is nished, press Backto exit.
5. Press Exitto return to the main screen.

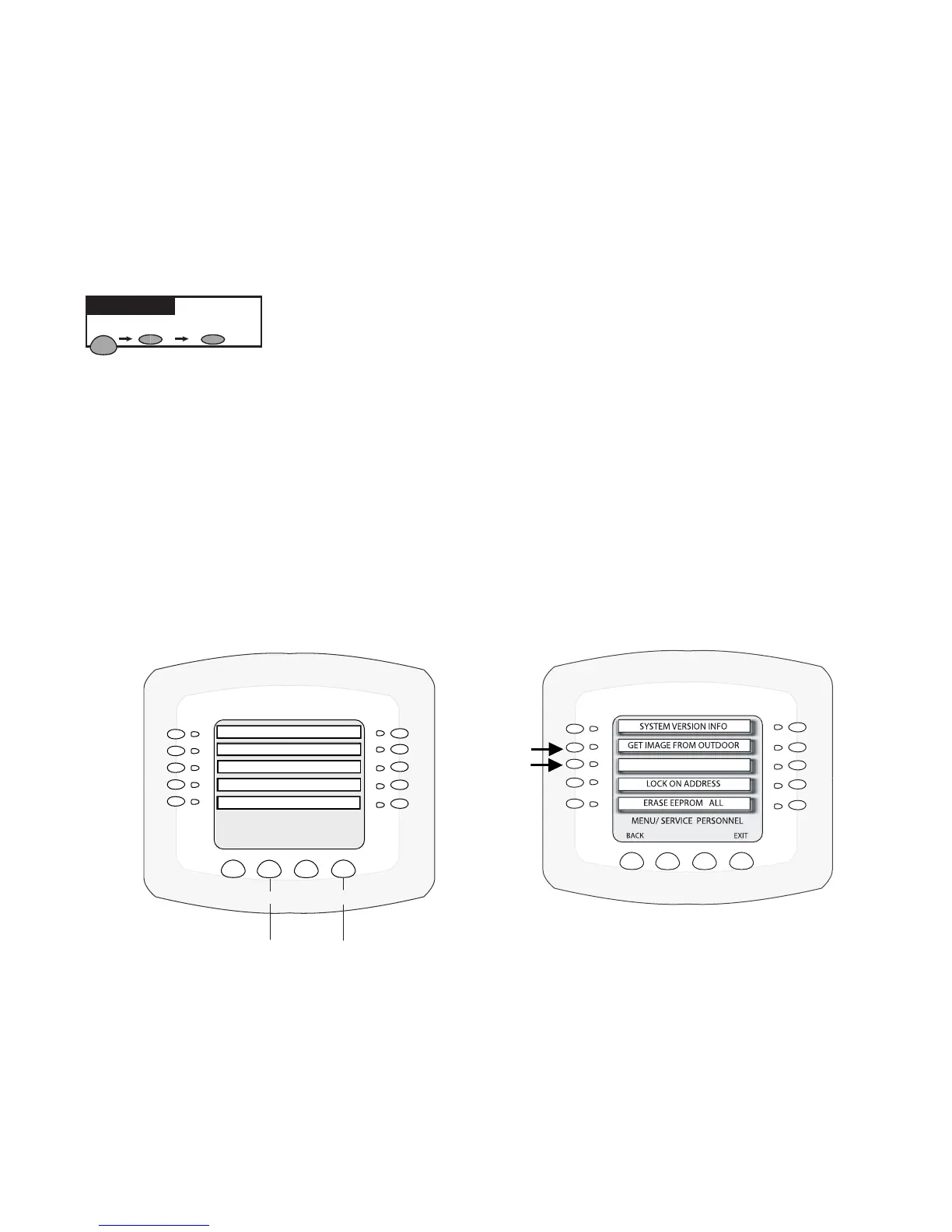

MENU SETUP ADVANCED
Getting There
SEND IMAGE TO OUTDOOR
MENU/SETUP/ADV
BACK EXIT
CIRCUIT NAMES
CIRCUIT FUNCTIONS
CONFIGURE VALVES
SPA, RF, & PHONE REMOTES
CALIBRATE
Press both buttons at the same time to
access the Service Personnel screen
Button 2 Button 4
