IntelliTouch
®
Control System User’s Guide
5
IntelliTouch Personality Kit Contents
The following items are included in the IntelliTouch Personality Kit.
• An IntelliTouch interface
• Outdoor Control Panel. Includes a main controller circuit board and a Personality circuit board.
• Power Relays - (Models i5+3, i5S+3 no relays, i7+3 Qty. 2, i9+3, i9+3S Qty 4, i10+3D Qty 5,
i5x (no relays, i10x (5 relays)
• Valve Actuators - Qty 2 (Models i5+3, i7+3, i9+3)
• Temperature Sensors - Water Sensor (with long cable, including o-ring and hose clamp),
Air Sensors (with short cable). For i10+3D only, two Water Sensor (with long cable)
• Wiring Diagram Label for models i5S+3 and i9+3S and i10+3D. For models i5+3, i7+3, i9+3,
refer to the Load Center and Power Center inside front door.
• Load Center or Power Center parts bag: Includes relay screws (see page 2).
• Label Sheet - A set of adhesive labels for custom identication (used to label the outdoor
control panel buttons). Use a pair of ne-tip tweezers to remove the labels from the sheet.
• IntelliTouch Personality Kit Installation Guide (P/N 521074).
Note: For information about the IntelliTouch Indoor Control Panel and MobileTouch
®
Wireless
Controller, refer to the IntelliTouch System User’s Guide (P/N 521075).
Select
Menu
Alarm

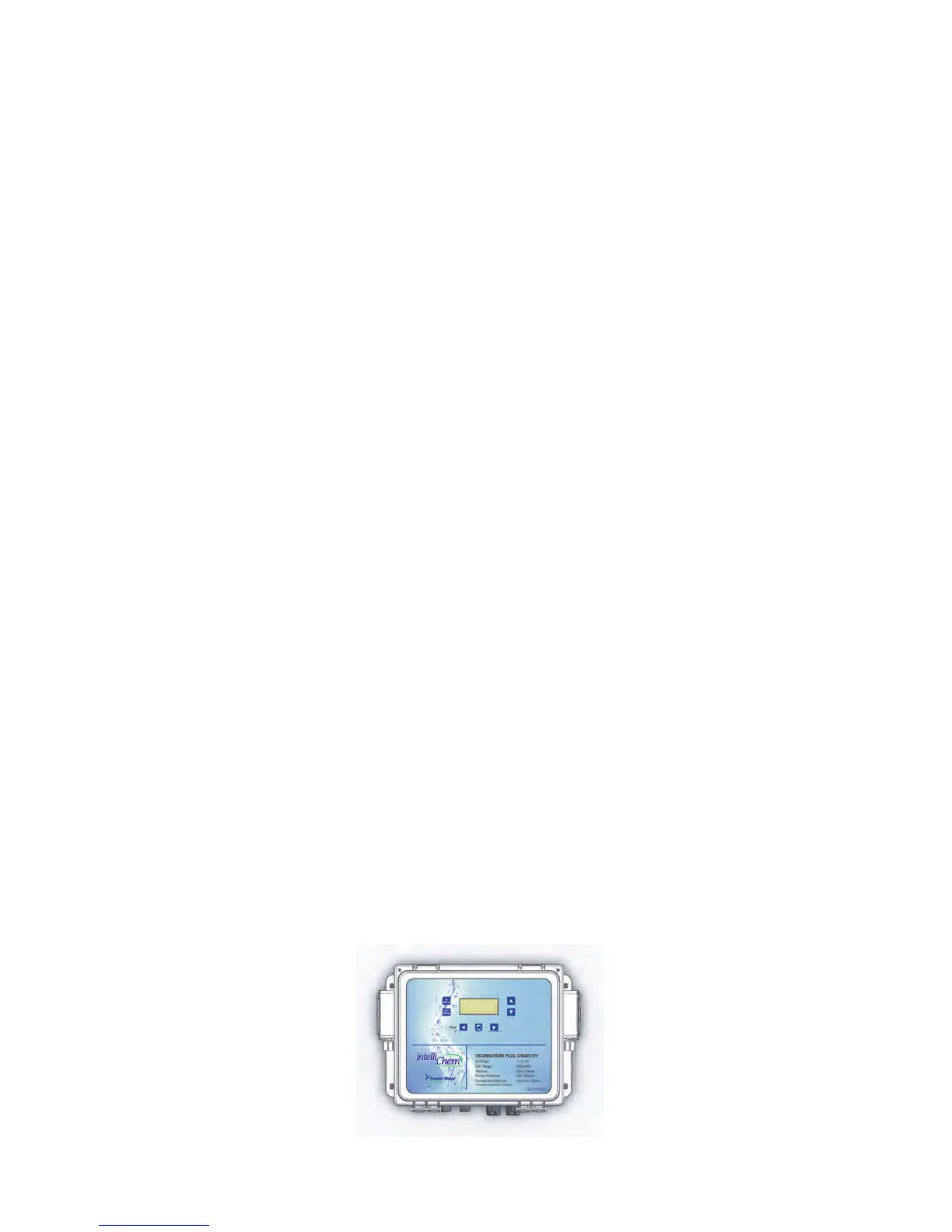

IntelliChem
®
Water Chemistry Controller (P/N 521356)
Optional Equipment (IntelliChem)
• IntelliChem
®
no-pump (P/N 521357), one-pump (P/N 521356), two-pump (P/N 521355)
• IntelliChem Installation and User’s Guide (P/N 521363)
• ExpansionKits: Models i5X (P/N 521225) and i10X (P/N 521226), offer ve or ten additional
Auxiliary Circuits for systems i9+3, i9+3S and i10+3D. Each IntelliTouch Expansion Kit requires
a Load Center (P/N 521213) or Power Center (P/N 521214). Up to three Expansion Kits and
Load or Power Centers may be added to a system, for control of up to 38 Auxiliary Circuits (40
auxiliary circuits for i10+3D).
• SingleEquipment:PoolOnlyorSpaOnlyApplications– The IntelliTouch i5S+3 (P/N 521219)
and i9+3S provide advanced automation for a single body of water. The i5+3S (P/N 521223) and
i9+3S (P/N 521224) Personality Kits includes four auxiliary circuits plus lter pump operation.
Five relays are included in the Load Center. The i9+3S Personality Kits includes eight auxiliary
circuits plus lter pump operation and the +3 option (create a Feature Macro circuit for valve
actuators without using an existing output aux circuit). Four relays are included in the kit and ve
in the Load Center. You can create a Feature circuit for valve actuators without using an existing
output auxiliary circuit, and special light functions for color lighting. This model also allows HI-
TEMP and LO-TEMP settings.
