IntelliTouch
®
Control System User’s Guide
54
Chlorine Generator
The IntelliTouch system is designed to operate with the following salt chlorine generators:
• Pentair Water Pool and Spa
®
IntelliChlor
®
• GoldLine AquaRite
™
• Clear Tech Automation AutoClear
®
Plus
• AutoPilot PoolPilot
®
Digital
Note:Call your manufacturer for compatibility with IntelliTouch
systems.
Activating the Chlorinator
For IntelliTouch to control and operate the chlorinator, rst enable
the chlorinator from the IntelliTouch Indoor Control Panel. If
the chlorinator control is enabled, the controls on the chlorinator
are disabled and can only be operated by IntelliTouch. When the
chlorinator control is disabled from IntelliTouch, the chlorinator
will still be running but must be controlled at the chlorinator
control panel.
Go to the Chlorinator screen.
To view the chlorination status and adjust the spa or pool
chlorination level:
• STATUS:Displays the current chlorinator
operating condition. If a problem occurs with the
chlorinator, an error codes will be displayed on
the status line.
• WATERSALTLEVEL:Displays how much
salt (in parts per million (ppm) is in the water.
See chlorinator manufacturer’s instructions for
recommended salt levels.
• SPA/POOL(0-100%): Displays the current
spa and pool chlorination output level from 0 to
100%.
• CONTROLENABLED:Press the button next to YES until NO is displayed to disable the
control of the chlorination interface from the Indoor Control Panel.
• Toenableordisablethechlorinator:Press the button next to CONTROLENABLEDand select YES
to allow IntelliTouch to control of the chlorinator. Select NO to disable IntelliTouch control. Press Save
when done to return to the Equipment screen.
Adjusting the Chlorine Output Level
In an effort to prevent over chlorination of the spa, the IntelliTouch system will automatically drop the
chlorine output levels to 1/20th of the current pool output when the spa is switched on. For example, if the
pool output level is set to 60%, when the spa is switched on, the chlorination level is reduced to 3%.
• Toadjustthespaorpoolchlorineoutputlevel:Press the button next to SPA/POOL. Press the (-) or
(+) button to decrease or increase the chlorine output level (from 0 to 100%) for the spa or pool water.
Press Save when done to return to the Equipment screen. Press Exitto return to the main screen.

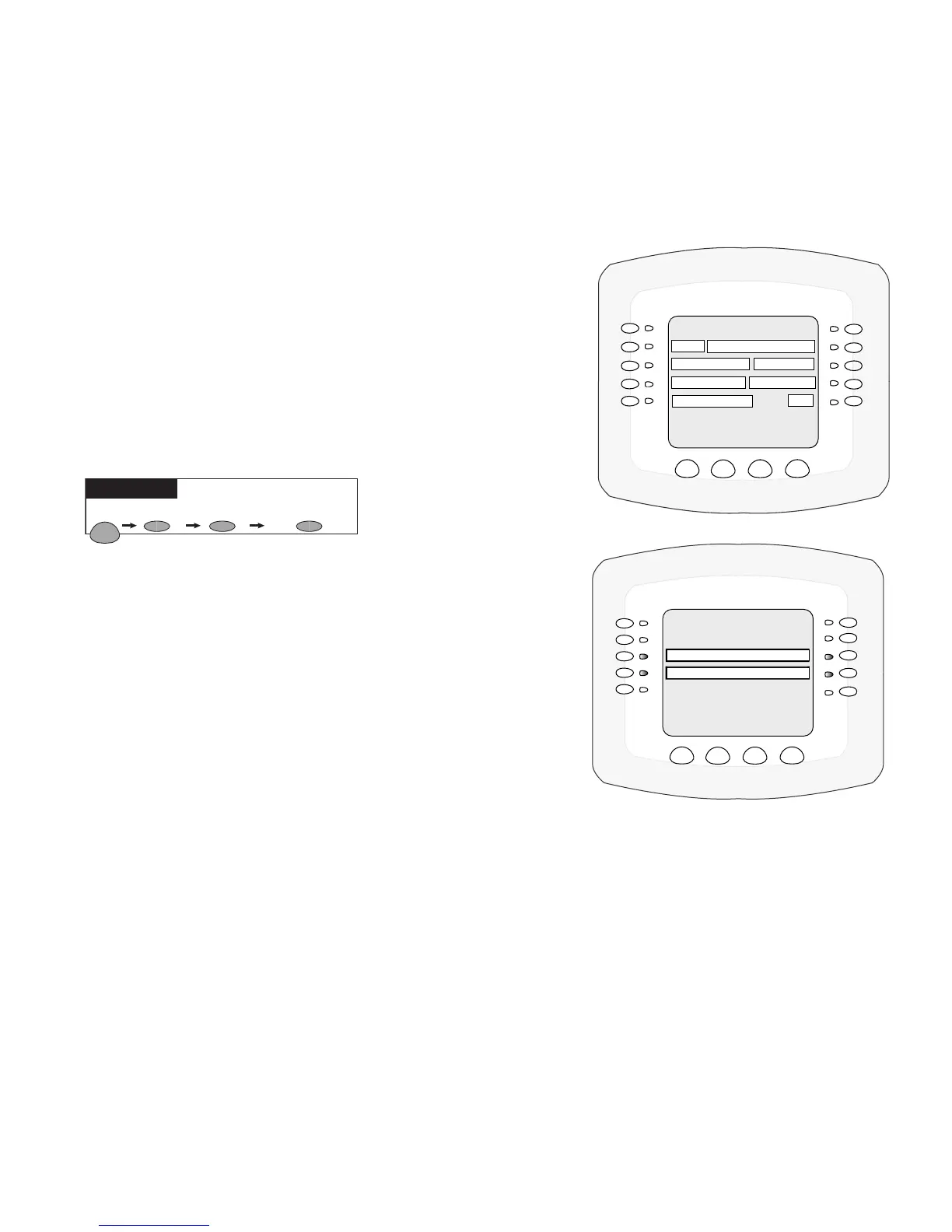

MENU SETUP EQUIPMENT CHLORINATOR
Getting There
MENU/SETP/EQUIP/INTELLICHLOR
BACK
EXIT
MODEL NAME HERE
STATUS
CONTROL ENABLED
WATER SALT LEVEL
CHLOR
OK - NO ERRORS
2900 PPM
YES
SUPER
SPA 0%
POOL 50%
MENU/SETUP/EQUIP/CHLOR/OUTPUT
BACK EXIT
- SPA 0% +
- POOL 50% +
Spa and Pool Chlorine Output Level
