Checking the Main Load Center (Continued)
8. Press each AUX button to switch on each circuit. Afx a label under the appropriate button identifying
the function and number of the circuit.
9. Repeat steps 4 through 9 for each Expansion Center. Note that Aux1 through Aux10 are used as
circuit names on the Expansion Centers. Do not duplicate these circuit names with the circuit names
of the main Load Center or Power Center.
10. The system is automatically congured if there is no more than one Load Center, one Expansion
Center, an Indoor Control Panel, and one Spa-Side Remote. If there are additional Expansion Centers
and/or controllers, then these need to be congured. For details about adding multiple Expansion
Centers and controllers, see “Assigning Additional Expansion Centers” on page 27.

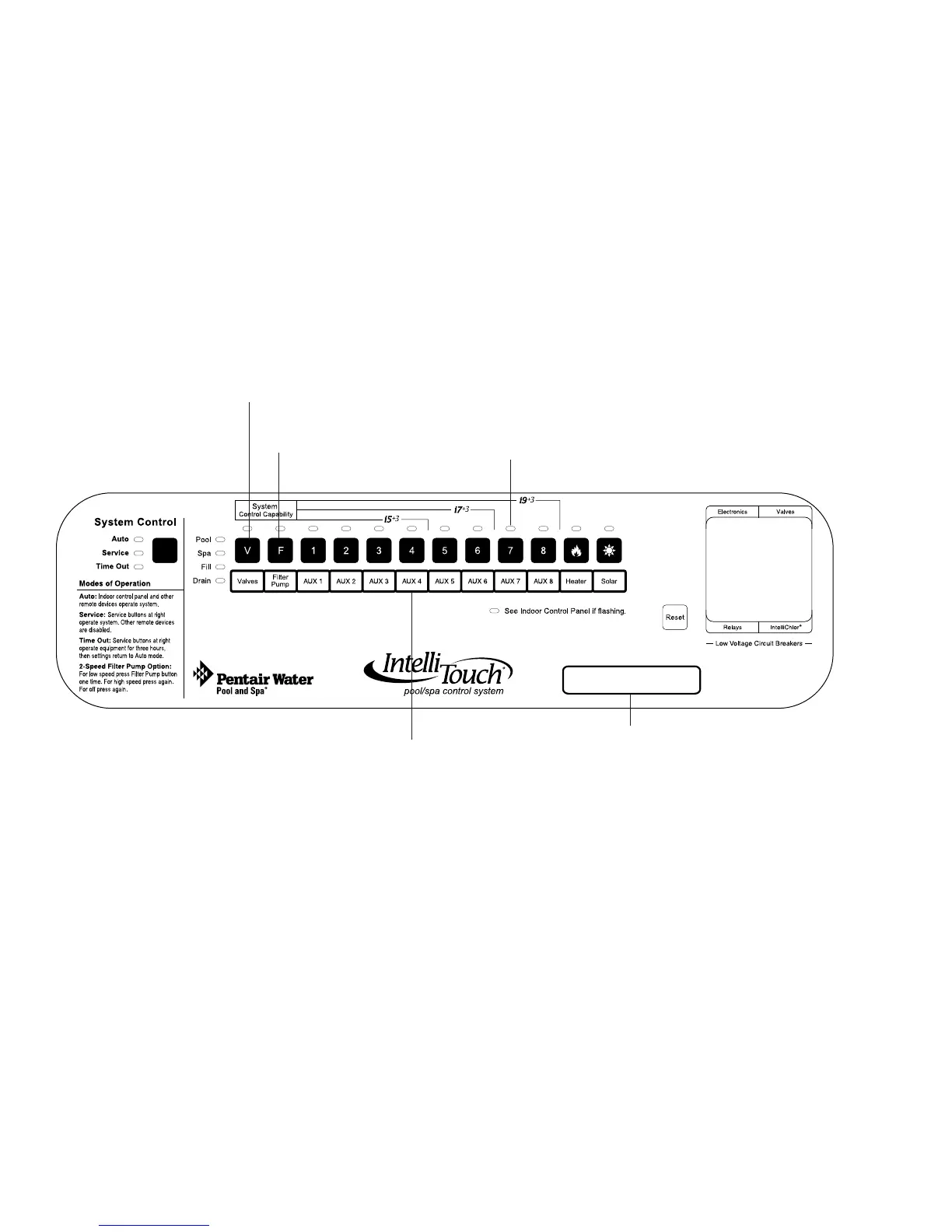

‘V” Valve button
“F” Filter Pump button
IntelliTouch system model
number
Label location for AUX circuit name
AUX circuits buttons/LEDs
