To set the IntelliFlo VSF+SVRS pump speed or ow rate to an assigned circuit name:
5.
 Adjustpumpspeed(RPM)orowrate(GPM):
Press the ASSIGN CUSTOM SPEEDS/FLOWS
button to access the pump circuit and speed screen.
Press the right side button next to the pump speed
(RPM) or ow rate (GPM). Use the DOWN and UP
lower buttons to adjust the speed (400-3450 RPM)
or ow rate (15-130 GPM).
6. Press the SAVE button to save the setting and return
to the previous screen.
7. DisplayRPMorGPM: Pump speed can be dened
on the screen as RPM or GPM (useful to determine
the daily pool lter cycle).
TogglebetweenRPMandGPM: To change the
display from RPM to GPM, press the ASSIGN
CUSTOM SPEEDS/FLOWS button to access the
pump circuit and speed screen. Press the button next
to a circuit that displays RPM (e.g 1110 RPM) (an
indicator arrow is displayed), then press the button
next to
RPM/GPM/PSI(the display shows the GPM
equivalent (e.g. 30 GPM).
8. AdjustingtheMAXIMUMPRESSURESETTINGS(PSI)whenusingGPM: Press the right
side button next to the current PSI setting. Press the DOWN and UP buttons to adjust the PSI
setting. Press the SAVE button to save the setting.
9. When nished, press the BACK button three times to return to the Equipment screen.

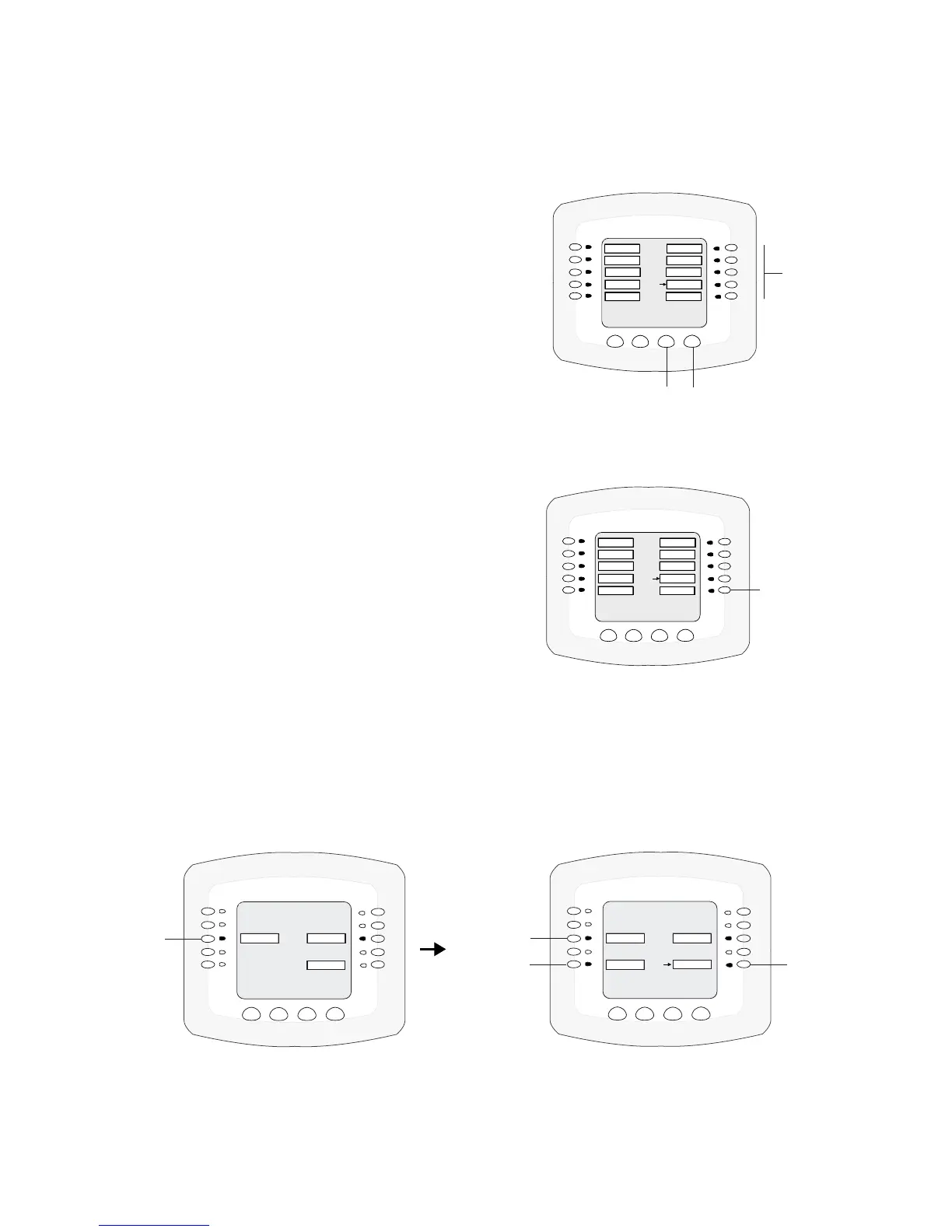

IntelliFlo VS 3050 and VSF+SVRS Pump Setup (Continued)
Assign custom speeds (RPM) or flow rates (GPM) - IntelliFlo VSF+SVRS pump only
BACK UP
PENTAIR IFLO VSF+SVRS #3
SETTINGS FOR NONE
RPM OR GPM
MAX PRESSURE IN GPM ONLY
1100 RPM
DISABLED
Press this
button to
change
RPM to
BACK UP
DISABLE PSI
PENTAIR IFLO VSF+SVRS #3
SETTINGS FOR NONE
RPM OR GPM
MAXIMUM PRESSURE SETTING
10 PSI
30 GPM
DOWN
SAVE
Press this
button to
change
RPM to
Press this
button
ENABLE (or
Disable)
PSI setting
Press this
button
to adjust
PSI (1-30)
setting
MENU/SETP/EQUIP/INTELLIFLO/ASSIGN
BACK DOWN
AUX 5 1500 RPM
AUX 6 2350 RPM
NONE 30 GPM
NEXT PAGE
AUX 4 750 RPM
SAVE
UP
RPM /GPM/PSI
Press
RPM/GPM/PSI
button
MENU/SETP/EQUIP/INTELLIFLO/ASSIGN
BACK DOWN
AUX 5 1500 RPM
AUX 6 2350 RPM
NONE 30 GPM
NEXT PAGE
AUX 4 750 RPM
SAVE
UP
RPM /GPM/PSI
Press right
side circuit
button to set
the pump
speeds
(RPM) or
flow rates
Down and Up buttons
(use to adjust pump speed)
