THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 6
Jun 1/03
1F6
6-00-00
3. Access And Inspection Provisions
CAUTION: BEFORE ENTERING THE AFT SECTION OF THE FUSELAGE, BE SURE THE
AIRPLANE IS SUPPORTED AT THE TAIL SKID.
The access and inspection provisions for the airplane are shown in Figure 3. The component to be
serviced or inspected through each opening is identified in the illustration. All access plates and panels
are secured by either metal fasteners or screws. To enter the aft section of the fuselage, remove the rear
trim panel.

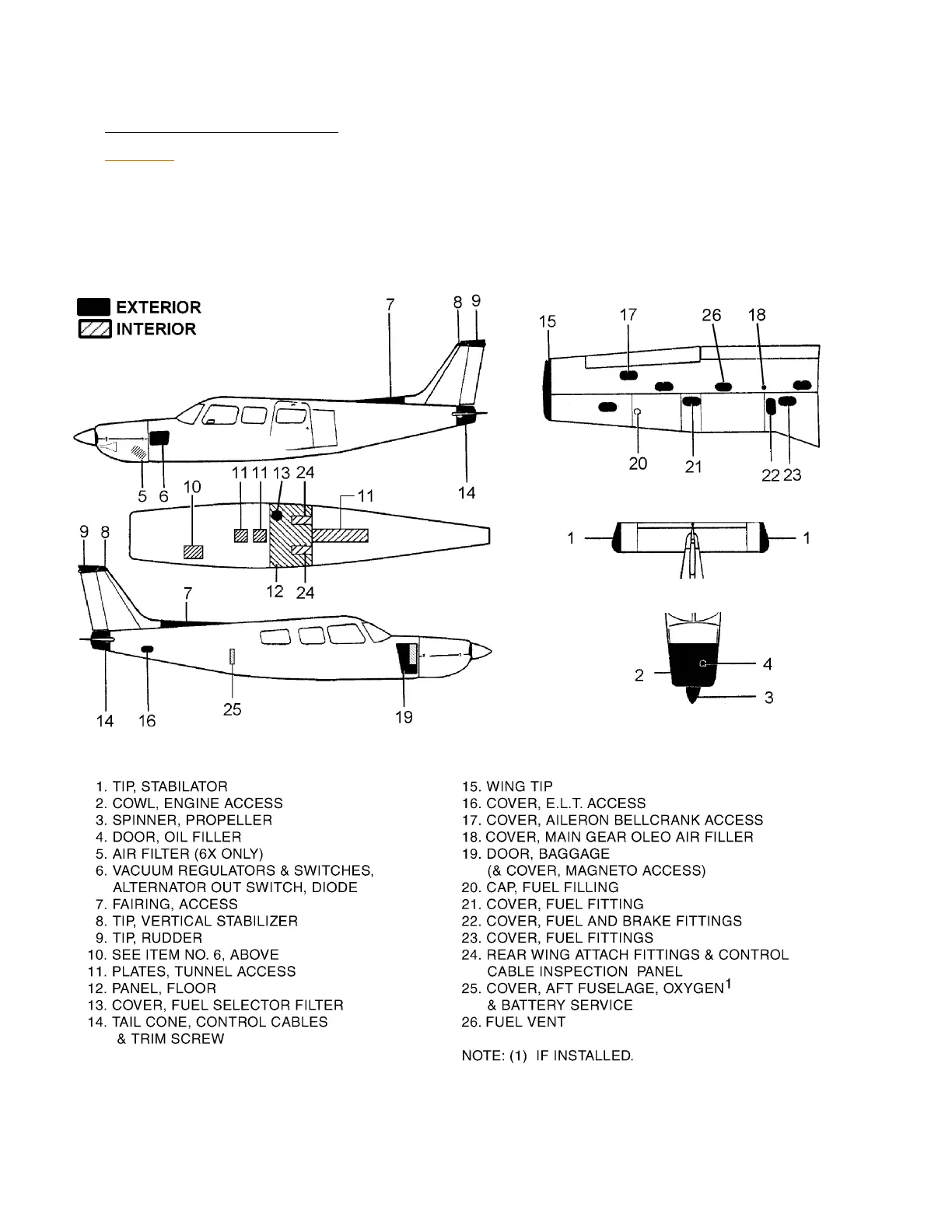

Access Plates and Panels
Figure 3
