THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 9
Feb 19/04
1K15
APPENDIX 1
FUEL SELECTOR
VALVE (REF.)
AN3-5A BOLT (4 REQ'D.)
NAS1149F0363P WASHER (8 REQ'D.)
NAS679A-3W NUT (4 REQ'D.)
CABLE CLAMP
(LEFT SHOWN, RIGHT OPPOSITE)
(SEE DETAIL A)
FUEL LINE (REF.)
AILERON
BALANCE
CABLE
.005 MIN. GAP BETWEEN CLAMP
HALVES AFTER TORQUING
TORQUE CLAMP BOLTS
TO 55 ± 5 IN. LBS.
CABLE
CLAMP
ROLL SERVO
DETAIL A
BRIDLE CABLE
LOOKING DOWN
AILERON
BALANCE
CABLE
12. Roll Servo (See Figures 2 and 3.)
The roll servo is mounted underneath the right aft facing passenger seat. A bridle cable and clamps
attach the servo capstan to the aileron balance cable.
A. Removal
(1) Remove the aft facing passenger seat.
(2) Remove adjacent carpet.
(3) Remove screws securing floor panel and remove panel.
(4) Disconnect autopilot harness.
(5) Remove nuts and bolts (2 ea.) securing each cable clamp (2) and remove cable clamps from
aileron balance cable and autopilot bridle cable.
(6) Remove nuts and bolts (4 ea.) and washers (8 ea.) securing roll servo to mounting bracket and
remove roll servo with attached bridle cable.

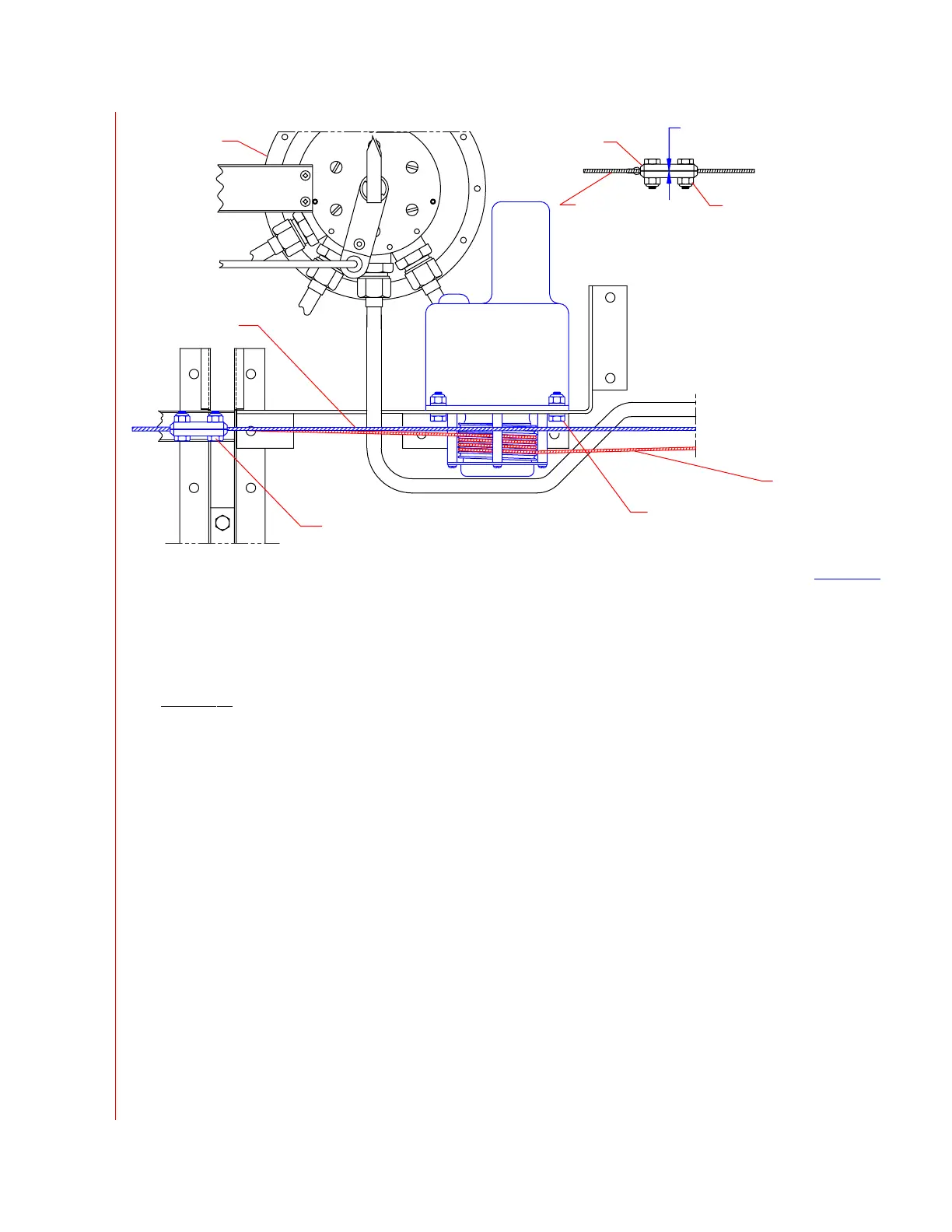

Roll Servo Installation
Figure 3
Eff
ectivity
3232003 & up
3255001 & up
