THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 1
Jun 1/03
4G5
56-20-00

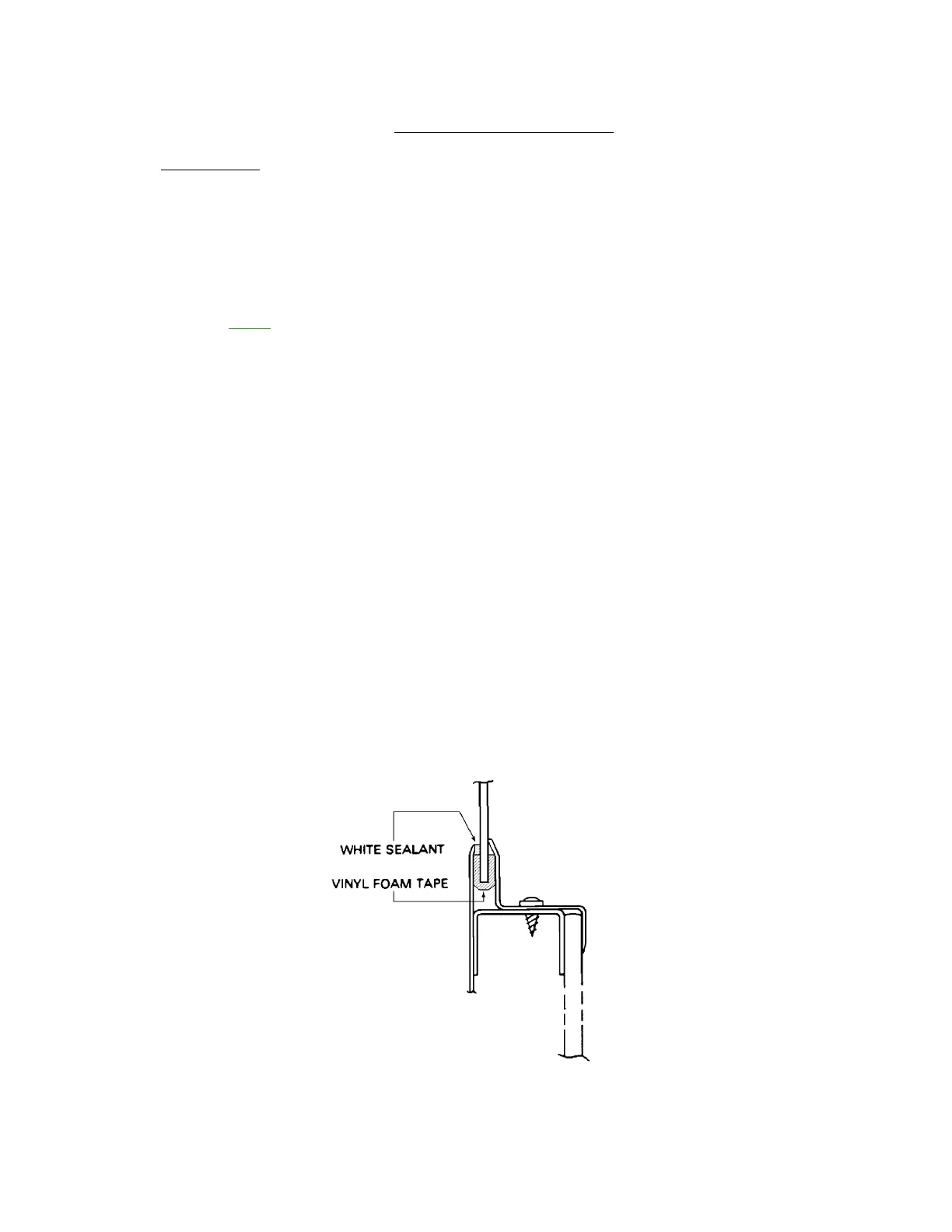

Side Window Installation
Figure 1
PASSENGER COMPAR
TMENT
Side Windows (Refer to Figure 1.)
These airplanes are equipped with single pane side windows.
A. Removal
(1) Remove the molding and retainer from around the window by removing attaching screws.
(2) Carefully remove the damaged window from the frame.
(3) Remove old tape and sealer from window frame and molding.
NOTE: A damaged window should be saved to provide a pattern for shaping the new
window.
B. Installation
(1) Match new window to old. If necessary, cut or grind the new window to the same dimensions.
(2) Apply 1/8 in. by 1 in. vinyl foam tape, Norton V510 or equivilent (i.e. - Tape - Vinyl Foam,
Type 2; 91-10-00, Consumable Materials), around entire edge of window.
(3) Insert the window into the frame, install the retainer moldings and attachement screws, but do
not tighten. Take care not to damage or dislocate the vinyl foam tape.
(4) Apply polyurethane, urethane, acrylic, or polysulfide sealant (i.e. - Sealant - Window and
Airframe; 91-10-00, Consumable Materials), completely around the outer surface of the
window at all attachment flanges as indicated in Figure 1. Force the sealant between the
mating parts, which may be separated slightly using a soft wooden wedge or a tongue
depressor. Force sealant deep into the gap. Take care to avoid bending or scratching aluminum
or window surfaces. Joints should be completely filled, and blended smoothly with adjacent
surfaces after clean-up.
(5) Tighten attachment screws until vinyl foam tape is compressed approximately 25 percent.
(6) Remove excess sealant from window areas using rags, disposable wipers or plastic scrapers.
A tool made of acrylic sheet with a wedged end (.25 inch thick and 1.5 inch wide) can be
fabricated and used. Tirpolene solvent or Apperson solvent No. 120 may be used.to clean
polysulfide sealants.
