THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 6
Jun 1/03
3F6
32-10-00
3. Main Gear Str
ut
and Wheel Fairings (See Figure 3.)
A. Removal
(1) Wheel Fairing
(a) Remove the bolt and washer securing the wheel fairing to the wheel fairing support
assembly.
(b) Remove the two screws on the top of the wheel fairing, outboard of the landing gear
fairing.
(c) Loosen the eleven 1/4 turn fasteners securing the wheel fairing shell to the wheel fairing
panel and remove the shell.
(d) If removal of the wheel fairing panel is desired, remove the wheel fairing panel attachment
bolt. Remove the panel.
(2) Strut Fairing
(a) Remove wheel fairing as described above.
(b) Loosen the eight (four inboard, four outboard) 1/4 turn fasteners which secure the forward
fairing half to the aft fairing half.
(c) Remove the six screws and washers securing the forward fairing half to the wing. Remove
the forward fairing half.
(d) Remove the seven screws and washers securing the aft fairing half to the wing. Remove
the aft fairing half.
B. Installation
Reverse the removal procedure.

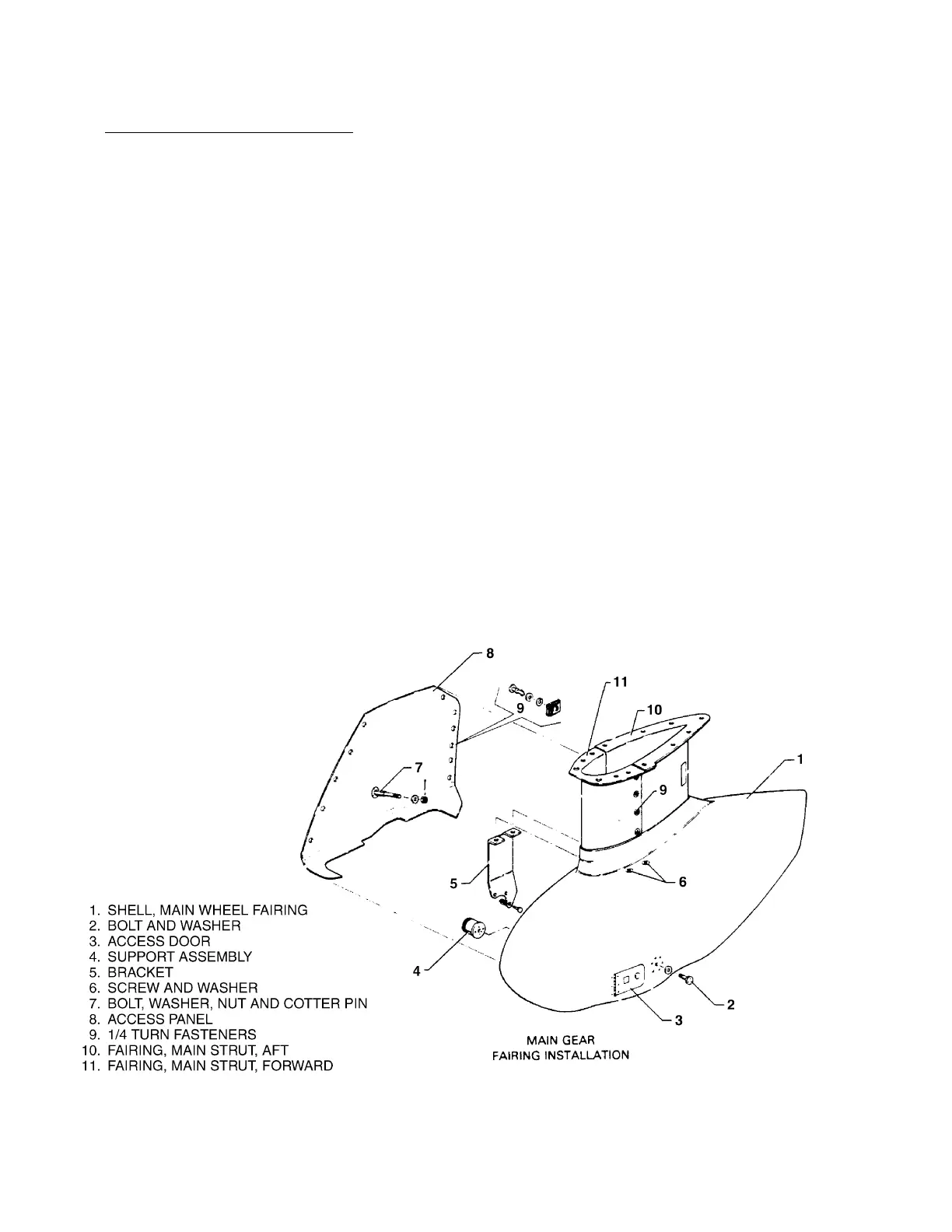

Main Gear Strut and Wheel Fairings
Figure 3
