THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 39
Jun 1/03
2E3
21-50-00

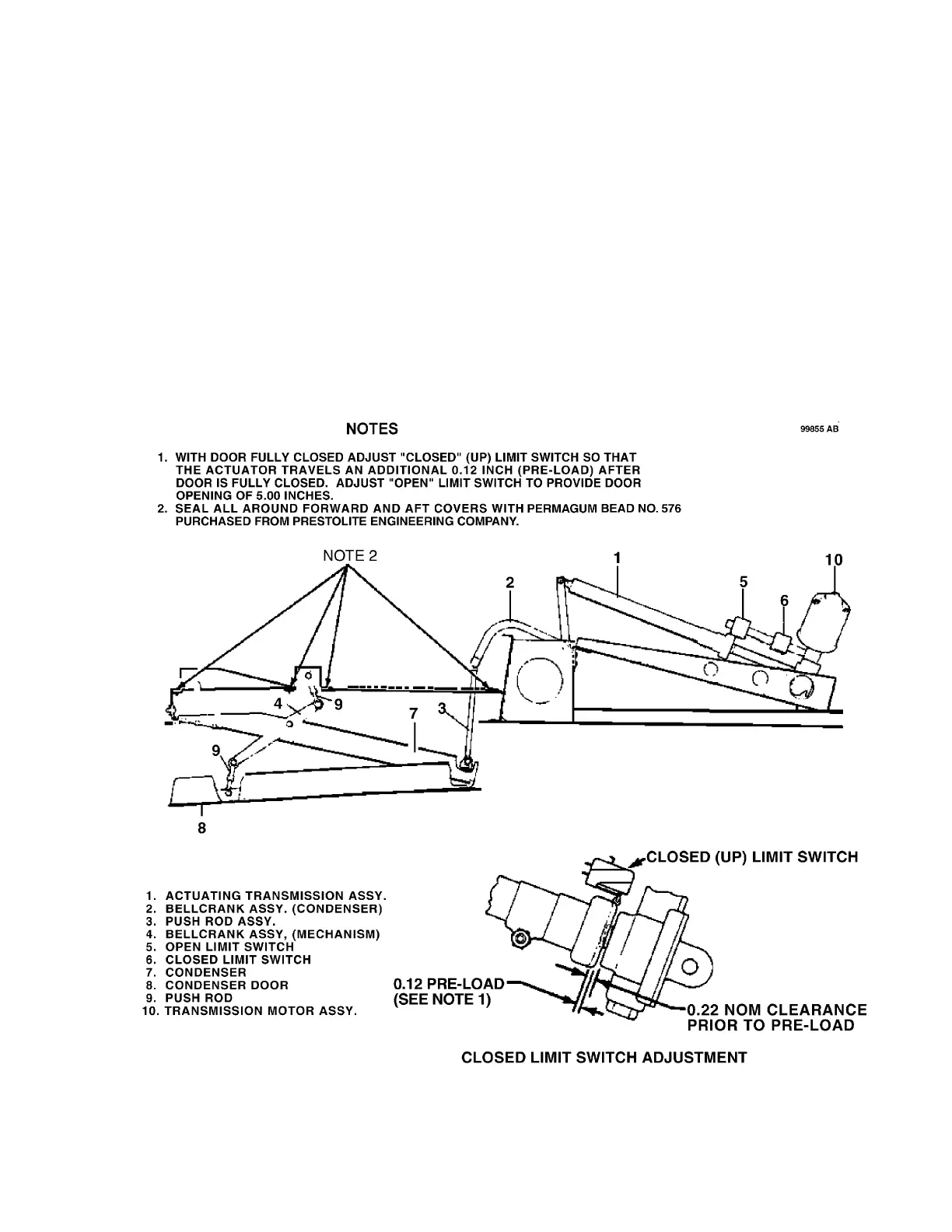

Condenser Air Scoop Installation
Figure 15
(4) Condenser Assembly Rigging Instructions (See Figure 15.)
Condenser assembly is actuated by an electric motor through bellcranks, push rods, and limit
switches. Condenser door must fit flush with fuselage skin, and with increased force along
forward edge. Use the following steps:
(a) Adjust open limit switch to open condenser door 5.00 ± 0.50 inches measured from
leading edge of door to fuselage skin.
(b) Adjust side push rods so a vertically measured gap of 0.16 inch exists along trailing edge
of door the instant forward edge of door is flush with fuselage skin.
(c) Fully close door and adjust CLOSED limit switch so actuator travels an additional 0.12
inch with door fully closed - this is necessary to preload mechanism, see Figure 15.
(d) Cycle assembly several times. Verify proper operation without binding.
