THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 1
Jun 1/03
3H1
33-40-00
EXTERIOR
1. Landing Light (See Figure 1.)
The landing light is a single nose gear light secured to the nose gear strut housing with hose clamps. A
single, two-position, rocker-type, switch in the overhead switch panel (wired through the 15 amp
LANDING LIGHT circuit breaker) controls the light.
A. Removal
(1) Remove screws (4) securing retainer ring/bezel and shade and remove retainer ring/bezel and
shade.
(2) Pull lamp out and remove electrical leads connected to it. (Make note of wire placement on
lamp to facilitate installation.)
B. Installation
(1) Reconnect electrical leads and insert lamp into position.
(2) Position shade over upper portion of lamp, capture shade with retainer ring/bezel and secure
with screws (4).
C. Adjustment
With tires and oleo struts properly serviced, aim landing light as shown in Figure 2.

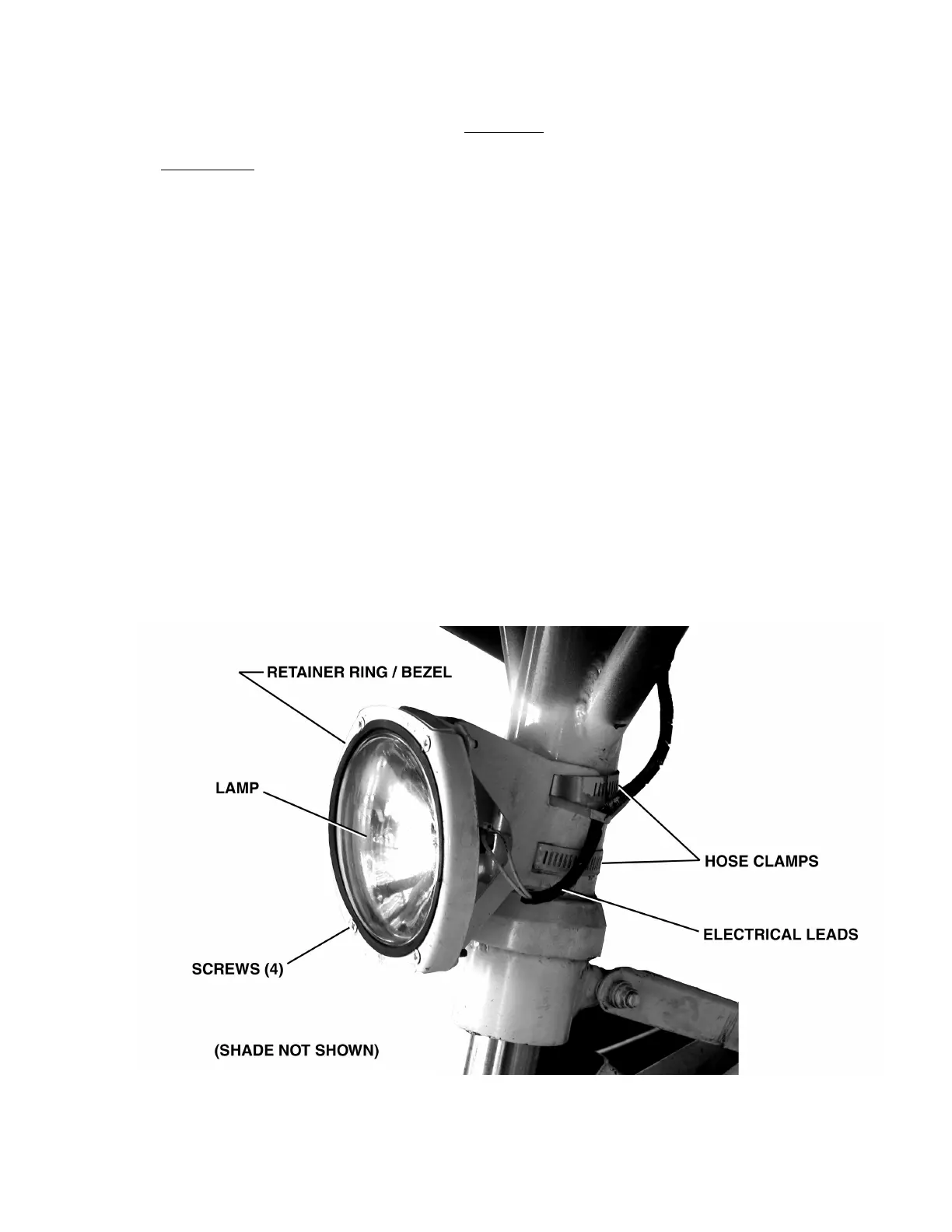

Landing Light Installation
Figure 1
