THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 1
Jun 1/03
1G1
8-10-00
WEIGHING
The airplane may be weighed by the following procedure (see Figure 1):
A. Position a scale and ramp in front of each of the three wheels.
B. Secure the scales from rolling forward and tow the airplane up onto the scales. (Refer to Towing,
9-10-00.)
C. Remove the ramp so as not to interfere with the scales.
D. If the airplane is to be weighed for weight and balance computations, level the airplane.

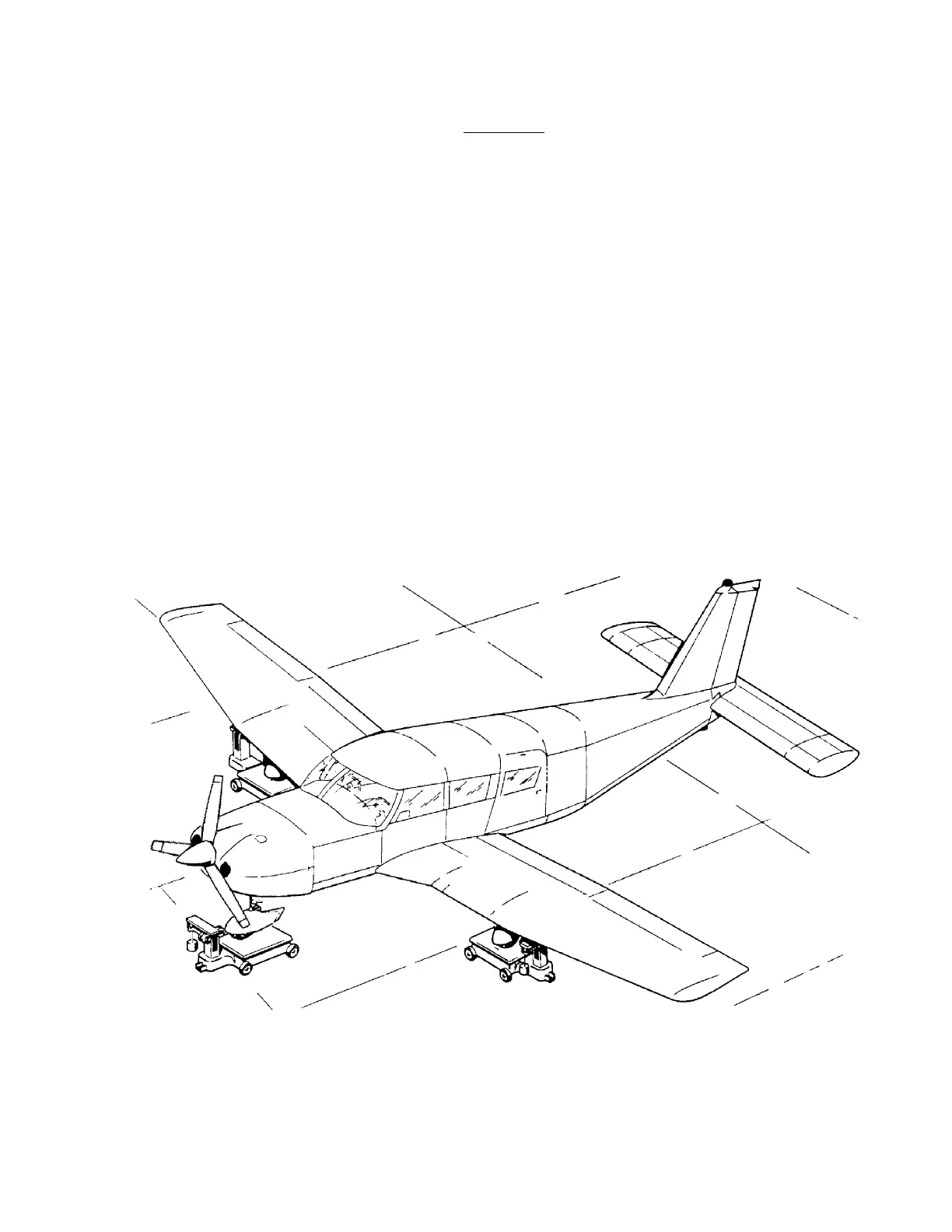

Weighing Airplane
Figure 1
