THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 8
Jun 1/03
3F16
32-20-00
3. Nose Gear Wheel F
air
ing See Figure 5.)
A. Removal
(1) Remove the four bolts (two on each side) securing the nose gear fairing to the strut assembly.
(2) Remove the screws securing the forward and aft fairing cover assemblies to the nose gear
fairing.
(3 Slide the fairing up on the strut assembly to allow access to the nose wheel assembly.
(4) Remove nose wheel as described in 32-40-00.
(5) Turn the fairing sideways and slide down and off of fork assembly.
B. Installation
Reverse the removal procedure.

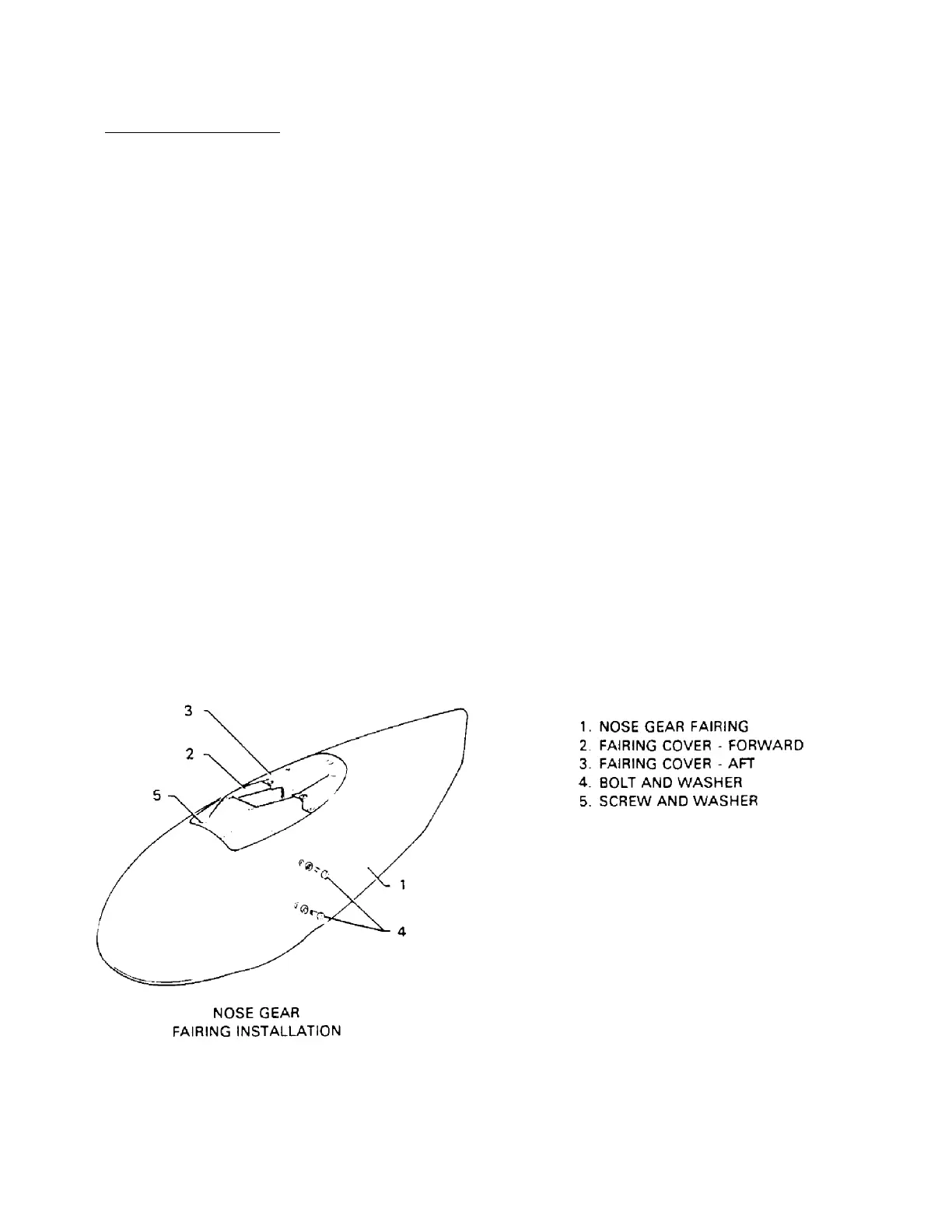

Nose Gear Strut and Wheel Fairings
Figure 5
