THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 7
Jun 1/03
3F15
32-20-00

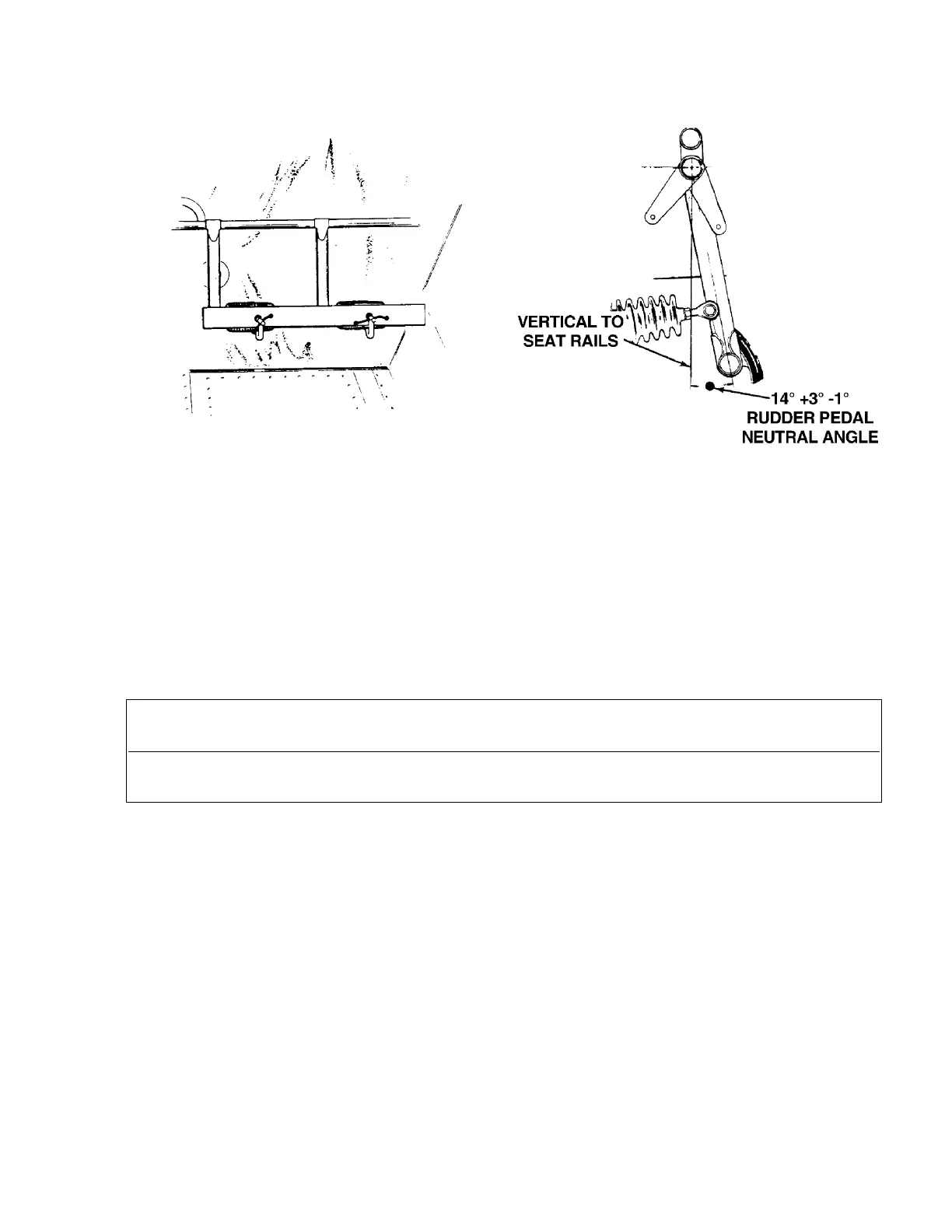

Clamping Rudder Pedals
Figure 3
Rudder Pedals at Neutral
Figure 4
CHART 1
NOSE GEAR ALIGNMENT TOLERANCES
Rudder Pedal Neutral Angle 14 degrees + 3°
(Aft of Vertical) - 1°
Nose Wheel Travel 29 degrees left minimum
29 degrees right minimum
