THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 2
Jun 1/03
4E14
52-10-00
3. Door Latch Mechanisms
A. Forward Cabin Door - Upper - Adjustment (Refer to Figure 1.)
CAUTION: DO NOT LUBRICATE LOCK PIN / LOCK PIN TEFLON GUIDE BEARING.
(1) Remove the door trim upholstery by removing the attachment screws.
(2) Remove upper cabin door access cover on inside of door to gain access to the upper door
latch assembly.
(3) Remove lockwire from nut at aft end of pin assembly.
(4) Back nut off from lock plate.
(5) Move lock plate to disengage from aft pin.
(6) Adjust pin so that, in extended position, rigging groove on pin aligns with forward face of pin
receptacle on aft door frame.
(7) Engage lock plate, making sure safety wire tab on lock plate is facing inboard.
(8) Tighten nut.
(9) Install safety wire.

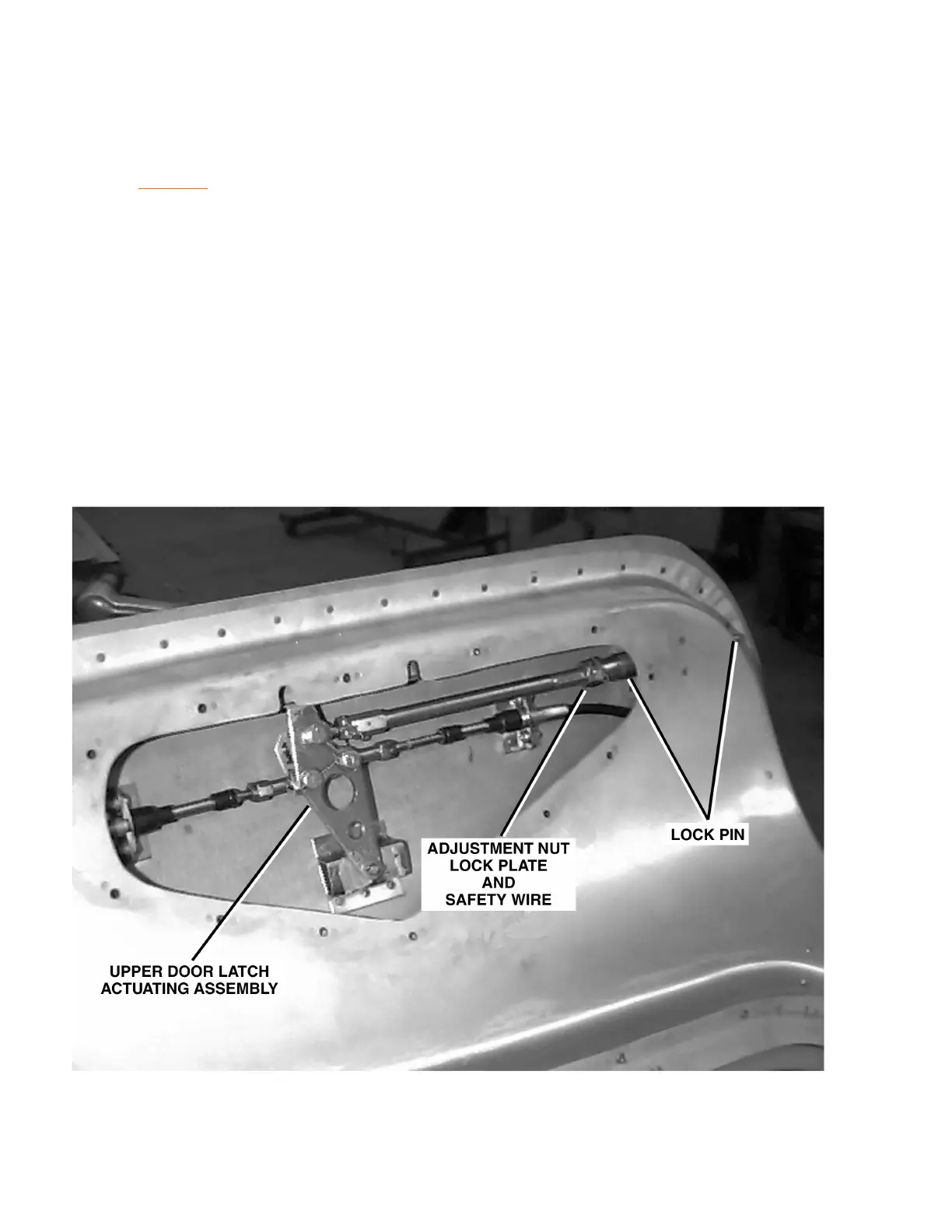

Fwd Cabin Door Latch Installation
Figure 1 (Sheet 1 of 2)
