P22
A
D
B
C
F
1
2
5K
L5W20N
L5T20
L5S20
L5U20
PANEL/SWITCH
LIGHTS
L7A20
7.5A
CB-24
L5V20
ELECTRICAL BUS
JB8
L5F20
HTR SW
LANDING
GEAR
ELT BLOWER
OXY/DME
(OPT)
DGALT
A/S
L3G20
L3G20N
1
2
COMPASS
INSTR.
PANEL
POST
LIGHTS
DIMMER
ASSY.
101849 25.0 NEW
THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 7
Feb 19/04
5J13
91-33-10

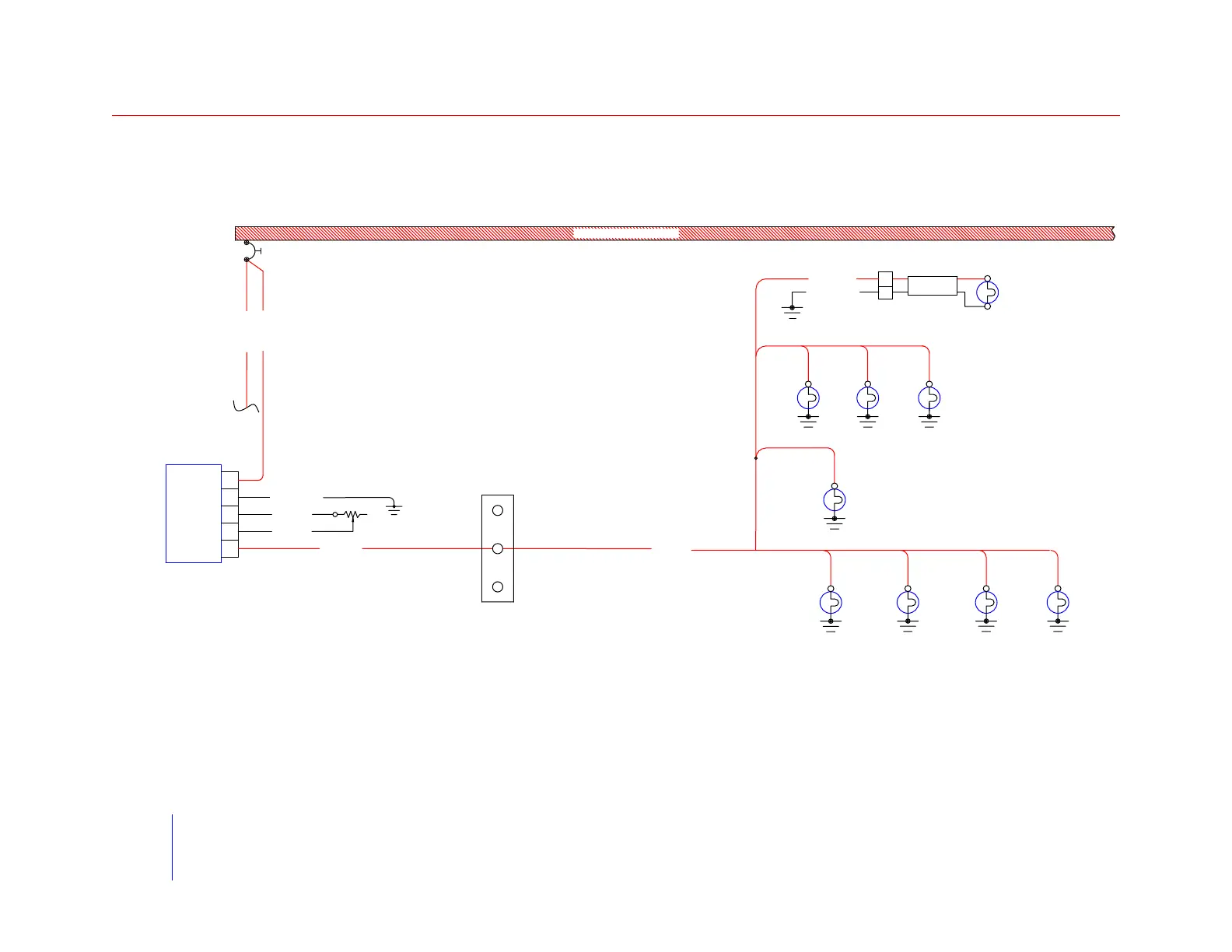

Panel Lights
Figure 5 (Sheet 2 of 2)
Effectivity
with Avidyne Entegra option
3232014 & up
3255015 & up
