Piper 6X User Manual

13 14
8273626 9
Q5J22-WH/BL
Q5F22-WH/BL
EXC.
A
Q5V20N
SIG.(-)
SIG.(+)
OIL
PRESSURE
SENSOR
D
B
P413
Q6C20
Q5B20
Q5J22-WHT
Q5F22-WHT
P12
OIL
TEMP
SENSOR
P239
A
B
T
OIL PRESS SIG.(+)
Q5R20
P901
OIL TEMP SIG.(+) OIL TEMP SIG.(-) OIL PRESS SIG.(-) SHIELD
R12
DATA ACQUISITION UNIT
101849 4.0 NEW
TO
91-77-40,
FIGURE 6
THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 2
Feb 19/04
5K4
91-77-40

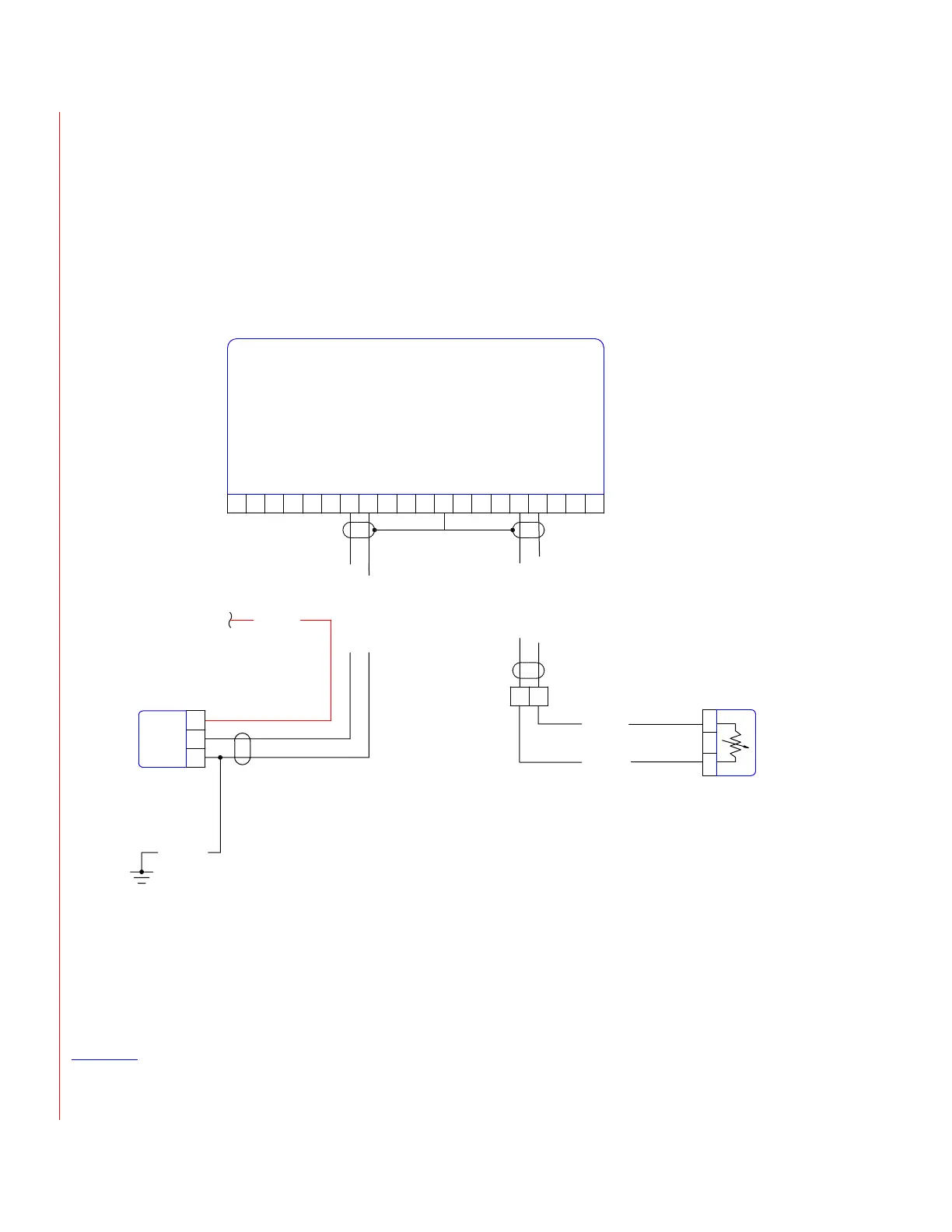

Oil Pressure / Oil Temperature
Figure 2
Eff
ectivity
with Avidyne Entegra option
3232014 & up
3255015 & up
