THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 13
Feb 19/04
1K19
APPENDIX 1
LOOKING INBOARD
AT TRIM SERVO INSTALLATION
UP
BULKHEAD F.S. 187.96
FWD
BAGGAGE COMPARTMENT
FLOOR (REF.)
BOLT, AN3-5A (3 REQ'D.)
WASHER, NAS1149F0363P (6 REQ'D.)
NUT, NAS679A-3W (3 REQ'D.)
LEFT STABILATOR TRIM CABLE
TRIM SERVO
TRIM SERVO
SEE DETAIL
FOR BUILD-UP
CABLE GUARDS
IDLER PULLEY
IDLER PULLEY BUILDUP DETAIL
BOLT, AN3-14A
STAR WASHER,
MS35333-36 (6 REQ'D.)
WASHER, NAS1149C0632R
MOUNTING PLATE
SPACER
BRACKET (REF.)
WASHER, NAS1149F0363P
WASHER, NAS1149C0632R
SCREW
TRIM SERVO BASEPLATE (REF.)
WASHER, NAS1149F0363P
NUT, NAS679A-3W
.15
LEFT STABILATOR TRIM CABLE
LOOKING DOWN AT TRIM SERVO INSTALLATION
RIGHT
FWD

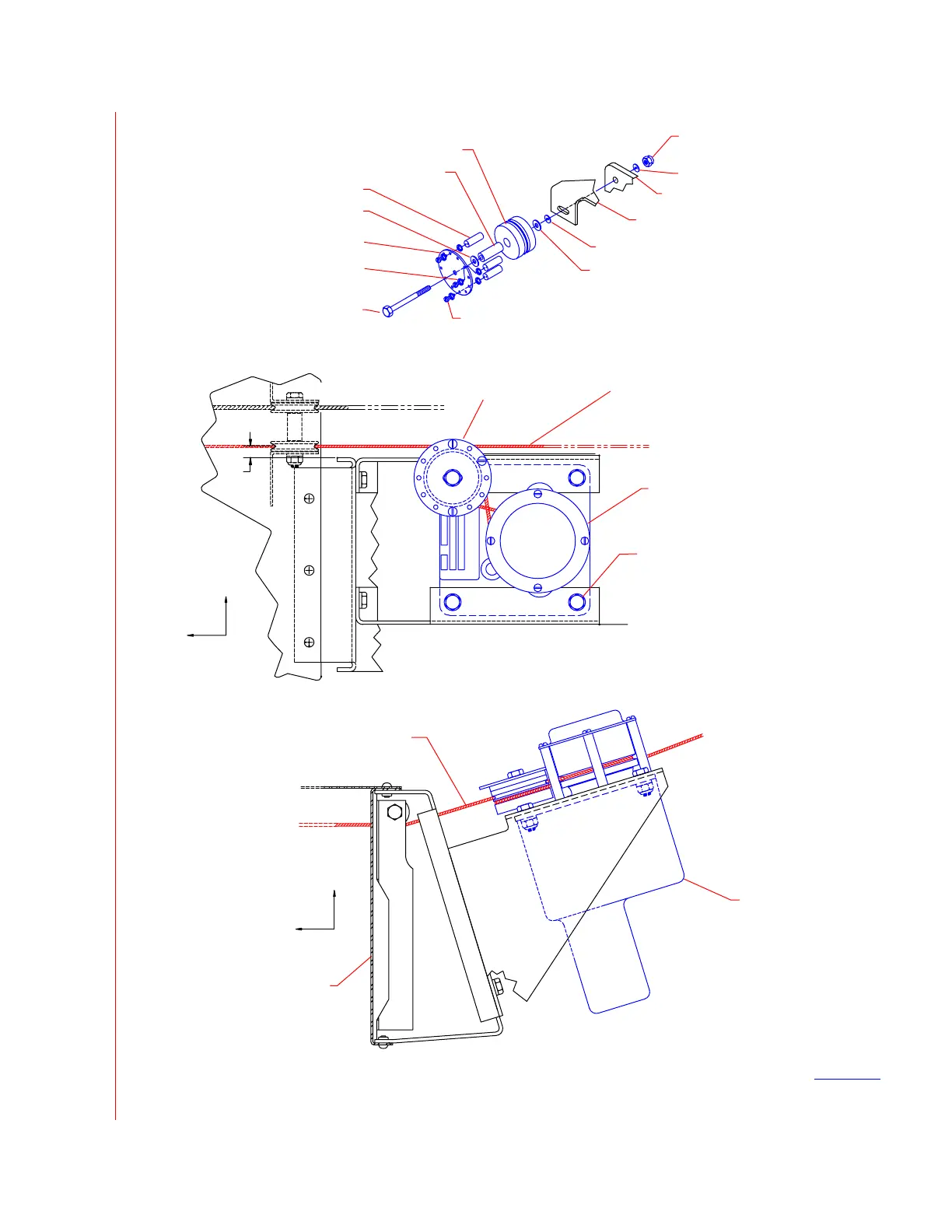

Trim Servo Installation
Figure 5
Effectivity
3232003 & up
3255001 & up
