THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 15
Feb 19/04
1K21
APPENDIX 1
AFT
UP
STABILATOR MASS
BALANCE WEIGHT
(REF.)
PITCH
SERVO
OUTBD
LEFT
UP
SEE DETAIL
FOR BUILD-UP
PULLEY BUILD-UP DETAIL
(CAPSTAN COVER AND CABLE
GUARDS REMOVED FOR CLARITY)
AFT
UP
WRAP LONG END 405Ëš AND
OVER PULLEY.
WRAP SHORT END
360Ëš AND FWD.
BRACKET
NAS1149F0363P WASHER
COTTER PIN
BOLT AN3-12A
PULLEY
SPACER
SPACER
BRACKET
(REF.)
NAS679A3W NUT
WASHER
BRIDLE CABLE
AN3-5A BOLT (4 REQD)
NAS1149F0363P WASHER (8 REQD)
NAS679A3W NUT (4 REQD)
CABLE CLAMP
COTTER PIN
LOOKING AFT OF BULKHEAD F.S. 259.00
LOOKING OUTBOARD
CABLE CLAMP
AN525-832R SCREW (2 REQD)
NAS1149FN832P WASHER (2 REQD)
MS21042-08 NUT (2 REQD)
BULKHEAD - F.S. 259.00
LOWER STABILATOR CABLE
PITCH
SERVO
POSITION OF BRIDLE
CABLE CENTERBALL
WITH STABILATOR
CONTROLS IN
NEUTRAL POSITION.
DEPRESS CENTERBALL
TO BOTTOM OF HOLE
AND TIGHTEN SET SCREW.
UPPER STABILATOR CABLE
WRAPPING CAPSTAN

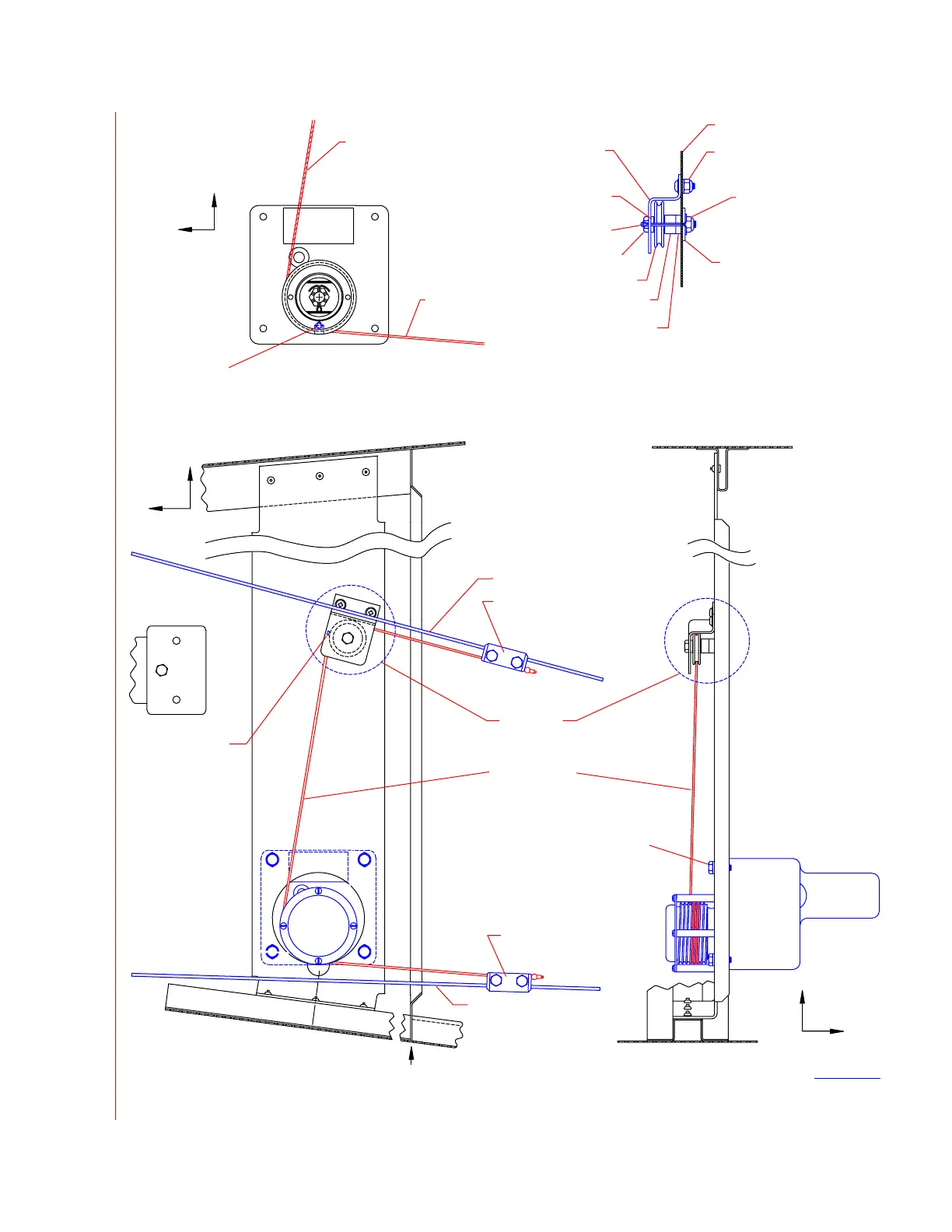

Pitch Servo Installation
Figure 6
Effectivity
3232003 & up
3255001 & up
