THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 17
Feb 19/04
1K23
APPENDIX 1
S-TEC TOOL
(SEE PARTS CATALOG)
SCREW (4 REQ'D.)
CABLE GUARD (4 REQ'D.)
SHIM WASHER (MIN. 1 REQ'D.)
CAN BE USED IN ANY COMBINATION TO
ALIGN COTTER PIN WITH SHAFT HOLE
SERVO
CAPSTAN COVER
TORQUE WRENCH
CASTLE NUT
AN320-5
COTTER PIN
MS24665-134
WASHER (4 REQ'D.)
AN936-A4
TENSION WASHERS
S-TEC P/N 1253 (.032, RED) AND/OR
S-TEC P/N 1253-1 (.040, BLUE)
AS REQ'D. - SEE CHART 1.

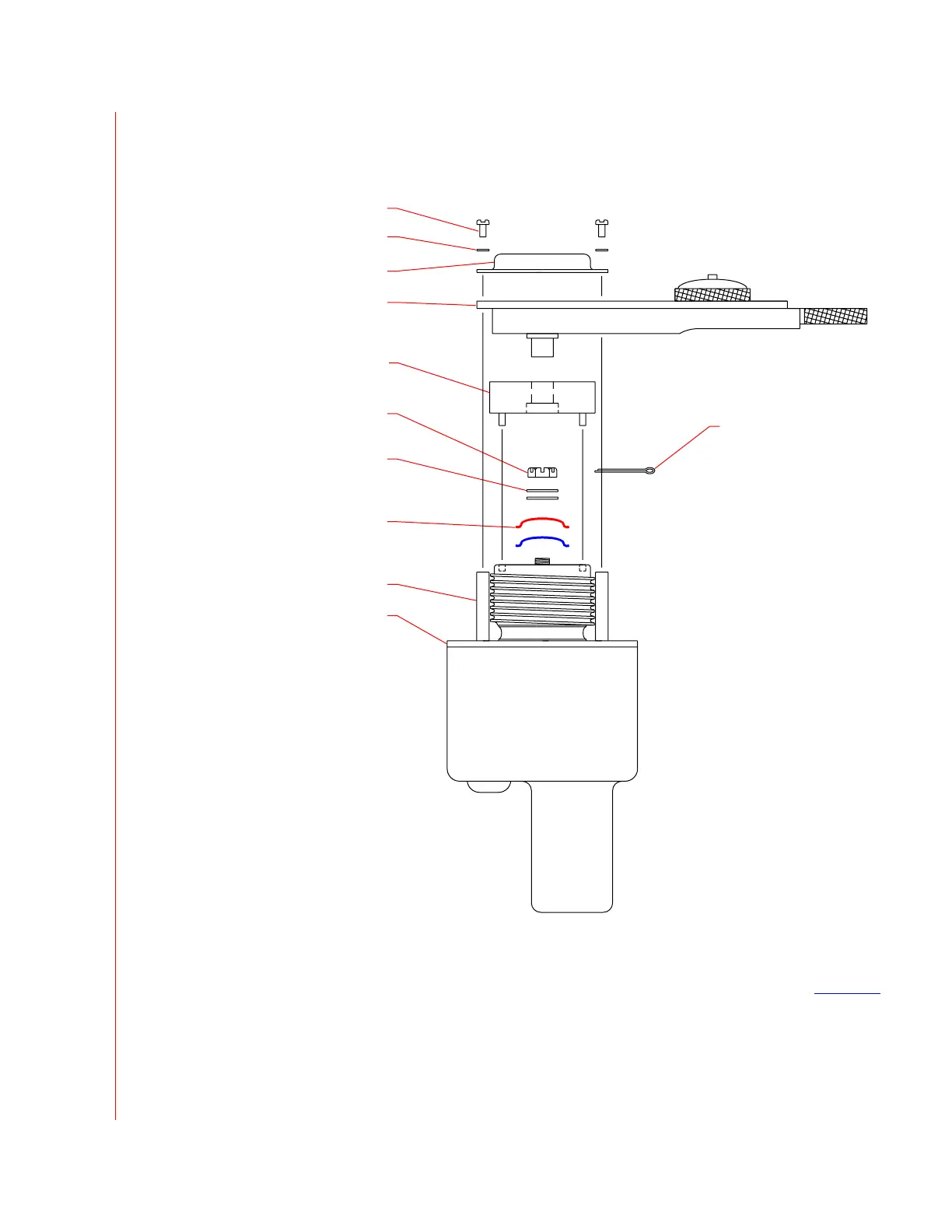

Servo Clutch Torque Adjustment
Figure 7
Effectivity
3232003 & up
3255001 & up
